0-2
1650K

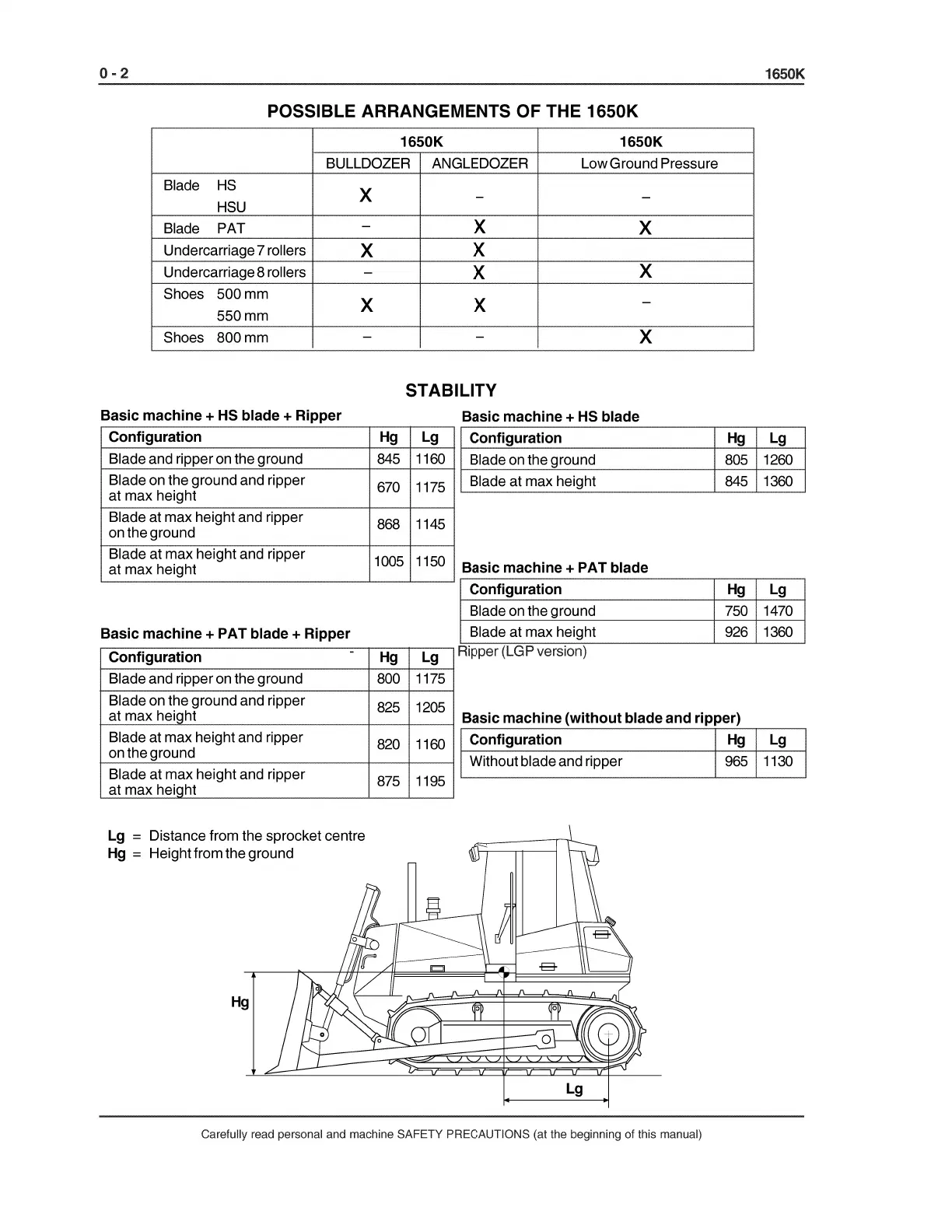

POSSIBLE ARRANGEMENTS OF THE 1650K
1650K 1650K
BULLDOZER ANGLEDOZER Low Ground Pressure
Blade HS
X
-
-
HSU
Blade PAT
-
X
X
Undercarriage 7 rollers
X
X
Undercarriage 8 rollers
-
X
X
Shoes 500mm
X X
-
550mm
Shoes 800mm
- -
X
STABILITY
Basic machine + HS blade + Ripper
Basic
machine+ HS blade
Configuration Hg Lg
Configuration Hg Lg
Blade and ripper on the ground
845
1160
Blade on the ground 805 1260
Blade on the ground and ripper
670 1175
Blade at max height
845
1360
at
max height
Blade at
max height and ripper
868
1145
on the ground
Blade at
max height and ripper
1005
at
max height
1150
Basic
machine+ PAT blade
Configuration
Hg Lg
Blade on the ground 750 1470
Basic
machine+ PAT blade+ Ripper
Blade at max height 926 1360
Configuration Hg
Lg
Ripper (LGP version)
Blade and ripper on the ground 800 1175
Blade on the ground and ripper
825 1205
at
max hei ht
Basic machine (without blade and ripper)
Blade at
max height and ripper
820 1160
on the ground
Blade at
max height and ripper
875 1195
at
max hei ht
Configuration
Hg Lg
Without blade and ripper 965 1130
Lg=
Distance from the sprocket centre
Hg=
Height from the ground
Hg
Lg
Carefully read personal and machine SAFETY PRECAUTIONS (at the beginning of this manual)
