1650K
0-5

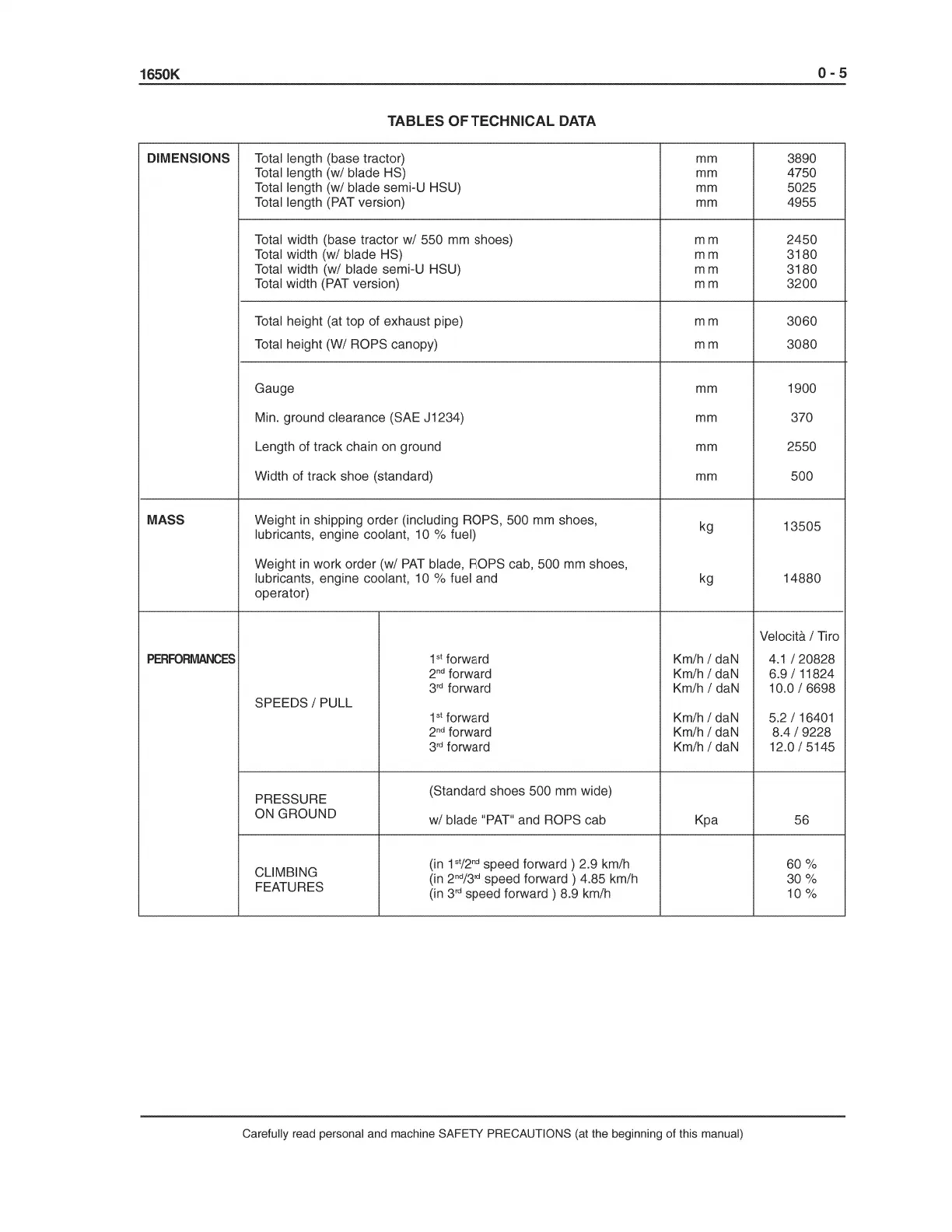

TABLES
OF
TECHNICAL DATA
DIMENSIONS Total length (base tractor) mm 3890
Total length (w/ blade HS) mm 4750
Total length (w/ blade semi-U HSU)
mm 5025
Total length (PAT version) mm 4955
Total width (base tractor
w/
550 mm shoes)
mm
2450
Total width (w/ blade HS)
mm
3180
Total width (w/ blade semi-U HSU)
mm
3180
Total width (PAT version)
mm
3200
Total height (at top of exhaust pipe)
mm
3060
Total height (W/ ROPS canopy)
mm
3080
Gauge
mm 1900
Min. ground clearance (SAE J1234) mm 370
Length of track chain on ground mm 2550
Width of track shoe (standard) mm
500
MASS Weight in shipping order (including ROPS, 500 mm shoes,
kg
13505
lubricants, engine coolant, 10 % fuel)
Weight
in
work order (w/
PAT
blade, ROPS cab, 500 mm shoes,
lubricants, engine coolant, 10 % fuel and kg
14880
operator)
Velocita / Tiro
PERFORMANCES
1
st
forward
Km/h/
daN
4.1
/ 20828
2
nd
forward
Km/h/
daN 6.9 I 11824
3
rd
forward
Km/h/
daN 10.0 I 6698
SPEEDS/
PULL
1
st
forward
Km/h/
daN 5.2 I 16401
2
nd
forward
Km/h/
daN 8.4 I 9228
3
rd
forward
Km/h/
daN 12.0 I 5145
PRESSURE
(Standard shoes 500 mm wide)
ON GROUND
w/
blade "PAT" and ROPS cab
Kpa
56
CLIMBING
(in 1
St/2
nd
speed forward ) 2.9 km/h
60%
FEATURES
(in 2
nd
/3
rd
speed forward ) 4.85 km/h
30%
(in 3
rd
speed forward ) 8.9 km/h 10 %
Carefully read personal and machine SAFETY PRECAUTIONS (at the beginning of this manual)
