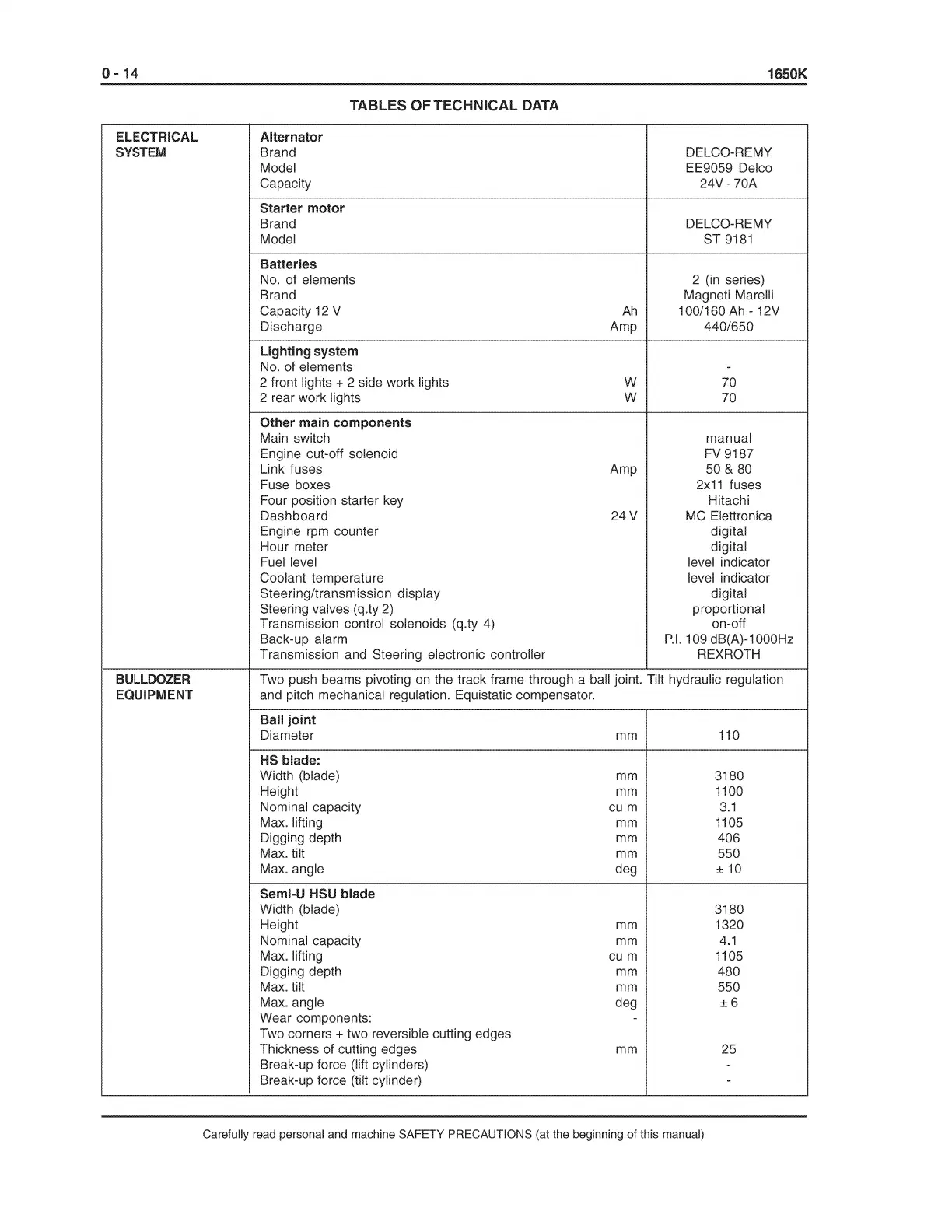

0-14
1650K
TABLES
OF
TECHNICAL DATA
ELECTRICAL Alternator
SYSTEM Brand
DELCO-REMY
Model EE9059 Delco
Capacity
24V-70A
Starter motor
Brand
DELCO-REMY
Model
ST9181
Batteries
No. of elements 2 (in series)
Brand Magneti Marelli
Capacity 12 V
Ah
1 00/160
Ah
- 12V
Discharge
Amp
440/650
Lighting system
No. of elements
-
2 front lights + 2 side work lights w 70
2 rear work lights
w 70
Other main components
Main switch
manual
Engine cut-off solenoid FV 9187
Link fuses Amp
50 & 80
Fuse boxes
2x11
fuses
Four position starter key Hitachi
Dashboard
24V
MC Elettronica
Engine rpm counter digital
Hour meter digital
Fuel level level indicator
Coolant temperature level indicator
Steering/transmission display digital
Steering valves (q.ty 2) proportional
Transmission control solenoids (q.ty 4) on-off
Back-up alarm
P.I.
109 dB(A)-1000Hz
Transmission and Steering electronic controller REXROTH
BULLDOZER Two push beams pivoting on the track frame through a ball joint. Tilt hydraulic regulation
EQUIPMENT and pitch mechanical regulation. Equistatic compensator.
Ball joint
Diameter mm 110
HS blade:
Width (blade) mm 3180
Height mm 1100
Nominal capacity
cum
3.1
Max. lifting mm 1105
Digging depth mm 406
Max. tilt mm
550
Max. angle deg ± 10
Semi-U HSU blade
Width (blade) 3180
Height mm 1320
Nominal capacity mm
4.1
Max. lifting
cum
1105
Digging depth mm 480
Max. tilt mm
550
Max.
±6
Wear components:
-
Two corners + two reversible cutting edges
Thickness of cutting edges mm 25
Break-up force (lift cylinders)
-
Break-up force (tilt cylinder)
-
Carefully read personal and machine SAFETY PRECAUTIONS (at the beginning of this manual)
