2000-16
84581916A Issued 3-12 Printed in E.C.

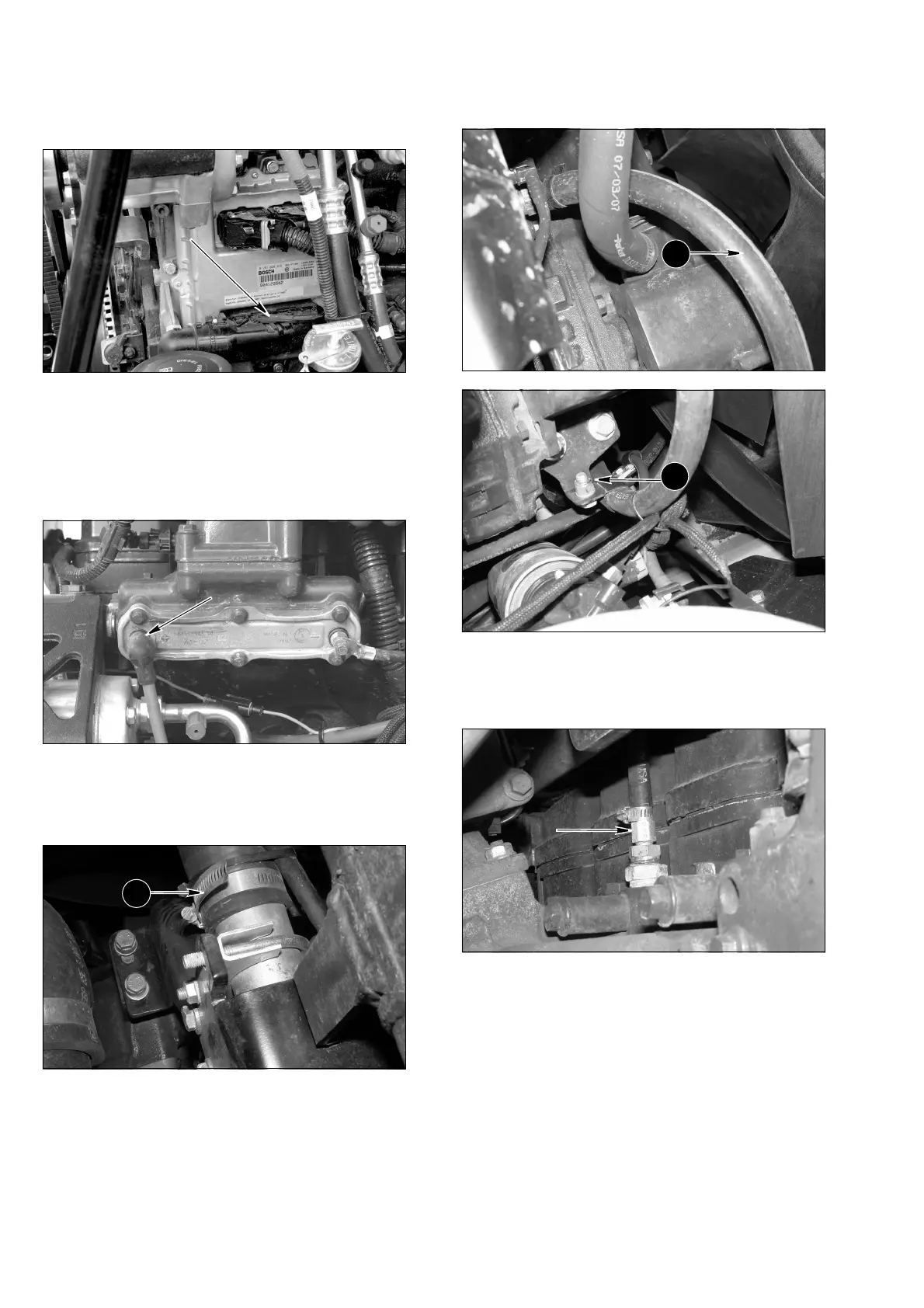

STEP 59
BD07N586-01
Connect wiring harness to EDC 7 controller.
NOTE: Start the connector on the EDC 7 with lever
straight out from EDC 7. Use lever to pull connector
into position.
STEP 60
BD07N585-01
Connect grid heater cable to grid heater. Remove
and discard tag.
STEP 61
BD07N596-01
BD07N583-01
BD07N584-01
Install the heater hose (2) to the rear of the engine,
mount the clamps (3), install the radiator hose (1).
STEP 62
BD07N599-01
Connect the engine coolant vent hose.
1
2
3
