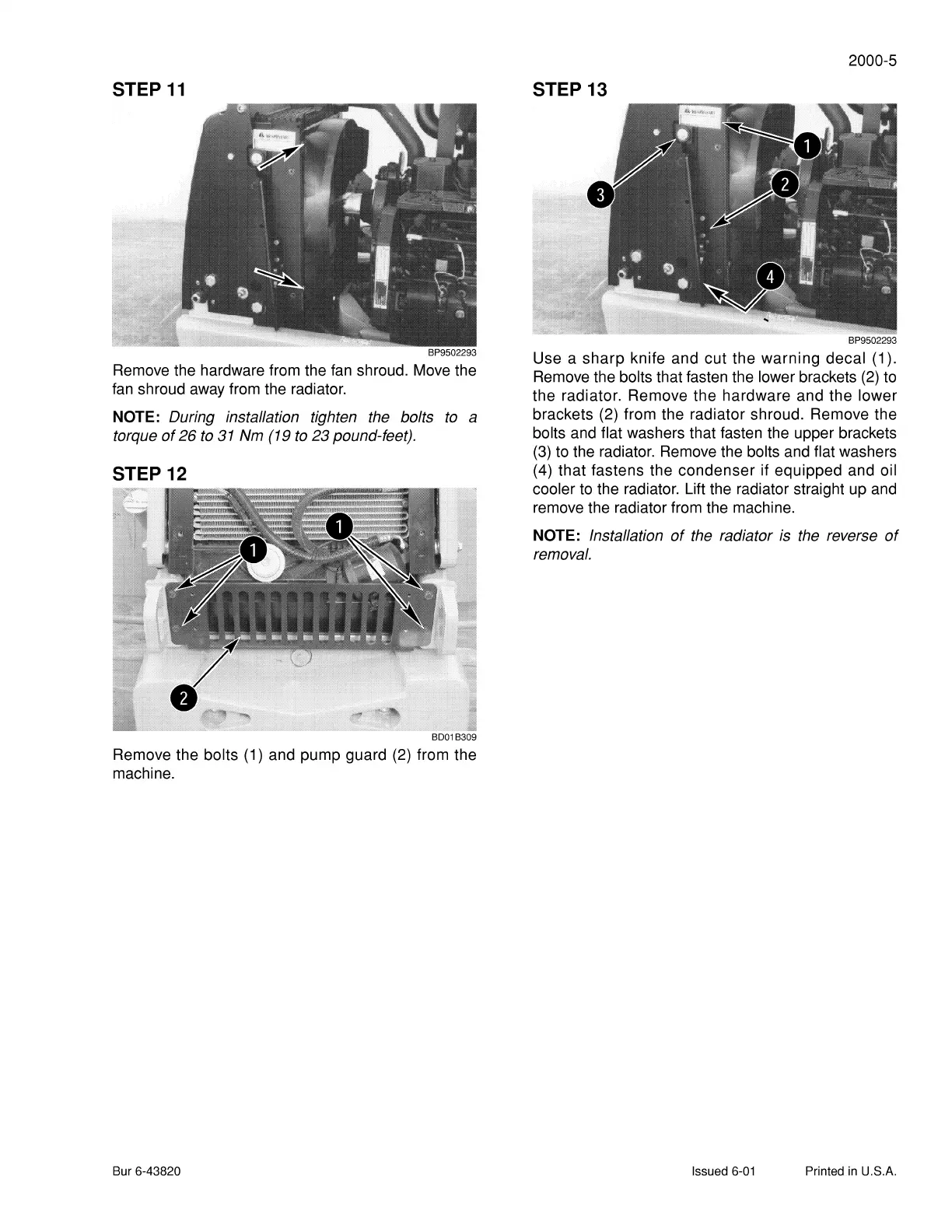

STEP11
BP9502293
Remove the hardware from the fan shroud. Move the
fan
shroud away from the radiator.
NOTE: During installation tighten
the
bolts
to
a
torque
of
26
to
31
Nm
(19
to
23 pound-feet).
STEP12
BD01B309
Remove the bolts (1) and pump guard (2) from the
machine.
Bur 6-43820
2000-5
STEP13
BP9502293
Use a
sharp
knife and cut the
warning
decal
(1
).
Remove the bolts that fasten the lower brackets
(2)
to
the radiator. Remove the hardware and the lower
brackets (2) from the radiator shroud. Remove the
bolts and flat washers that fasten the upper brackets
(3)
to the radiator. Remove the bolts and flat washers
(4) that fastens the condenser if equipped and oil
cooler to the radiator. Lift the radiator straight up and
remove the radiator from the machine.
NOTE: Installation
of
the
radiator
is
the
reverse
of
removal.
Issued
6-01
Printed
in
U.S.A.
