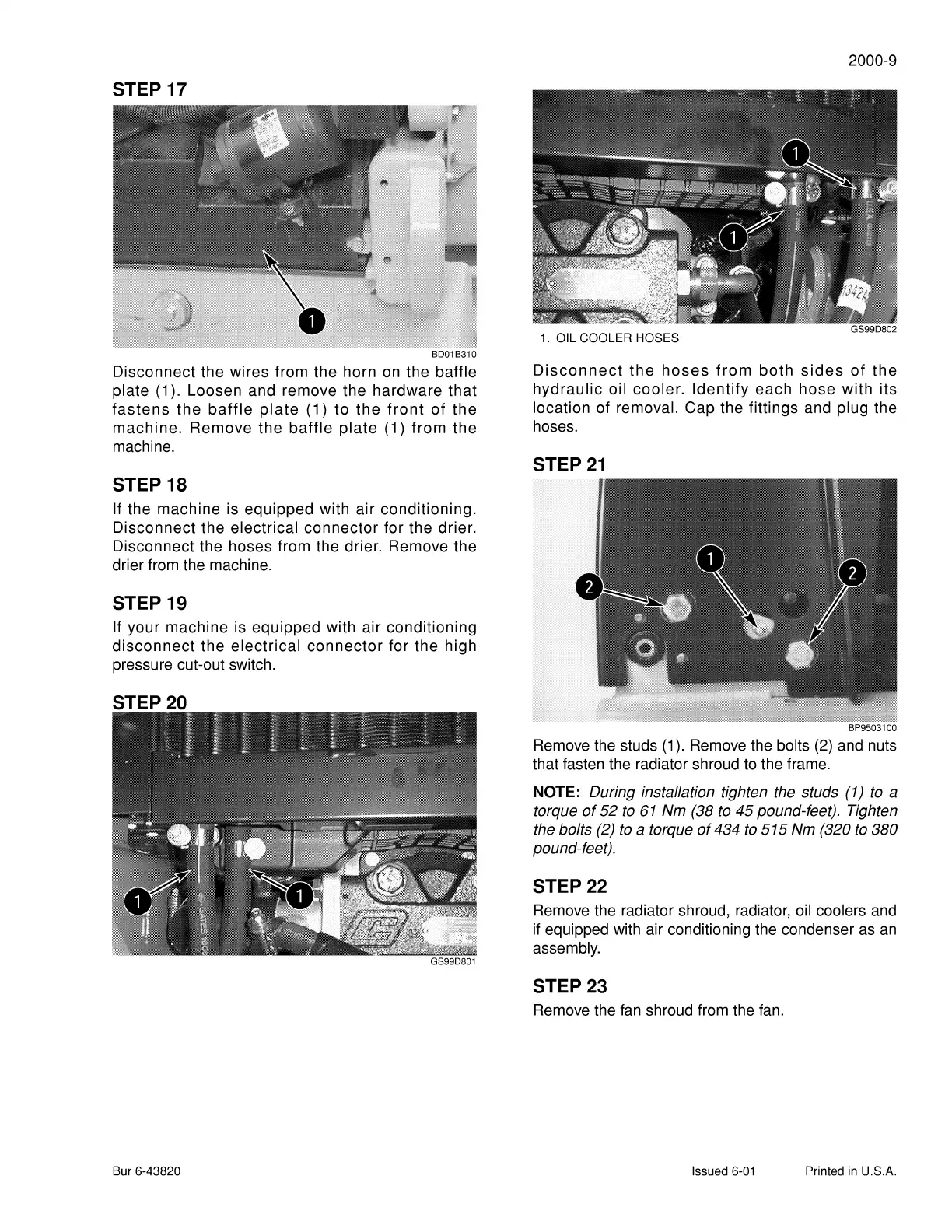

STEP17
8D018310
Disconnect the wires from the horn
on
the baffle
plate
(1
).
Loosen and remove the hardware
that
fastens
the
baffle
plate
(1) to
the
front
of
the
machine.
Remove the
baffle
plate
(1)
from
the
machine.
STEP18
If the machine is equipped with air conditioning.
Disconnect the electrical connector for the drier.
Disconnect the hoses from the drier. Remove the
drier from the machine.
STEP19
If your machine is equipped with air conditioning
disconnect
the
electrical
connector
for the high
pressure cut-out switch.
STEP 20
GS99D801
Bur 6-43820
2000-9
GS99D802
1 . OIL COOLER HOSES
Disconnect
the
hoses
from
both
sides
of
the
hydraulic
oil cooler.
Identify
each
hose
with its
location of removal. Cap the fittings and plug the
hoses.
STEP
21
BP9503100
Remove the studs
(1
).
Remove the bolts
(2)
and nuts
that fasten the radiator shroud to the frame.
NOTE: During installation tighten the studs (1)
to
a
torque
of
52
to
61
Nm (38
to
45
pound-feet). Tighten
the bolts (2)
to
a torque
of
434
to
515 Nm (320
to
380
pound-feet).
STEP
22
Remove the radiator shroud, radiator, oil coolers and
if
equipped with air conditioning the condenser
as
an
assembly.
STEP 23
Remove the
fan
shroud from the
fan.
Issued
6-01
Printed
in
U.S.A.
