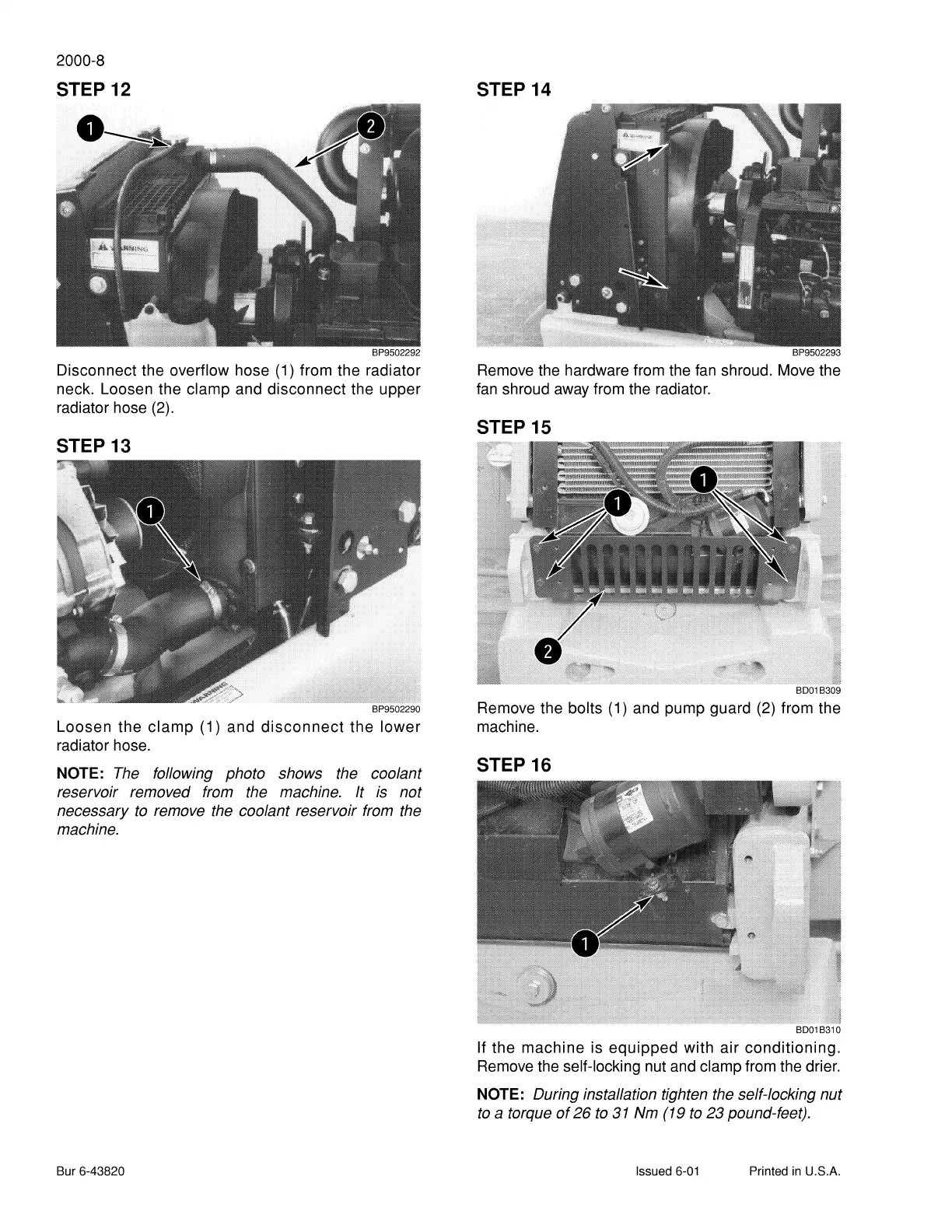

2000-8
STEP12
BP9502292
Disconnect the overflow hose (1) from the radiator
neck. Loosen the clamp and disconnect the upper
radiator hose (2).
STEP13
BP9502290
Loosen
the
clamp
(1) and
disconnect
the
lower
radiator hose.
NOTE:
The
following photo shows the coolant
reservoir removed from the machine. It
is
not
necessary
to
remove the coolant reservoir from the
machine.
Bur 6-43820
STEP14
BP9502293
Remove the hardware from the fan shroud. Move the
fan
shroud away from the radiator.
STEP15
BD01B309
Remove the bolts (1) and pump guard (2) from the
machine.
STEP16
BD01B310
If the
machine
is
equipped
with
air
conditioning.
Remove the self-locking nut and clamp from the drier.
NOTE: During installation tighten the self-locking nut
to
a torque
of
26
to
31
Nm (19
to
23 pound-feet).
Issued
6-01
Printed
in
U.S.A.
