2000-12

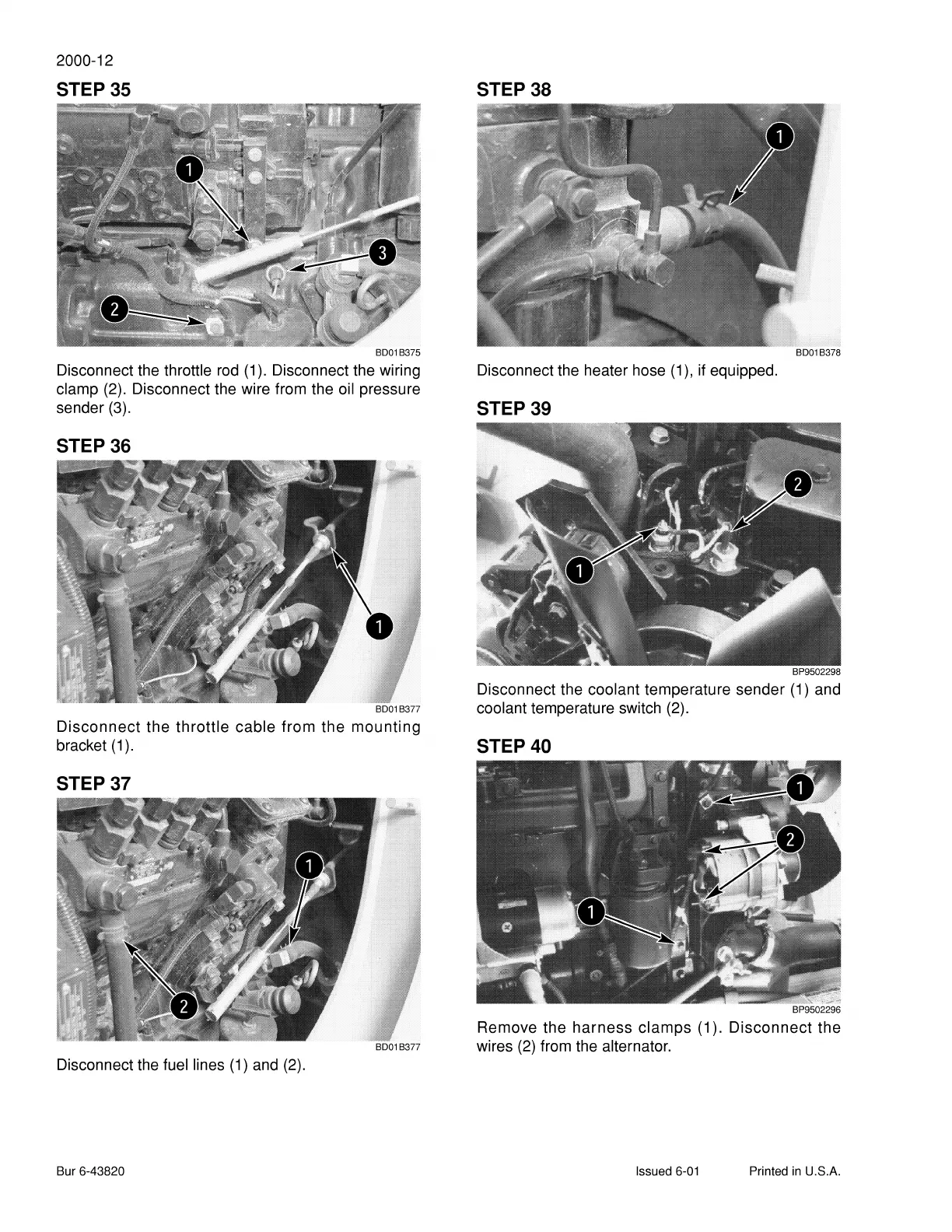

STEP 35
8D018375
Disconnect the throttle rod (1 ). Disconnect the wiring
clamp (2). Disconnect the wire from the oil pressure
sender (3).
STEP 36
8D018377
Disconnect the throttle cable from the mounting
bracket ( 1 ) .
STEP 37
8D018377
Disconnect the fuel lines (1) and (2).
Bur 6-43820
STEP 38
8D018378
Disconnect the heater hose (1 ), if equipped.
STEP 39
BP9502298
Disconnect the coolant temperature sender (1) and
coolant temperature switch (2).
STEP 40
BP9502296
Remove the harness clamps (1 ). Disconnect the
wires (2) from the alternator.
Issued 6-01 Printed in U.S.A.
