Case 570MXT - Page 40

2000-16
'--e
------
I
{)
I ~

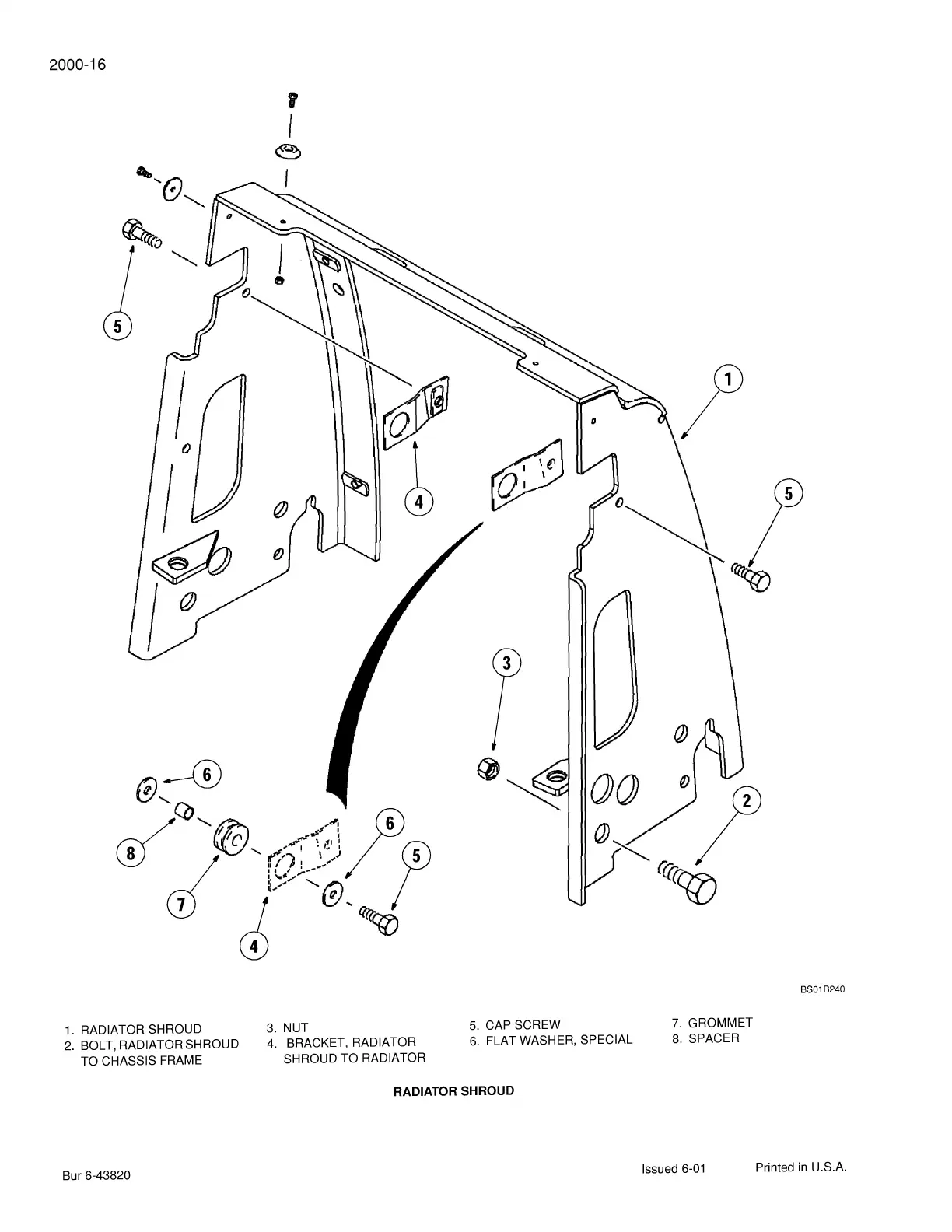

1. RADIATOR SHROUD
2. BOLT, RADIATOR SHROUD
TO CHASSIS FRAME
Bur 6-43820
'
I
e
@
3. NUT
4. BRACKET, RADIATOR
SHROUD TO RADIATOR
¢D
5. CAP SCREW
6. FLAT WASHER, SPECIAL
RADIATOR SHROUD
?
BS01B240
7. GROMMET
8. SPACER
