68 SECTION 21 - TRANSMISSION
HYDRAULIC MULTI PLATE CLUTCH 4WD SHAFT
ASSEMBLY

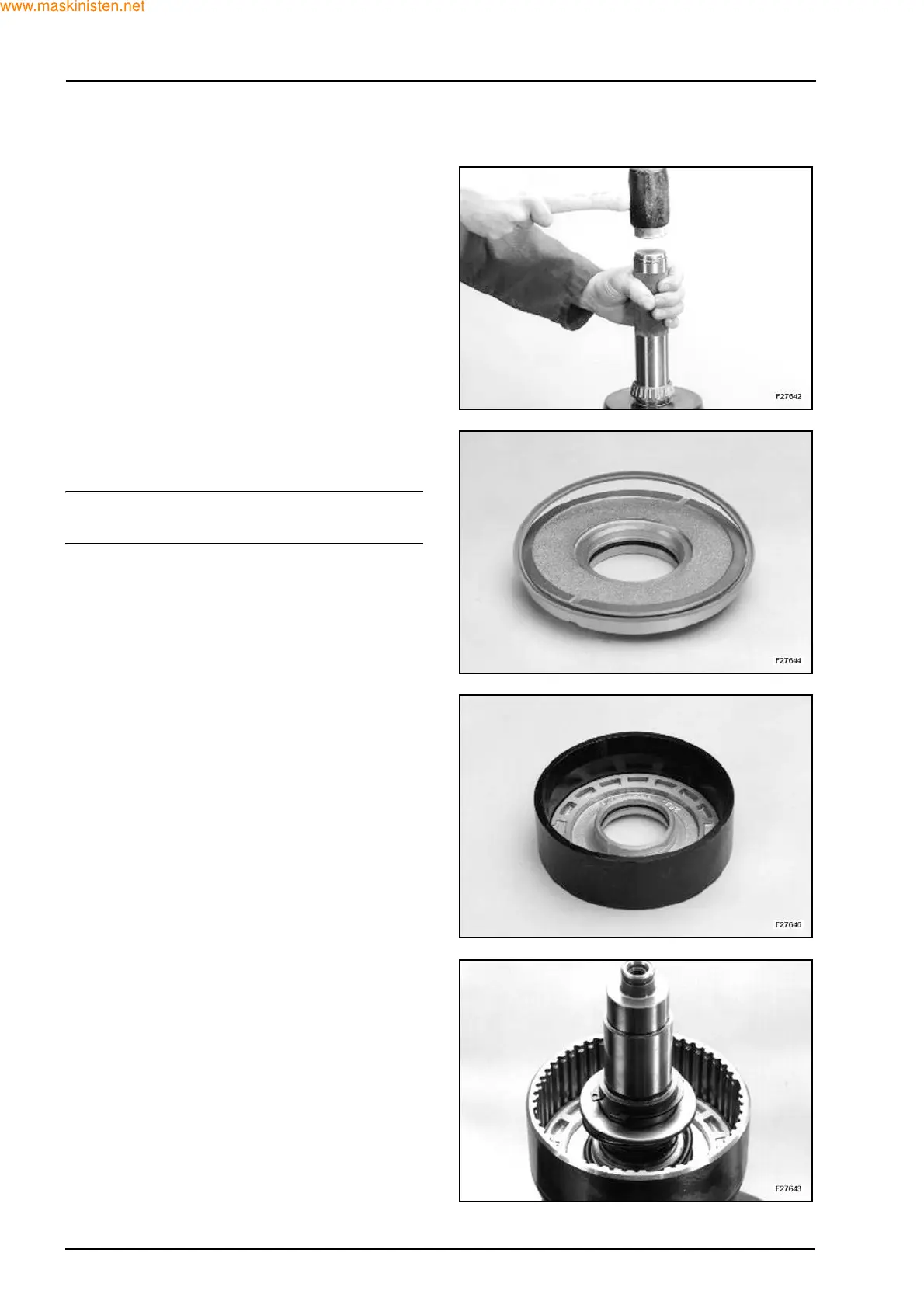

Using an appropriately sized tube refit the front bear-
ing.
Replace the piston sealing rings to facilitate assem-
bly: the seals may be warmed in lukewarm water pri-
or to assembly.
NOTE: the outer seal must be fitted with the open
edge facing away from the clutch pack.
Using the appropriate tool 380002684 compress the
piston sealing rings. The seals should be left in the
tool 380002684 for a minimum of 30 minutes prior to
assembly into the clutch drum.
Lubricate the seals with a light grease and refit the
piston into the clutch drum. Then replace the spring,
retainer and circlip.
