SECTION 35 - HYDRAULIC SYSTEM 103

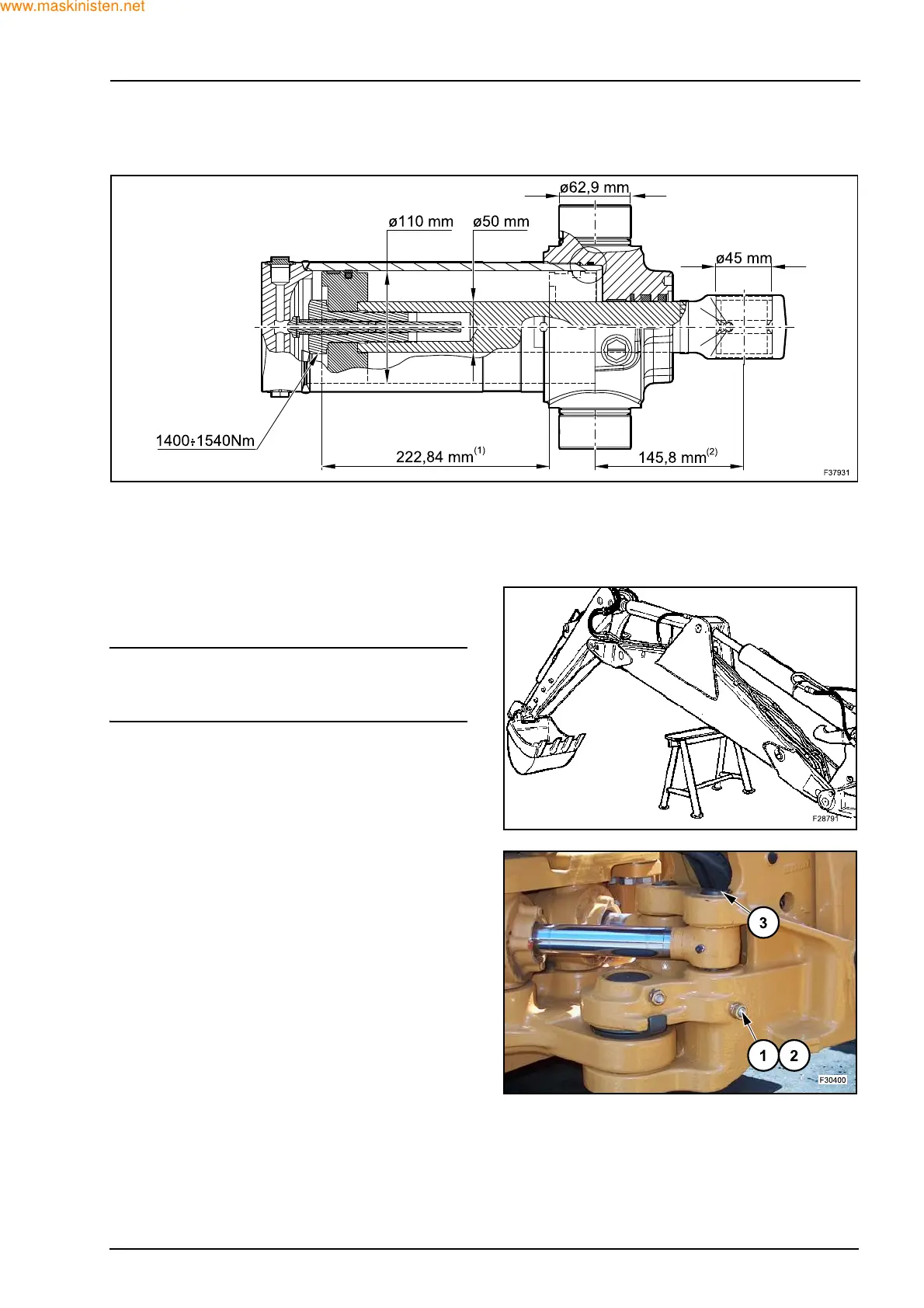

5.10 SWING CYLINDER
(1) Stroke
(2) Completely retracted
CYLINDER REMOVAL
Park the machine on a flat surface and position the
backhoe on the ground. Support the backhoe ele-
ments for cylinder removal using a suitable stand.
SWARNING
Always support the structural members so that they
will be stable and safe to work around.
Stop the engine and move the backhoe attachment
control levers through all operating positions to re-
lieve any residual pressures in the system.
Loosen and remove the nuts (1). Slide out the screw
(2) from the opposite side. Now the pin (3) can come
out and release the rod cylinder. If necessary ham-
mer to help the pin (3) to come out.
