78 SECTION 21 - TRANSMISSION

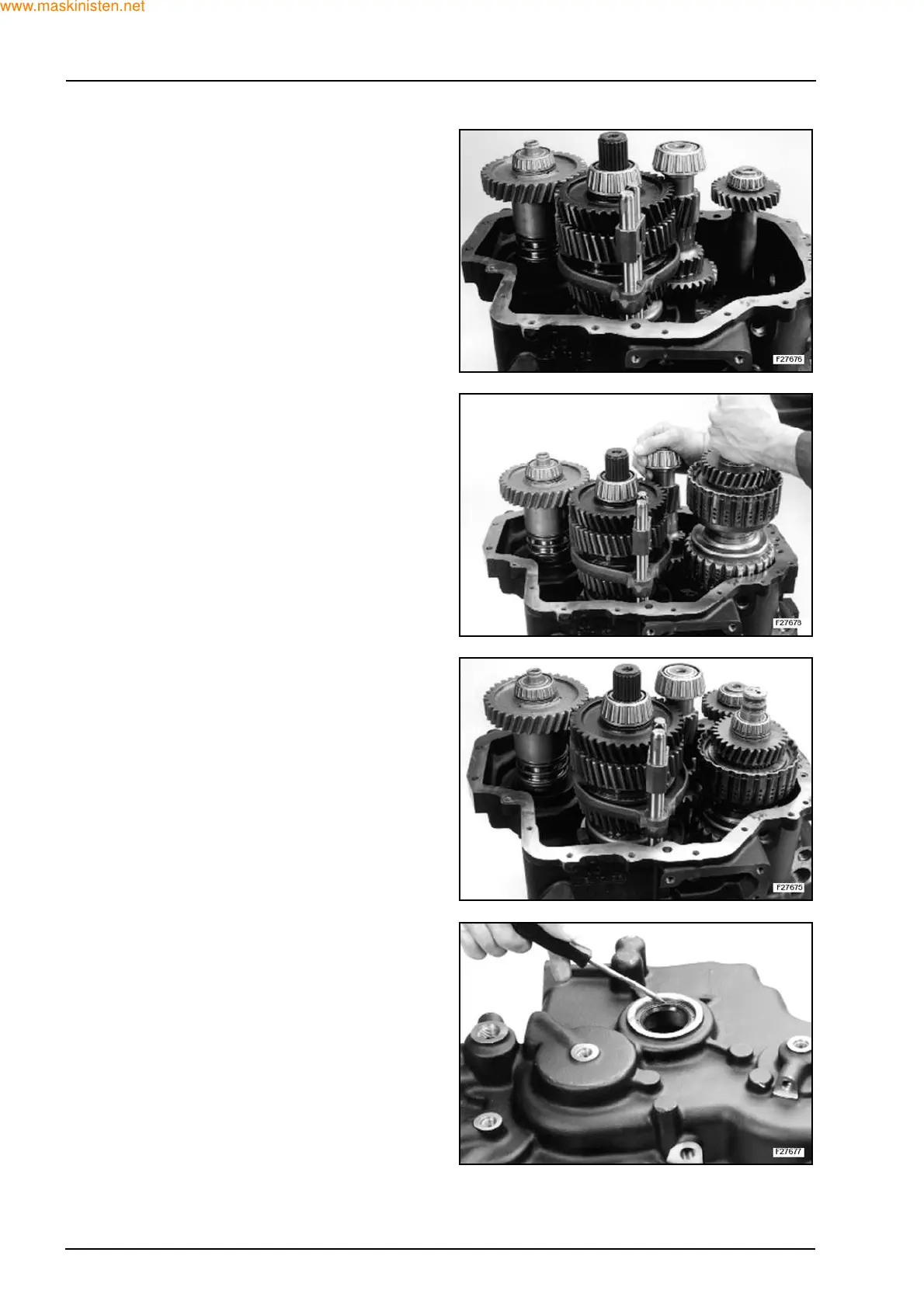

Remove the 4WD shaft assembly (on 4WD models
only).
Lubricate the rear seal with a light grease.
Lubricate the input shaft front and rear seals with a
light grease and refit the shaft assembly into the
case.
Rear case with all shaft assemblies fitted.
Position the rear case as shown and using a suitably
sized tube fit a new output shaft oil seal to a depth of
6 mm below the housing face. Fill the seal lip with a
light grease.
