88 SECTION 21 - TRANSMISSION
PARKING BRAKE

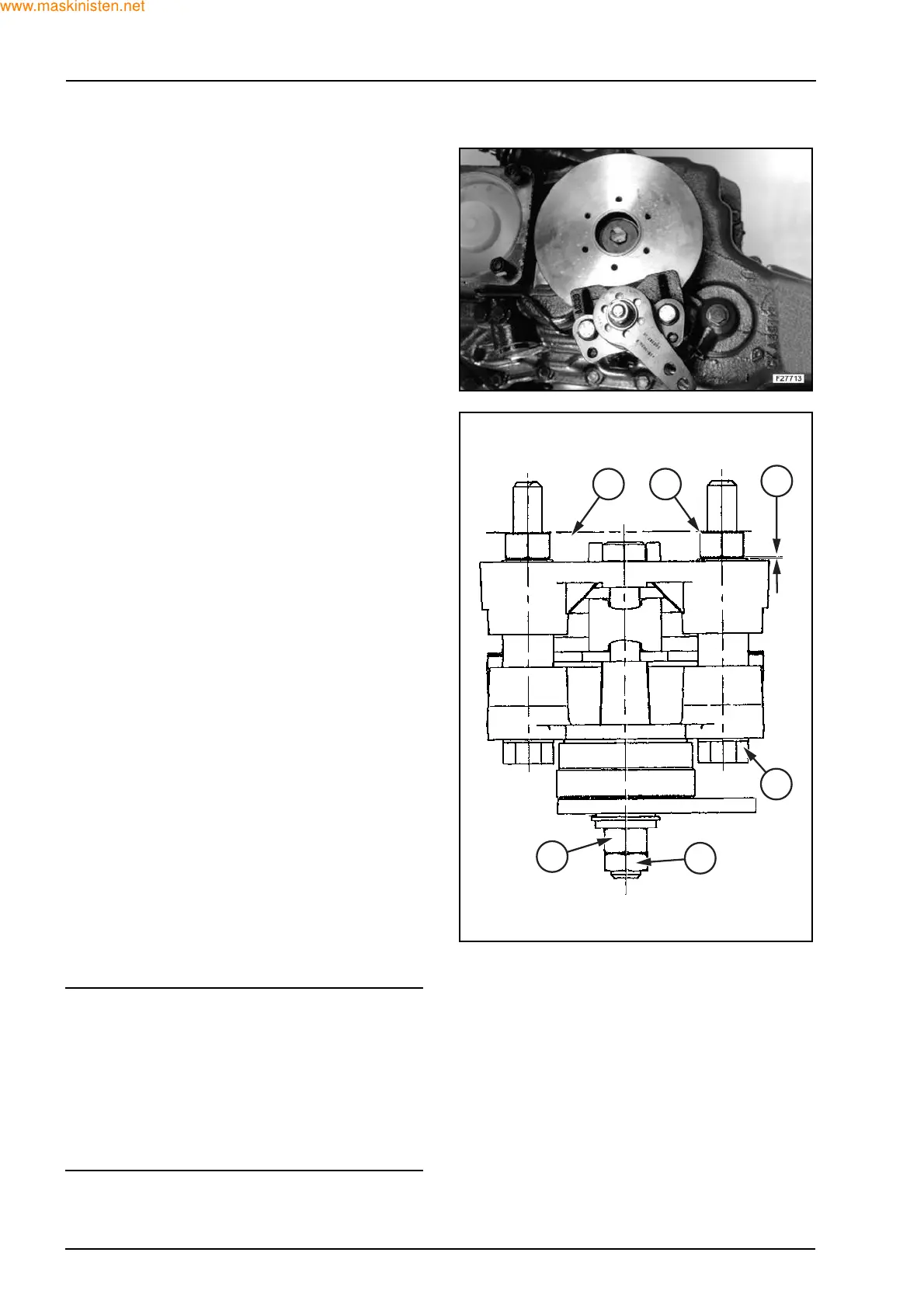

The caliper assembly is mounted directly onto the
rear face of the transmission housing.
1. Mounting face
2. Locknut
3. Mounting bolt
4. Outer locknut
A. Adjust the two mounting bolts and locknuts to
leave a 0.25/1.50 mm gap between the locknut
and sleeve.
Then torque locknuts against mounting surface
to 155 Nm.
B. Adjust this nut until pads are in contact with the
brake pads.
Then loosen 1/2 turn.
Finally torque outer locknut to 60-70 Nm.
IMPORTANT:
BRAKE PAD: the minimum acceptable thickness of
the brake pads is 2.286 mm.
BRAKE DISC: the nominal thickness of the disc is
9.5 mm.
The maximum total wear limit for the disc is
1.524 mm.
Based on the nominal thickness of 9.5 mm this would
give a minimum thickness of 7.976 mm.
F27714
2
1
A
3
4
B
