94 SECTION 21 - TRANSMISSION
2. POWERSHIFT TRANSMISSION “DANA T16000”
This transmission is used only on powershift loader backhoe models 580SR+ / 590SR / 695SR.
2.1 SPECIFICATIONS
HYDRAULIC SPECIFICATIONS
Suitable for operation from ambient to 120 °C continuous operating temperature.
Must withstand a 20 bar continuous pressure and a 40 bar variable pressure.
Conform SAE J1019 and SAE J517, 100RI.
Weight ...................................................................................................................................................... 290 kg
BOLT TORQUES
Output flanges............................................................................................................................... 339 - 407 Nm
Filter torque ....................................................................................................................................... 30 - 38 Nm
Control valve, connector nut to cover.................................................................................................... 6 - 8 Nm
ELECTRICAL SPECIFICATIONS
Solenoid coil resistance (forward-reverse travel, high/low, 2nd/1st gear, modulation,
disconnection) ..................................................................................................................... 28 Ω
± 2 Ω at 20 °C
Electronic controlled modulation valve, coil resistance ...................................3.55 Ohm
(± 0.25 Ohm) at 20 °C
Speed sensor:
- type ................................................................................. magneto resistive sensor with 7/14 mA current loop
- frequency ......................................................................................................................................0 - 25000 Hz
- sensing distance .............................................................................................................................. 0 - 2.5 mm

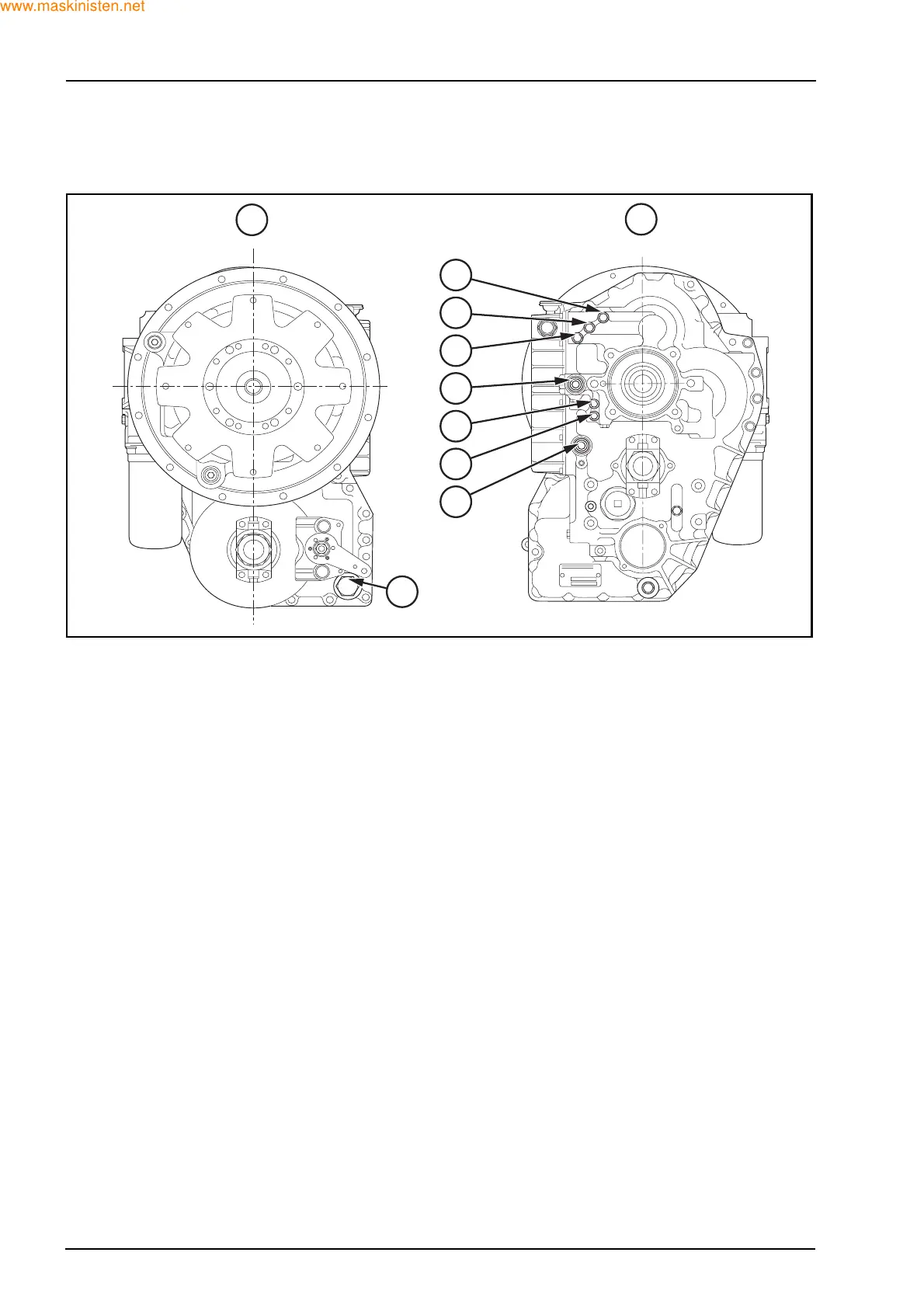

F27718
A
B
2
3
4
5
6
7
8
1
