SECTION 21 - TRANSMISSION 107

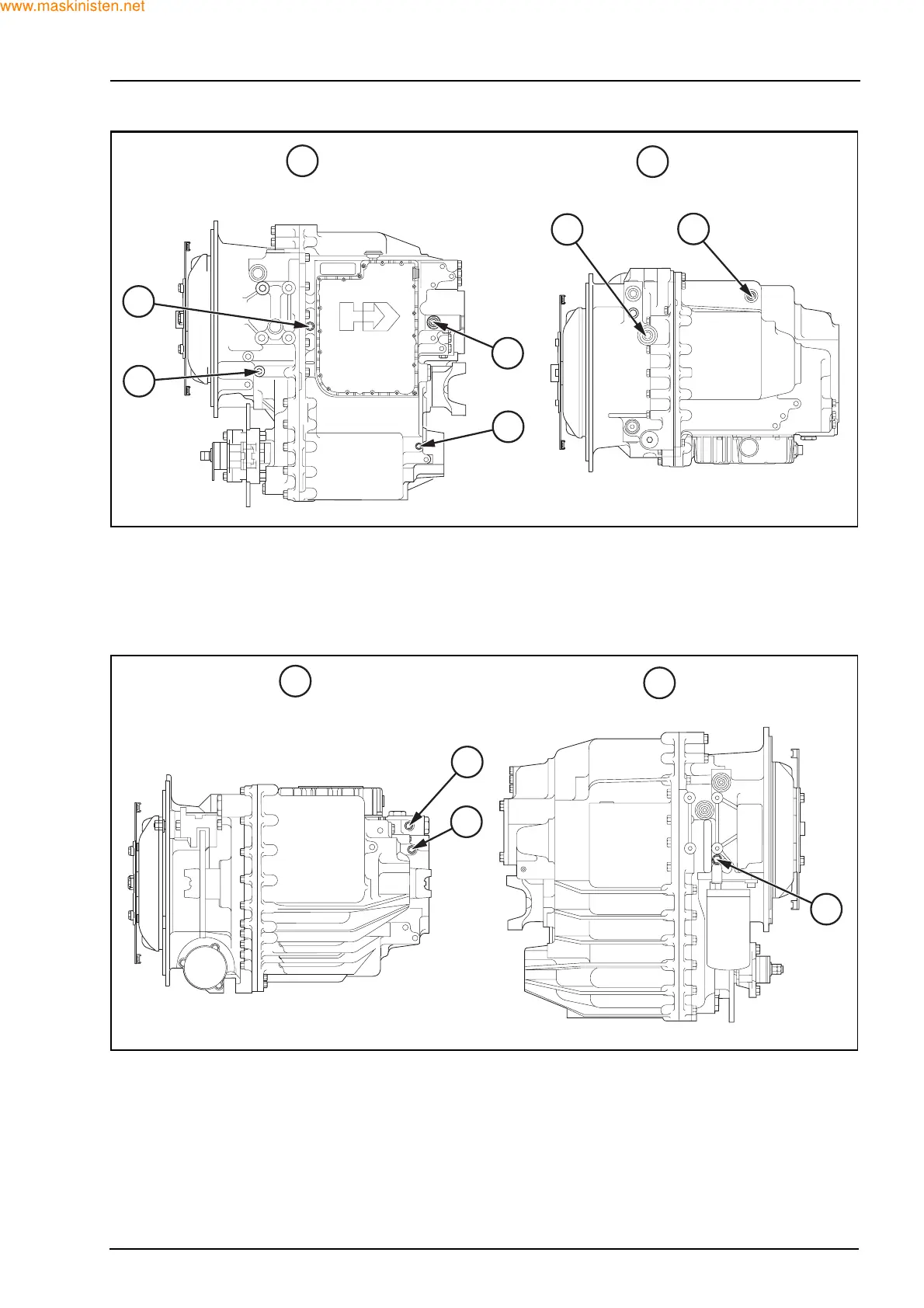

C. Left side view
D. Top view
9. Pressure check port converter in 5-11 bar
10. Pressure check port 2nd clutch (forward 2nd -
forward 4th - reverse 2nd) 18.1-21.5 bar
11. To cooler
12. Pressure check port 4WD 18.9-27.5 bar
13. Pressure check port regulator pressure 19.6-
23.7 bar
14. Filter plug M22 x 1.5
E. Bottom view
F. Right side view
15. Temperature check port converter out to cooler
M10 x 1
16. Pressure check port converter out to cooler
1.0625-12 UN2B SAE
17. Pressure before filter
13
14
11
12
9
10
C
D
F27719
17
16
15
F27720
E
F
