24 SECTION 02 - TECHNICAL SPECIFICATIONS

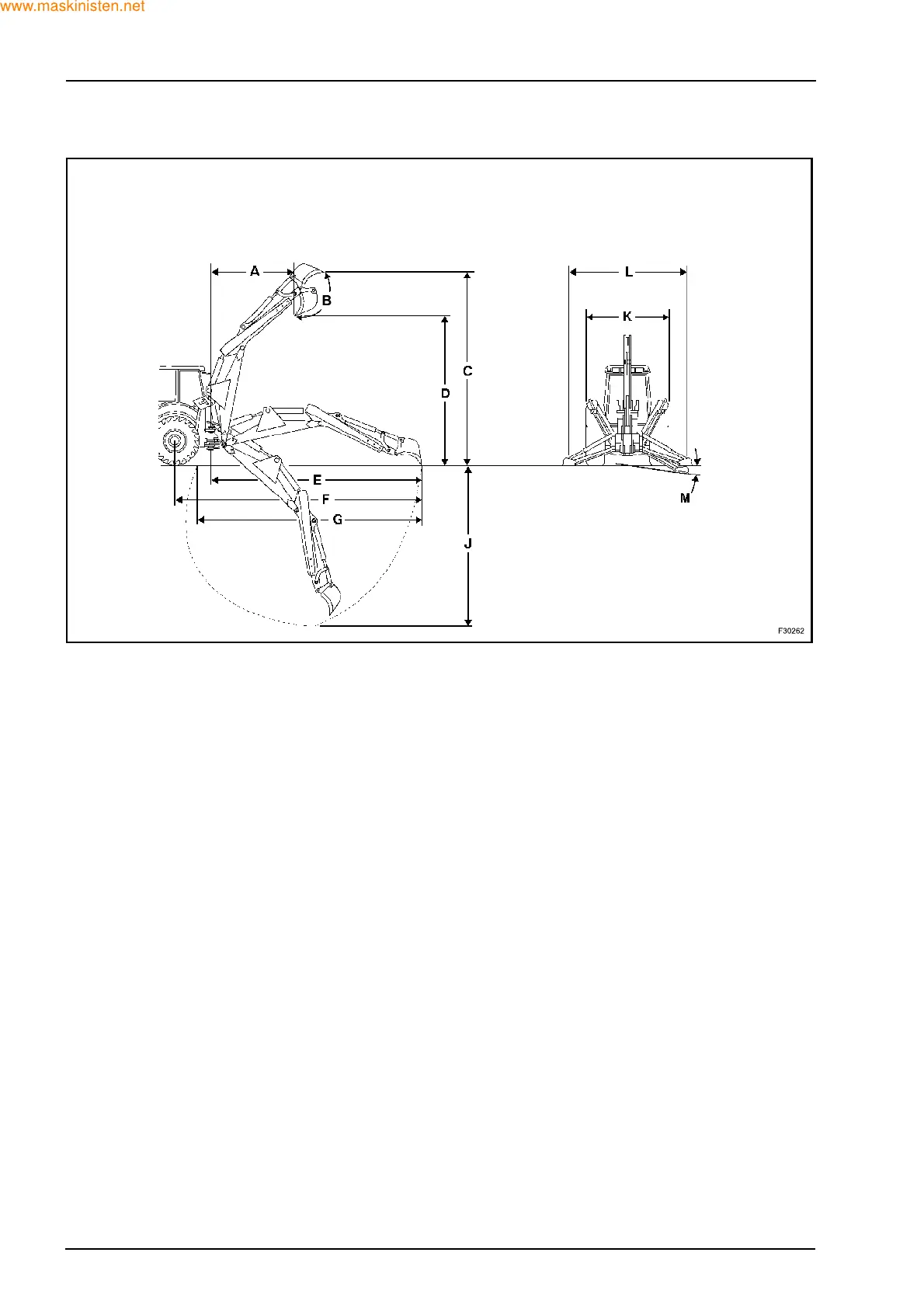

695SR (CENTER PIVOT)
A. Maximum reach when loaded
B. Bucket rotation
C. Operating height, fully raised
D. Maximum height at full load
E. Reach from swing post
F. Reach from rear axle centre line
G. Maximum length of surface excavation
H. Maximum digging depth
I. Stabilizer spread - transport
J. Stabilizer spread - working
K. Stabilizer pad levelling angle
