40 SECTION 27 - REAR AXLE
Assembly

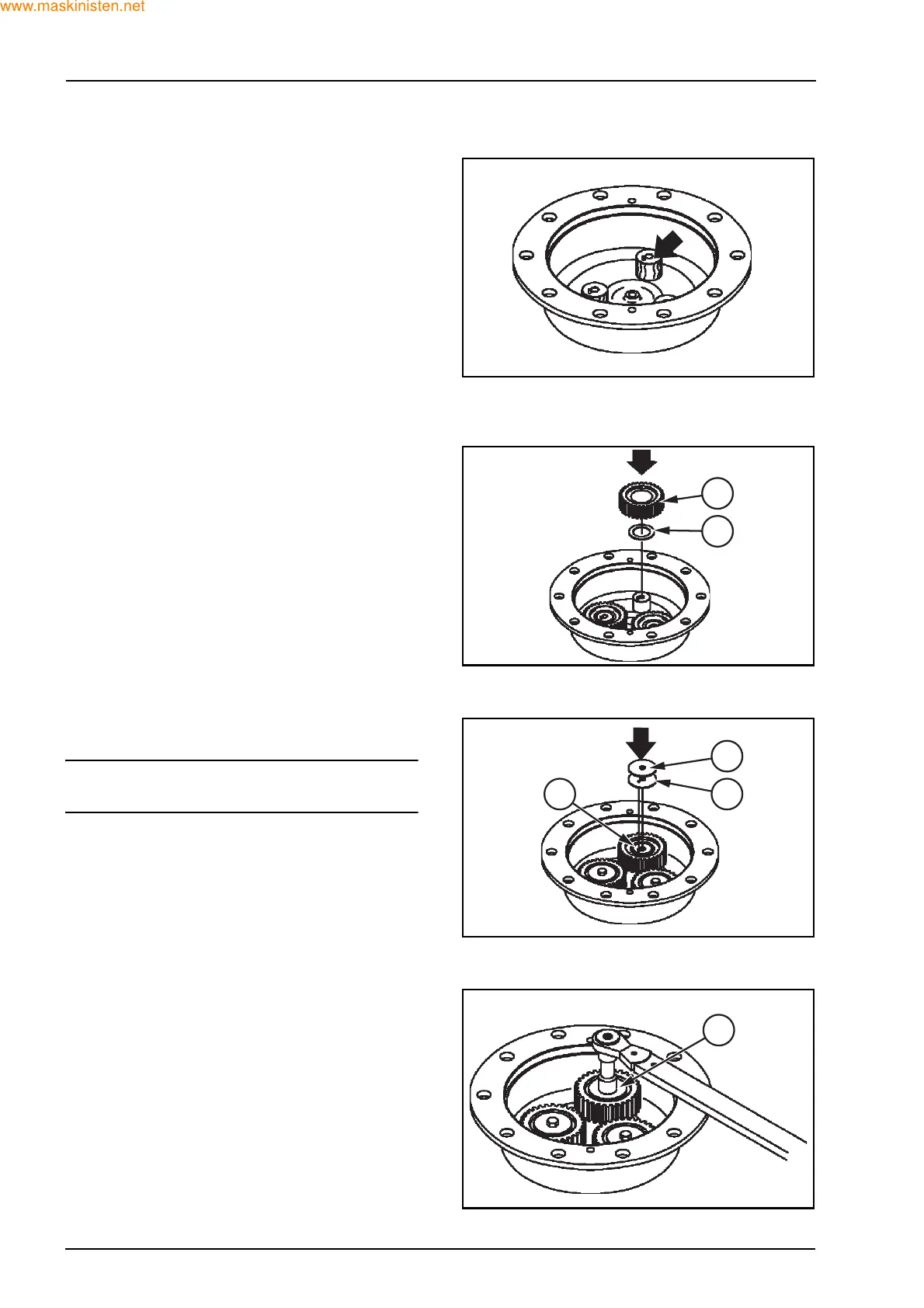

If the pins of the gears are in poor conditions, re-
place the entire planetary train with pre-fitted pins.
Place the planetary carrier on a workbench and fit
the gears (7) and the relevant shims (5).
Insert all the rollers into the gears, then position the
two washers (8) and (9).
NOTE: the first washer must be aligned with the
dowel (10) pin.
Screw in and tighten the screws (11) to the specified
torque.
F28023
F28024
7
5
F28025
9
810
F28026
11
