Case 580SR - Page 617

SECTION 35 - HYDRAULIC SYSTEM 27

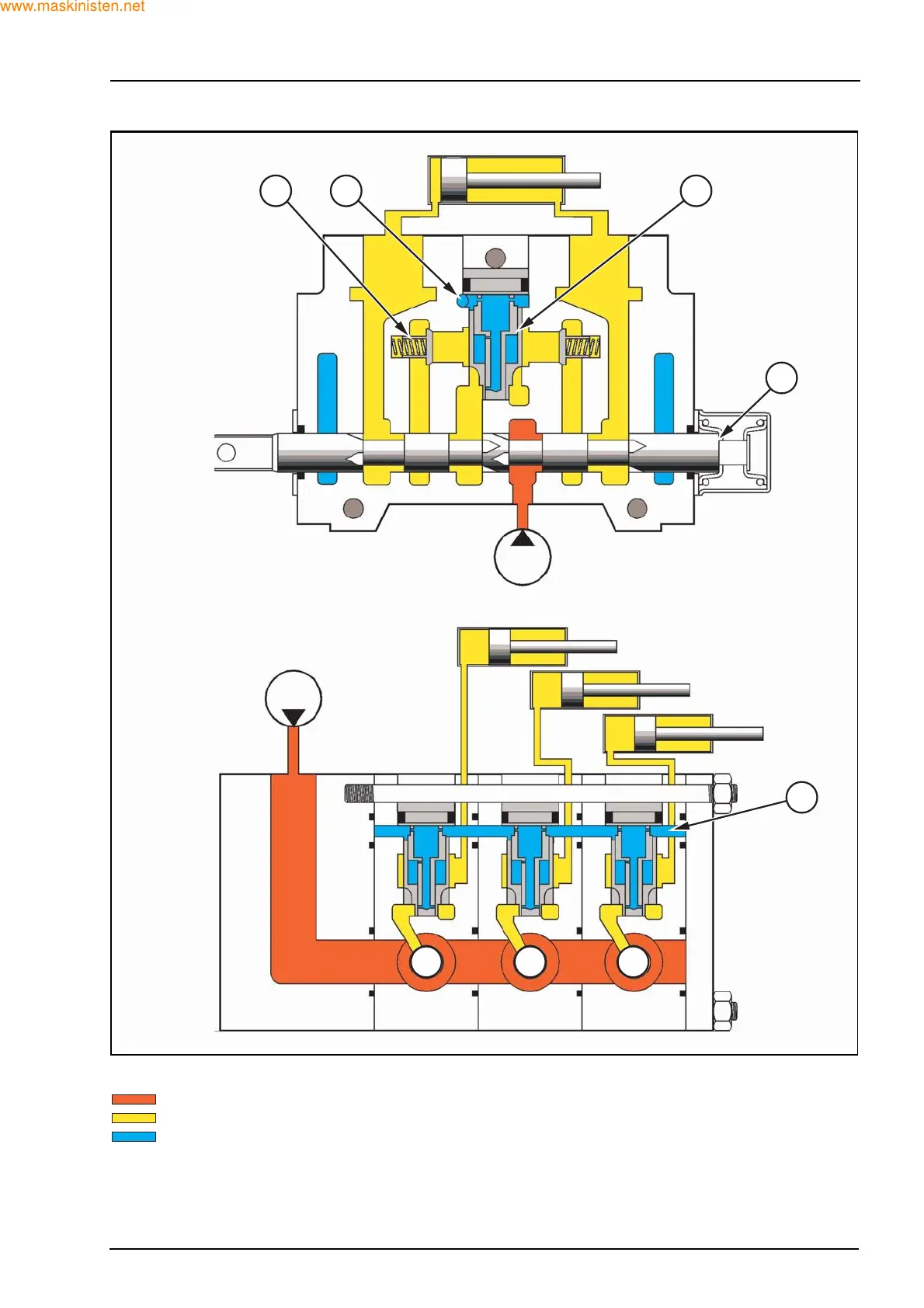

Load sensing flow sharing - All spools in neutral
Pump pressure
Trapped oil
Return to oil tank
1. Load non-return check valve
2. Load sense line
3. Pressure compensator
4. Spool
4
321
2
4 4 4
F29288
