SECTION 35 - HYDRAULIC SYSTEM 69

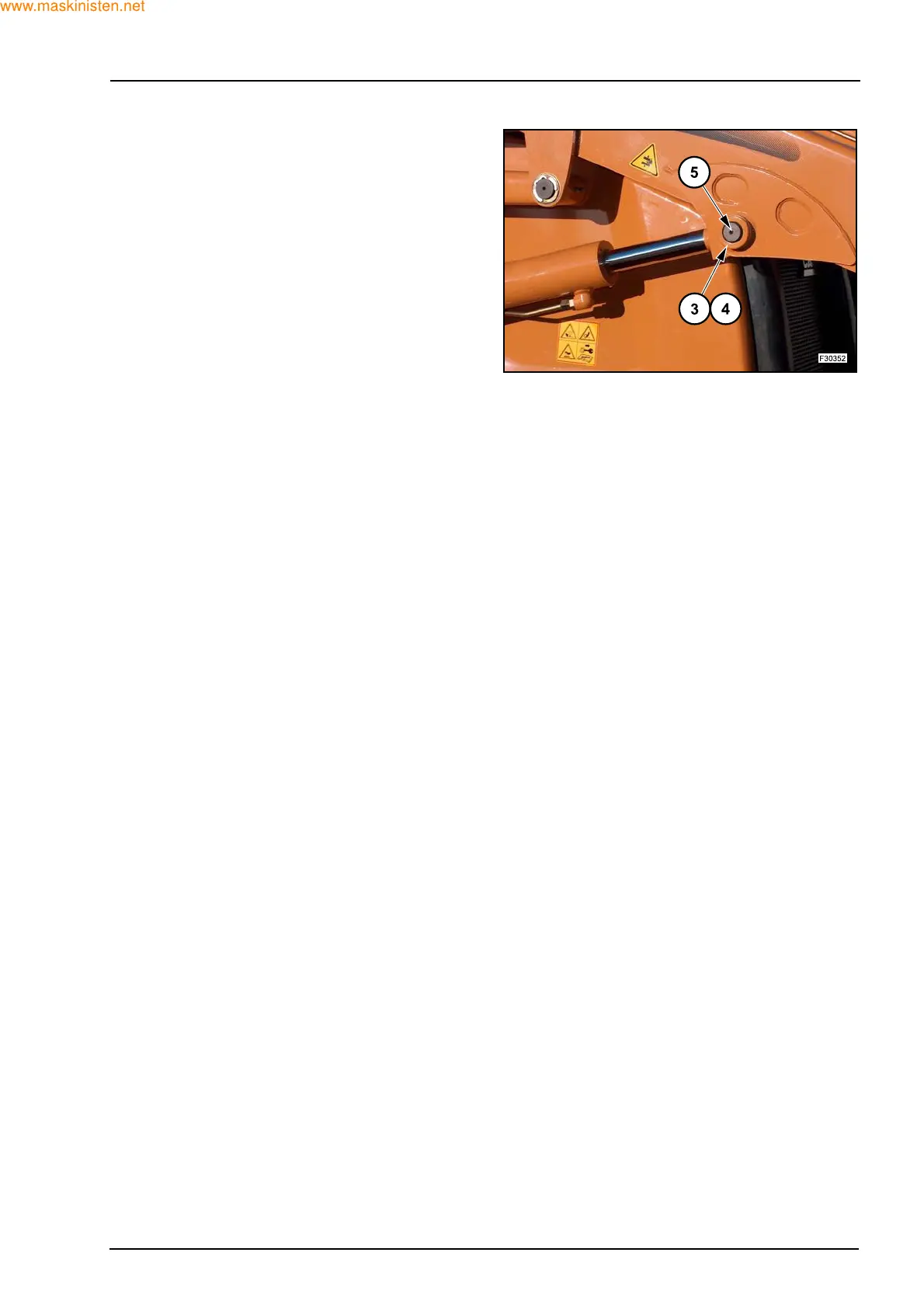

Remove the ring (3) and the pin (4).
Use a hammer to extract the rod pin (5).
Remove the loader attachment boom cylinder.
