88 SECTION 35 - HYDRAULIC SYSTEM

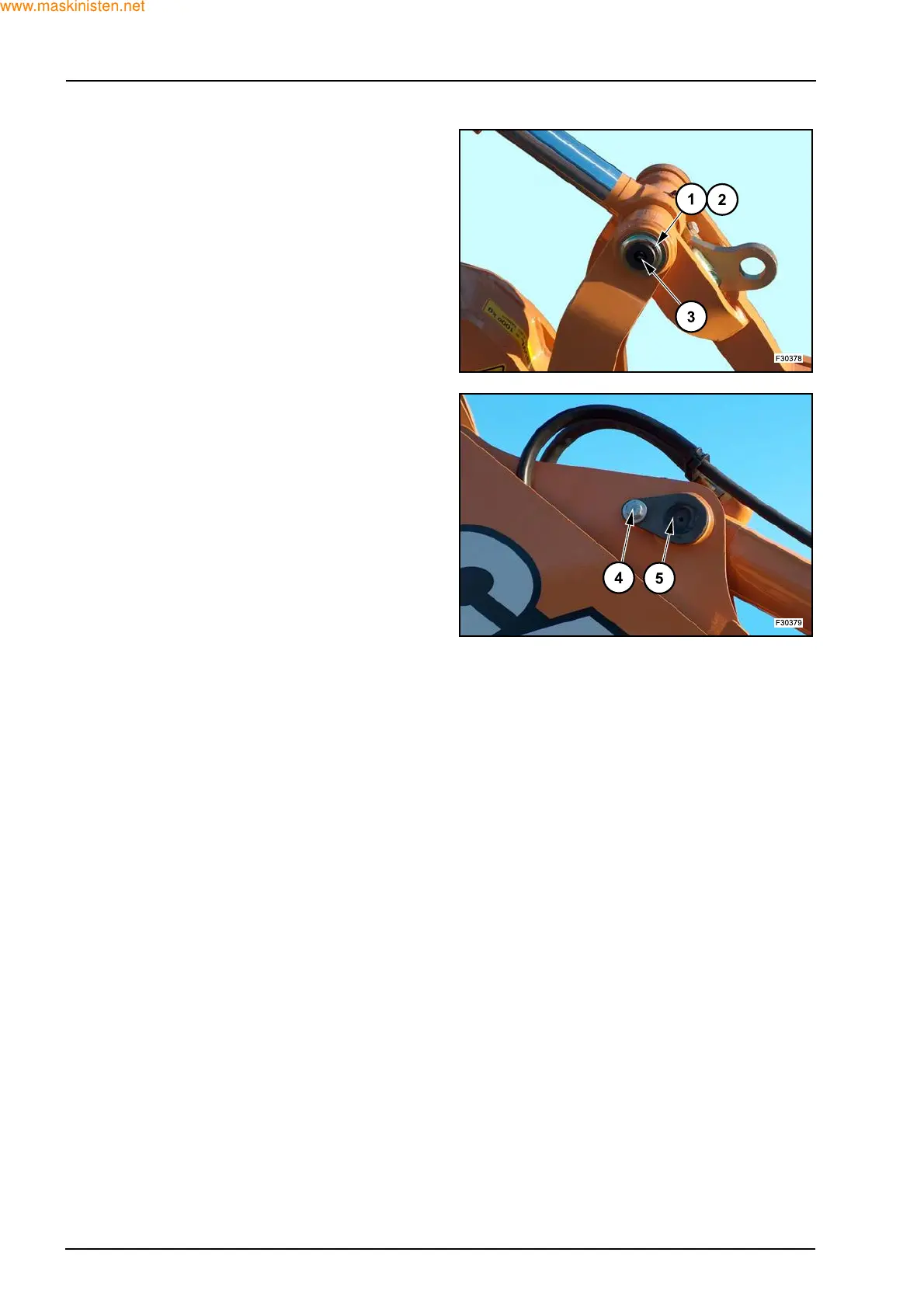

Remove the stop ring (1) with the shim (2). Slide out
the pin (3) with an hammer and pay attention to le-
vers.
If necessary use hydraulic power to very slowly re-
tract the cylinder.
Disconnect the hydraulic hoses. Unscrew and re-
move the screw (4) and slide out the pin (5) with an
hammer.
Remove the backhoe bucket cylinder.
