6 SECTION 21 - TRANSMISSION
1.3 TRANSMISSION CONTROLS

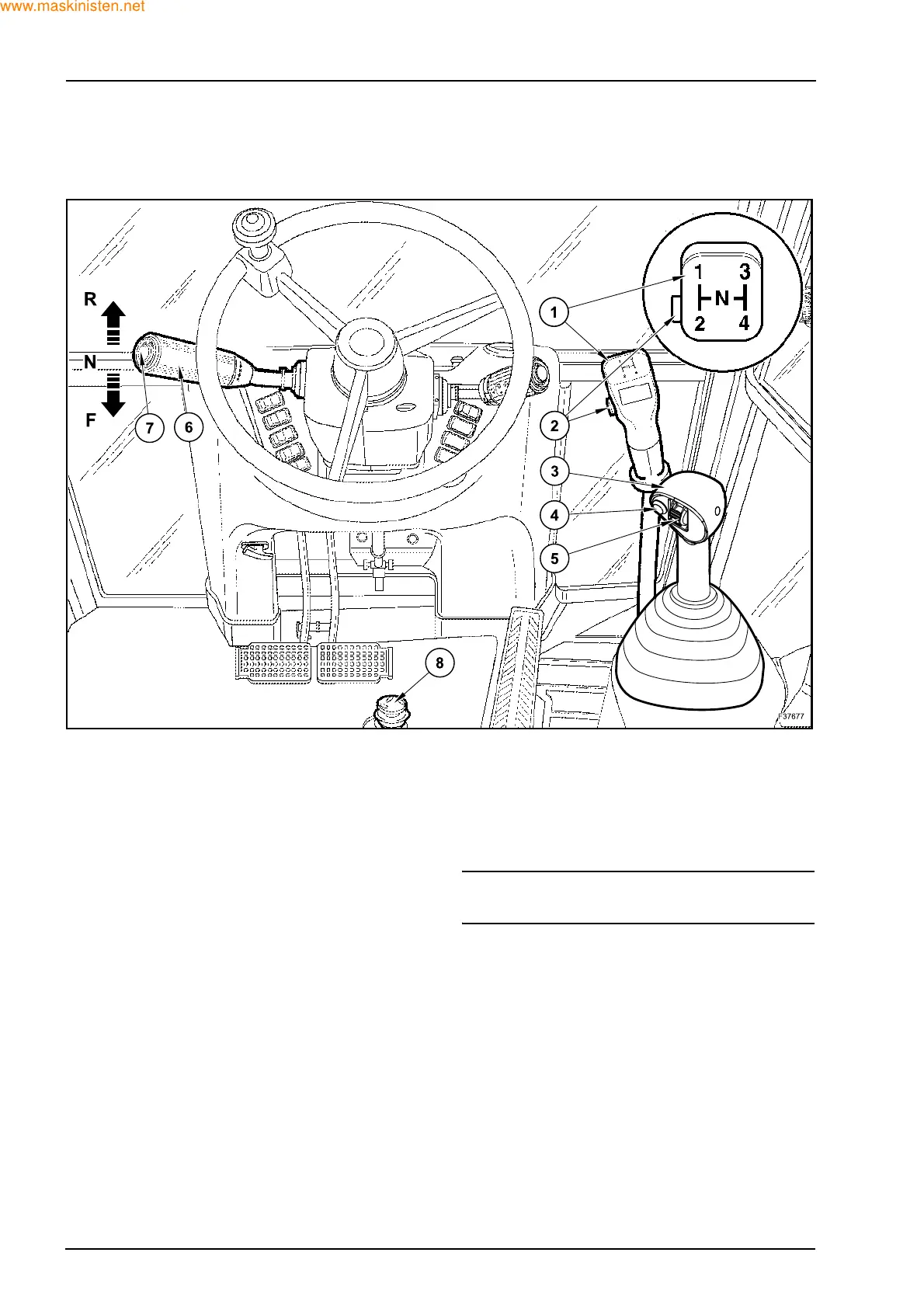

4x4 POWERSHUTTLE TRANSMISSION CONTROLS
1. GEAR LEVER: it is possible to select four for-
ward and four rearward travel gears.
2. TRANSMISSION DISCONNECT BUTTON: pri-
or to changing gear depress and hold down this
switch which disengages transmission drive, se-
lect the required gear with the gear lever and re-
lease the switch to re-engage drive.
3. LOADER ATTACHMENT CONTROL LEVER
4. TRANSMISSION DISCONNECT BUTTON: (on
loader attachment control lever) this button is
used to disengage the transmission in order to
increase loader attachment power.
5. ROLLER FOR THE PROPORTIONAL CON-
TROL OF LOADER BUCKET 4x1
6. POWERSHUTTLE TRANSMISSION DIREC-
TION LEVER: the movement of this lever from
the neutral position will engage the forward or
reverse travel.
NOTE: in reverse gear an audible alarm device
sounds.
7. HORN BUTTON
8. MECHANICAL DIFFERENTIAL LOCK PEDAL:
pressing this pedal enables the differential lock
by locking the two rear wheels together, thus
balancing the drive; they unlock when the torque
of the two wheels are the same or when the
brake pedal is deeply pressed.
