60 SECTION 50 - CAB HEATING AND AIR CONDITIONING
Assembly

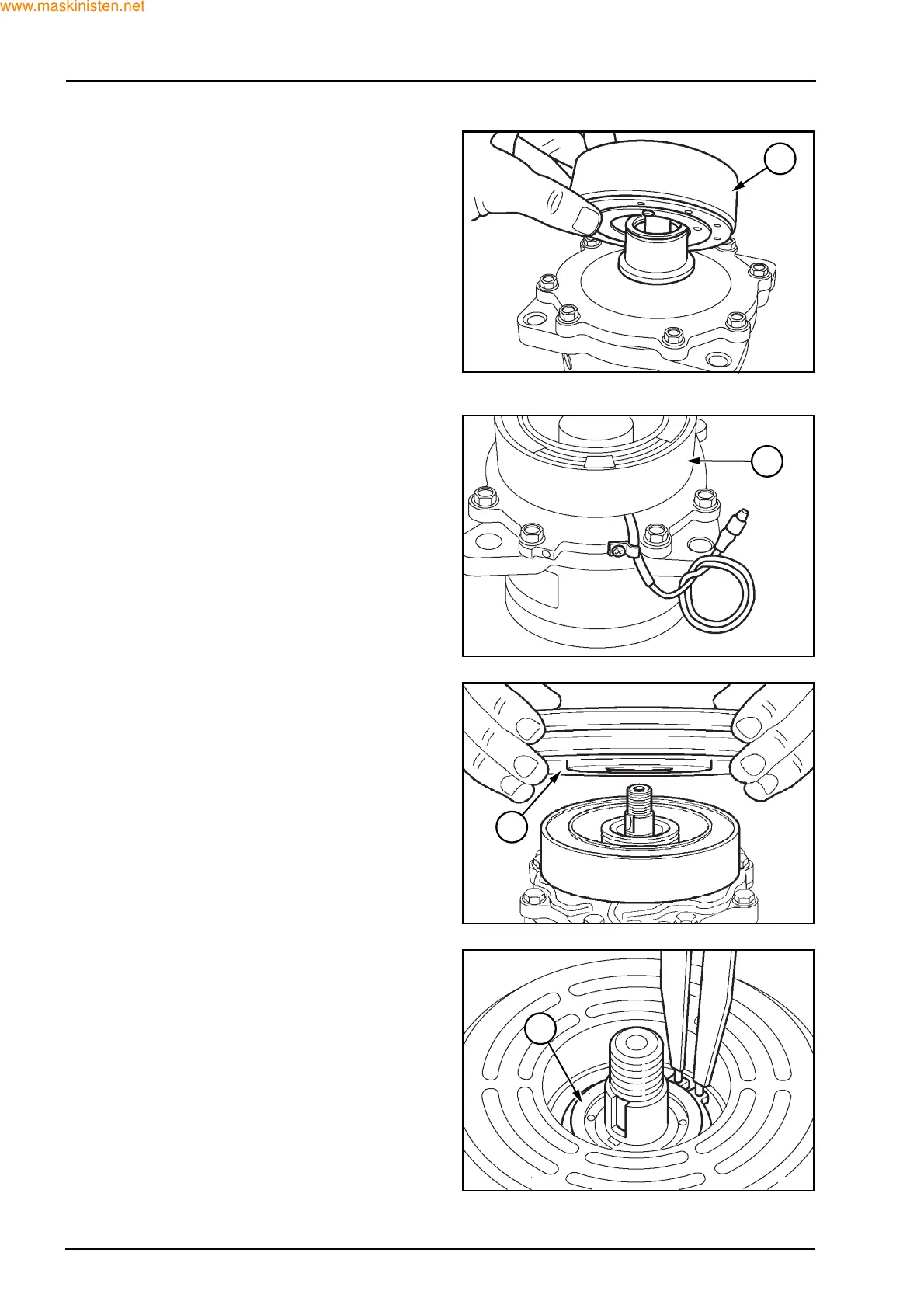

Lift the coil (10) from the housing and replace as re-
quired.
Install the coil (10), making sure that the wire is lo-
cated behind the clip on the outside of the body and
that the snap ring (9) is located in the groove.
Position the rotor (8) on the housing hub and care-
fully slide the rotor (8) down the shaft.
Install the snap ring (7).
F28736
10
F28737
10
F28738
8
F28732
7
