2000-18
RADIATOR
Removal

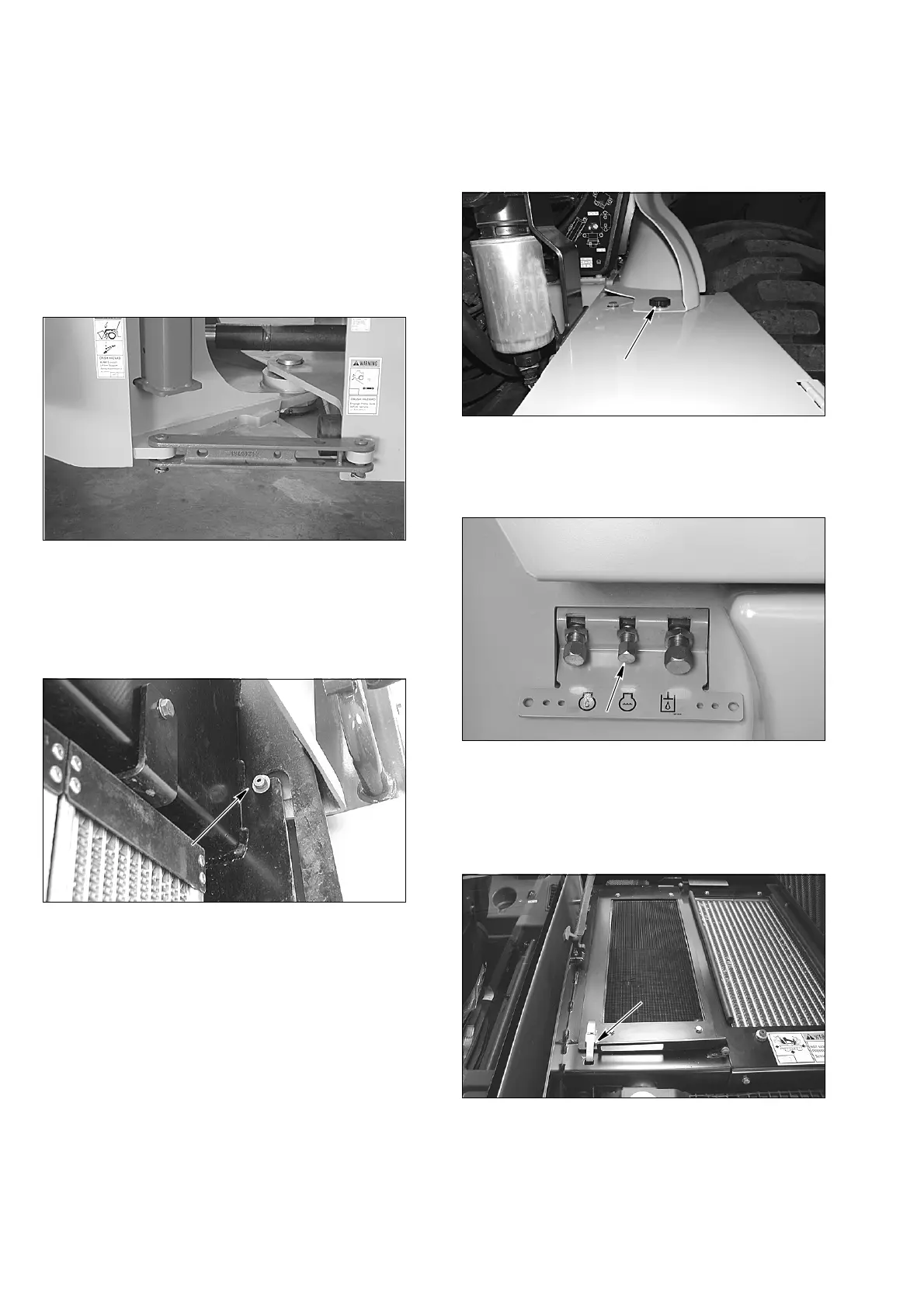

STEP 1
Park loader on level surface and lower bucket to
ground. Apply parking brake and shut down engine.
STEP 2
BD03A040
Put articulation lock in LOCKED position.
STEP 3
Put master disconnect switch in OFF position.
STEP 4
BD03A120
Have another person raise and hold the side panel
up into the raised position. Remove the two mounting
screws for the side panel, remove the panel.
NOTE: Photo is of the oil cooler side of the machine,
the procedure is the same.
STEP 5
BD06F128
Remove bolt and washer securing LH fender.
Remove LH fender.
STEP 6
BD02N160
Put a 28.4 liter (30.0 U.S. quart) container below
radiator drain. Remove radiator cap then remove cap
and drain coolant into container. Install cap after
coolant has drained. Install radiator cap.
STEP 7
BD03A109
Release catch and tilt air conditioning condenser
core up to gain access to upper radiator hose.
To Next Page
