Figure 6:
Figure 7:
IMPORTANT: Do not use multi-viscosity oil. Check
transmission oil level once every ten hours of
operation. Check oil level only after engine has been
stopped for at least 30 minutes and tractor is parked
on a level surface. Fill only to full mark on the
dipstick.
Do not overfill.
Issued October, 1987
37-189
3

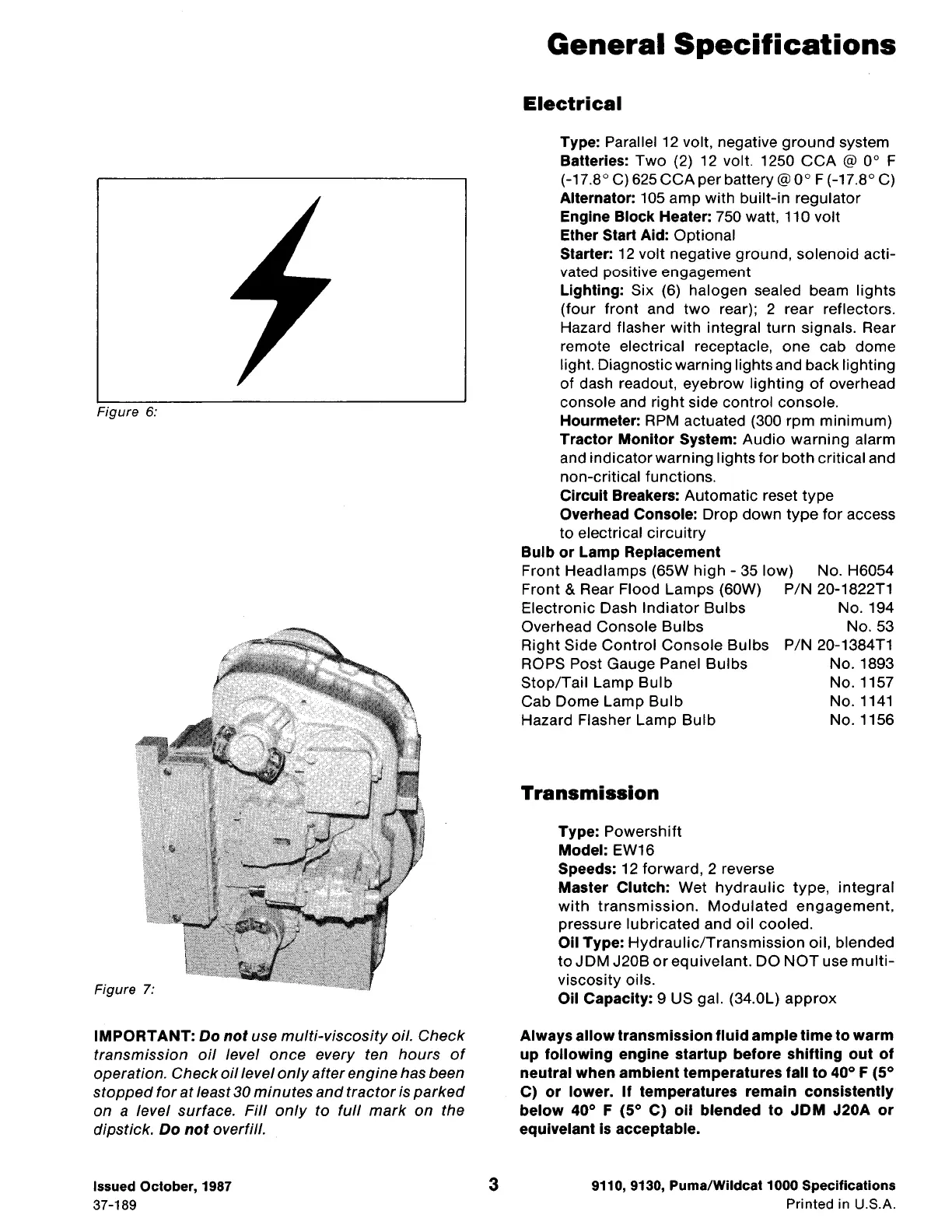

General Specifications
Electrical
Type: Parallel 12 volt, negative ground system
Batteries: Two (2) 12 volt. 1250 CCA @ 0° F
(-17.8° C) 625 CCA per battery@0° F (-17.8°
C)
Alternator: 105 amp with built-in regulator
Engine Block Heater: 750 watt, 110 volt
Ether Start Aid: Optional
Starter: 12 volt negative ground, solenoid acti-
vated positive engagement
Lighting: Six (6) halogen sealed beam lights
(four front and two rear); 2 rear reflectors.
Hazard flasher with integral turn signals. Rear
remote electrical receptacle, one cab dome
light. Diagnostic warning lights and back lighting
of dash readout, eyebrow lighting of overhead
console and right side control console.
Hourmeter: RPM actuated (300 rpm minimum)
Tractor Monitor System: Audio warning alarm
and indicator warning lights for both critical and
non-critical functions.
Circuit Breakers: Automatic reset type
Overhead Console: Drop down type for access
to electrical circuitry
Bulb or Lamp Replacement
Front Headlamps (65W high - 35 low) No. H6054
Front & Rear Flood Lamps (60W) P/N 20-1822T1
Electronic Dash lndiator Bulbs No. 194
Overhead Console Bulbs No. 53
Right Side Control Console Bulbs P/N 20-1384T1
ROPS Post Gauge Panel Bulbs No. 1893
Stop/Tail Lamp Bulb No. 1157
Cab Dome Lamp Bulb No. 1141
Hazard Flasher Lamp Bulb No. 1156
Transmission
Type: Powershift
Model: EW16
Speeds: 12 forward, 2 reverse
Master Clutch: Wet hydraulic type, integral
with transmission. Modulated engagement,
pressure lubricated and oil cooled.
Oil Type: Hydraulic/Transmission oil, blended
to JDM J20B orequivelant. DO NOT use multi-
viscosity oils.
Oil Capacity: 9 US gal. (34.0L) approx
Always allow transmission fluid ample time to warm
up following engine startup before shifting out of
neutral when ambient temperatures fall to 40° F (S
0
C) or lower. If temperatures remain consistently
below 40° F (S° C) oil blended to JDM J20A or
equivelant is acceptable.
9110, 9130, Puma/Wildcat 1000 Specifications
Printed in U.S.A.
