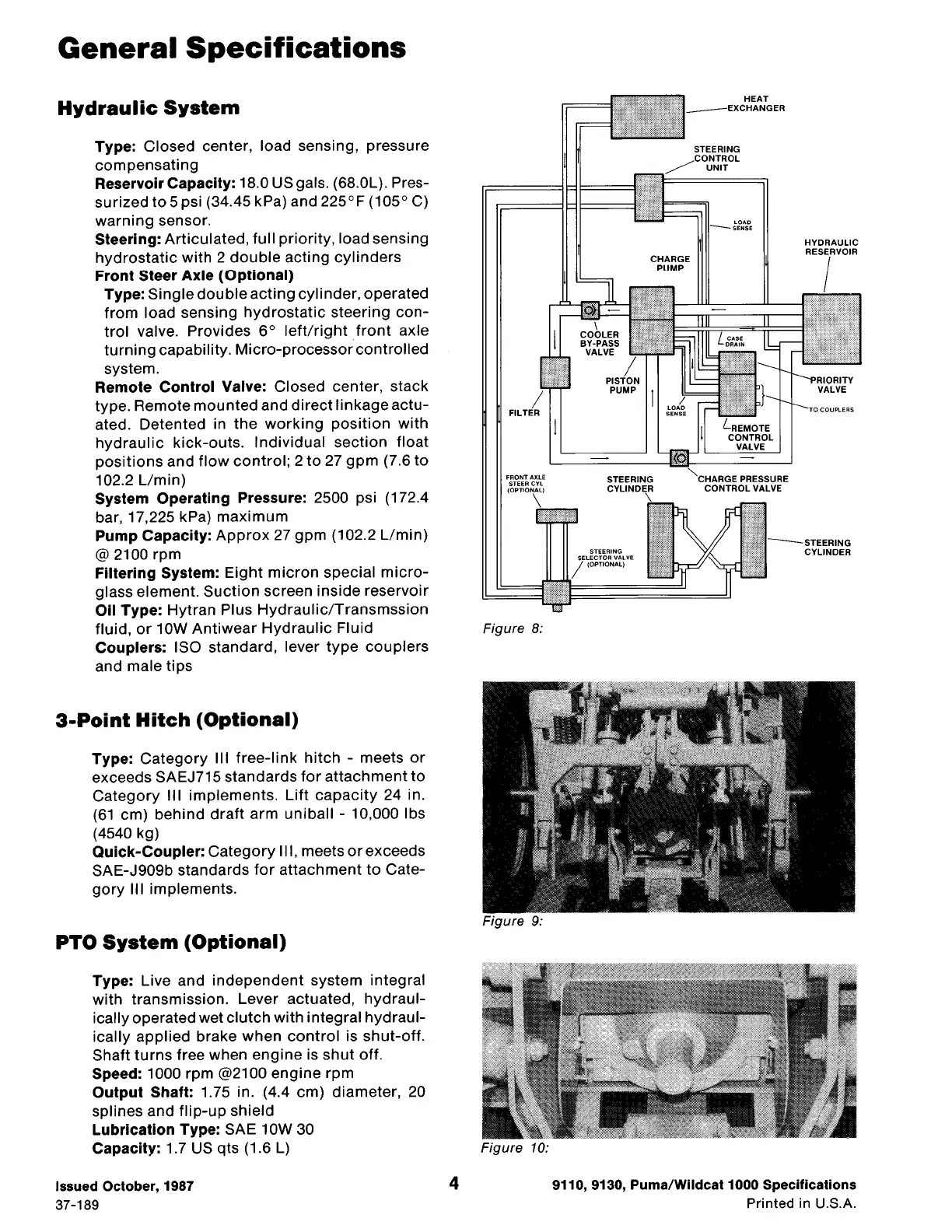

General Specifications
Hydraulic System
Type:
Closed center, load sensing, pressure
compensating
Reservoir Capacity:
18.0 US gals. (68.0L). Pres-
surized to 5 psi (34.45 kPa) and 225°F (105° C)
warning sensor.
Steering:
Articulated, full priority, load sensing
hydrostatic with 2 double acting cylinders
Front Steer Axle (Optional)
Type:
Single double acting cylinder, operated
from load sensing hydrostatic steering con-
trol valve. Provides 6° left/right front axle
turning capability. Micro-processor controlled
system.
Remote Control Valve:
Closed center, stack
type. Remote mounted and direct linkage actu-
ated. Detented in the working position with
hydraulic kick-outs. Individual section float
positions and flow control; 2 to 27 gpm (7.6 to
102.2 L/min)
System Operating Pressure:
2500 psi (172.4
bar, 17,225 kPa) maximum
Pump Capacity:
Approx 27 gpm (102.2 L/min)
@ 2100 rpm
Filtering System:
Eight micron special micro-
glass element. Suction screen inside reservoir
Oil Type:
Hytran Plus Hydraulic/Transmssion
fluid, or 10W Antiwear Hydraulic Fluid
Couplers:
ISO standard, lever type couplers
and male tips
3-Point Hitch (Optional)
Type:
Category Ill free-link hitch - meets or
exceeds SAEJ715 standards for attachment to
Category Ill implements. Lift capacity 24 in.
(61 cm) behind draft arm uniball - 10,000 lbs
(4540 kg)
Quick-Coupler:
Category
111,
meets or exceeds
SAE-J909b standards for attachment to Cate-
gory Ill implements.
PTO System (Optional)
Type:
Live and independent system integral
with transmission. Lever actuated, hydraul-
ically operated wet clutch with integral hydraul-
ically applied brake when control is shut-off.
Shaft turns free when engine is shut off.
Speed:
1000 rpm @2100 engine rpm
Output Shaft:
1.75 in. (4.4 cm) diameter, 20
splines and flip-up shield
Lubrication Type:
SAE
1
OW 30
Capacity:
1.7 US qts (1.6 L)
Issued October, 1987
37-189
4
I
FILTER
FRONT AXLE
STEERCYL
(OPTIONAL)
\
Figure B:
Figure 9:
Figure 10:
HEAT
-EXCHANGER
LOAD
--SENSE
CHARGE
PUMP
I
PISTON
PUMP
STEERING
CYLINDER
\
"-.CHARGE PRESSURE
CONTROL VALVE
HYDRAULIC
RESiRVOIR
-STEERING
CYLINDER
9110, 9130, Puma/Wildcat 1000 Specifications
