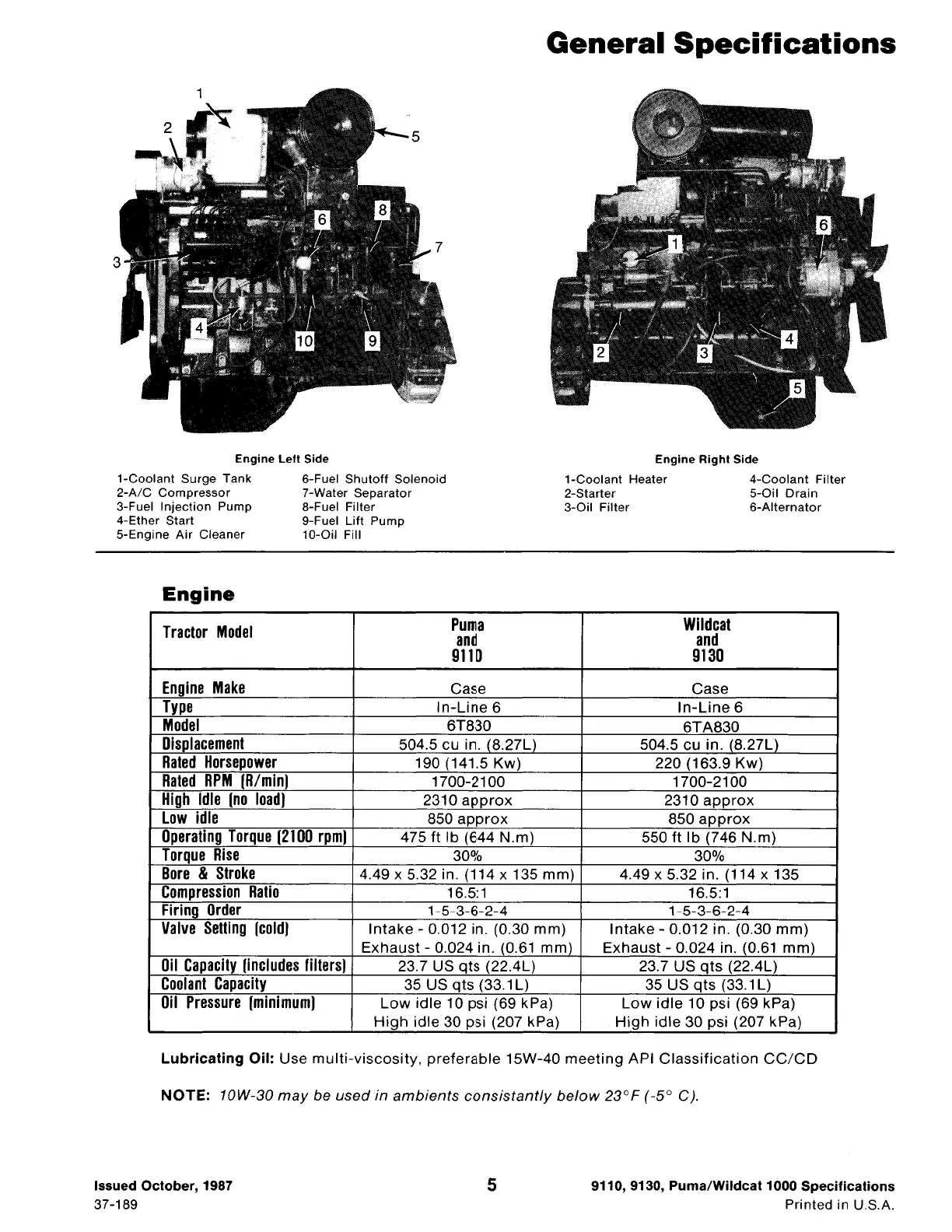

General Specifications
Engine Left Side
1-Coolant Surge Tank 6-Fuel Shutoff Solenoid
2-A/C Compressor 7-Water Separator
3-Fuel Injection Pump 8-Fuel Filter
4-Ether Start 9-Fuel Lift Pump
5-Engine Air Cleaner 10-Oil Fill
Engine
Tractor Model
Puma
and
9110
Engine Make
Case
Type
In-Line 6
Model
6T830
Displacement 504.5 cu in. (8.27L)
Rated Horsepower
190 (141.5 Kw)
Rated RPM (R/min)
1700-2100
High Idle (no load)
2310 approx
Low idle 850 approx
Operating Torque (2100 rpm)
475 ft lb (644 N.m)
Torque Rise
30%
Engine Right Side
1-Coolant Heater
2-Starter
4-Coolant Filter
5-Oil Drain
6-Alternator
3-Oil Filter
Wildcat
and
9130
Case
In-Line 6
6TA830
504.5 cu in. (8.27L)
220 (163.9 Kw)
1700-2100
2310 approx
850 approx
550 ft lb (746 N.m)
30%
Bore & Stroke
4.49 x 5.32 in. (114 x 135 mm) 4.49 X 5.32 in. (114 X 135
Compression Ratio
16.5:1 16.5:1
Firing Order 1-5-3-6-2-4 1-5-3-6-2-4
Valve Setting (cold)
Intake - 0.012 in. (0.30 mm) Intake - 0.012 in. (0.30 mm)
Exhaust - 0.024 in. (0.61 mm) Exhaust - 0.024 in. (0.61 mm)
Oil Capacity (includes filters)
23. 7 US qts (22.4L)
23.7 US qts (22.4L)
Coolant Capacity
35 US qts (33.1 L) 35 US qts (33.1 L)
Oil Pressure (minimum)
Low idle 10 psi (69 kPa) Low idle 10 psi (69 kPa)
High idle 30 psi (207 kPa) High idle 30 psi (207 kPa)
Lubricating Oil: Use multi-viscosity, preferable 15W-40 meeting API Classification CC/CD
NOTE: 10W-30 may be used in ambients consistantly below 23°F (-5° CJ.
Issued October, 1987
37-189
5
9110, 9130, Puma/Wildcat 1000 Specifications
