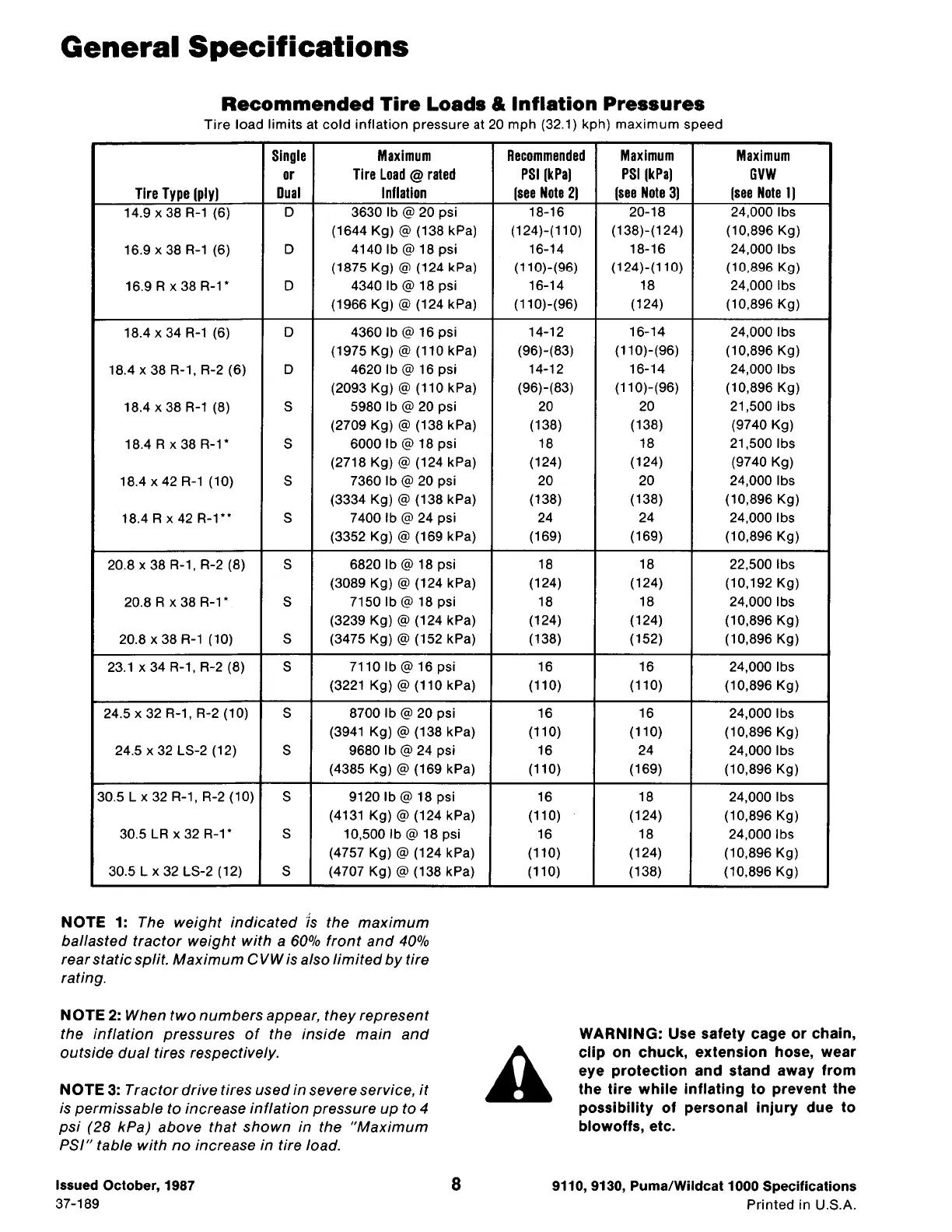

General Specifications
Recommended Tire Loads & Inflation Pressures
Tire load limits at cold inflation pressure at 20 mph (32.1) kph) maximum speed
Single Maximum
or Tire Load
@ rated
Tire Type [ply) Dual
Inflation
14.9 x 38 R-1 (6) D
3630 lb@ 20 psi
(1644 Kg)@ (138 kPa)
16.9x38R-1 (6)
D 4140 lb@ 18 psi
(1875 Kg)@ (124 kPa)
16.9 Ax 38 R-1 *
D
4340 lb@ 18 psi
(1966 Kg)@ (124 kPa)
18.4x34R-1 (6)
D
4360 lb@ 16 psi
(1975 Kg) @ (110 kPa)
18.4 x 38 R-1, R-2 (6)
D
4620 lb@ 16 psi
(2093 Kg)@ (110 kPa)
18.4x38R-1 (8)
s
5980 lb@ 20 psi
(2709 Kg)@ (138 kPa)
18.4 R x 38 R-1 *
s
6000 lb@ 18 psi
(2718 Kg)@ (124 kPa)
18.4x42R-1 (10)
s
7360 lb@ 20 psi
(3334 Kg)@ (138 kPa)
18.4 Rx 42 R-1**
s
7400 lb@ 24 psi
(3352 Kg)@ (169 kPa)
20.8 x 38 R-1, R-2 (8)
s
6820 lb@ 18 psi
(3089 Kg)@ (124 kPa)
20.8 Ax 38 R-1*
s
7150 lb@ 18 psi
(3239 Kg)@ (124 kPa)
20.8 x 38 R-1 (10)
s
(3475 Kg)@ (152 kPa)
23.1 x 34 R-1, R-2 (8)
s
7110 lb@16 psi
(3221 Kg)@ (110 kPa)
24.5 x 32 R-1, R-2 (10)
s
8700 lb @ 20 psi
(3941 Kg)@ (138 kPa)
24.5 x 32 LS-2 (12)
s
9680 lb@ 24 psi
(4385 Kg) @ (169 kPa)
30.5 L x 32 R-1, R-2 (10)
s
9120 lb@ 18 psi
(4131 Kg)@ (124 kPa)
30.5 LR x 32 R-1*
s 10,500 lb@ 18 psi
(4757 Kg)@ (124 kPa)
30.5 L x 32 LS-2 (12)
s (4707 Kg)@ (138 kPa)
NOTE 1: The weight indicated is the maximum
ballasted tractor weight with a 60% front and 40%
rear static split. Maximum CVW is also limited by tire
rating.
NOTE 2: When two numbers appear, they represent
the inflation pressures of the inside main and
outside dual tires respectively.
NOTE 3: Tractor drive tires used in severe service, it
is permissable to increase inflation pressure up to 4
psi (28 kPa) above that shown in the "Maximum
PSI" table with no increase in tire load.
Issued October, 1987
37-189
8
Recommended
Maximum
Maximum
PSI [kPa)
PSI [kPa)
GVW
[see Note
2)
(see Note 3)
[see Note
1)
18-16 20-18 24,000 lbs
(124)-(110) (138)-(124) (10,896 Kg)
16-14
(110)-(96)
16-14
(110)-(96)
14-12
(96)-(83)
14-12
(96)-(83)
20
(138)
18
(124)
20
(138)
24
(169)
18
(124)
18
(124)
(138)
16
(110)
16
(110)
16
(110)
16
(110)
16
(110)
(110)
A
18-16
24,000 lbs
(124)-(110) (10,896 Kg)
18 24,000 lbs
(124)
(10,896 Kg)
16-14 24,000 lbs
(110)-(96)
(10,896 Kg)
16-14
24,000 lbs
(110)-(96) (10,896 Kg)
20
21,500 lbs
(138) (9740 Kg)
18 21,500 lbs
(124) (9740 Kg)
20
24,000 lbs
(138) (10,896 Kg)
24 24,000 lbs
(169) (10,896 Kg)
18 22,500 lbs
(124) (10,192 Kg)
18 24,000 lbs
(124) (10,896 Kg)
(152)
(10,896 Kg)
16 24,000 lbs
(110) (10,896 Kg)
16
24,000 lbs
(110) (10,896 Kg)
24 24,000 lbs
(169) (10,896 Kg)
18 24,000 lbs
(124)
(10,896 Kg)
18
24,000 lbs
(124) (10,896 Kg)
(138) (10,896 Kg)
WARNING: Use safety cage or chain,
clip on chuck, extension hose, wear
eye protection and stand away from
the tire while inflating to prevent the
possibility of personal injury due to
blowoffs, etc.
9110, 9130, Puma/Wildcat 1000 Specifications
Printed in U.S.A.
