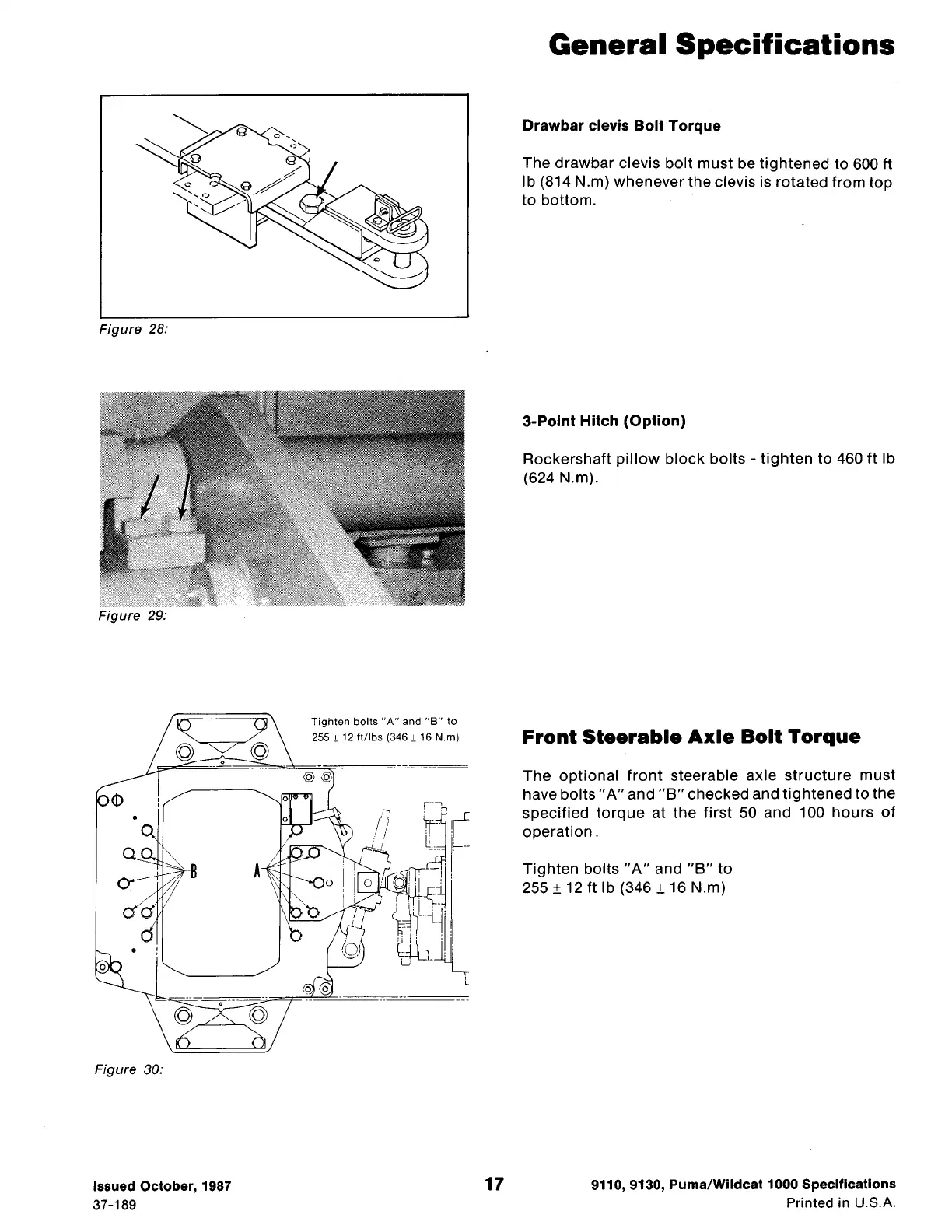

Figure 28:
Figure 29:
Figure 30:
Issued October, 1987
37-189
Tighten bolts "A" and "B" to
255
! 12 ft/lbs (346 ± 16 N.m)
17
General Specifications
Drawbar clevis Bolt Torque
The drawbar clevis bolt must be tightened to 600 ft
lb (814 N.m) whenever the clevis is rotated from top
to bottom.
3-Point Hitch (Option)
Rockershaft pillow block bolts - tighten to 460 ft lb
(624 N.m).
Front Steerable Axle Bolt Torque
The optional front steerable axle structure must
have bolts" A" and "B" checked and tightened to the
specified torque at the first 50 and 100 hours of
operation.
Tighten bolts
"A" and "B" to
255 ± 12 ft lb (346 ± 16 N.m)
9110, 9130, Puma/Wildcat 1000 Specifications
Printed in U.S.A.
To Next Page
