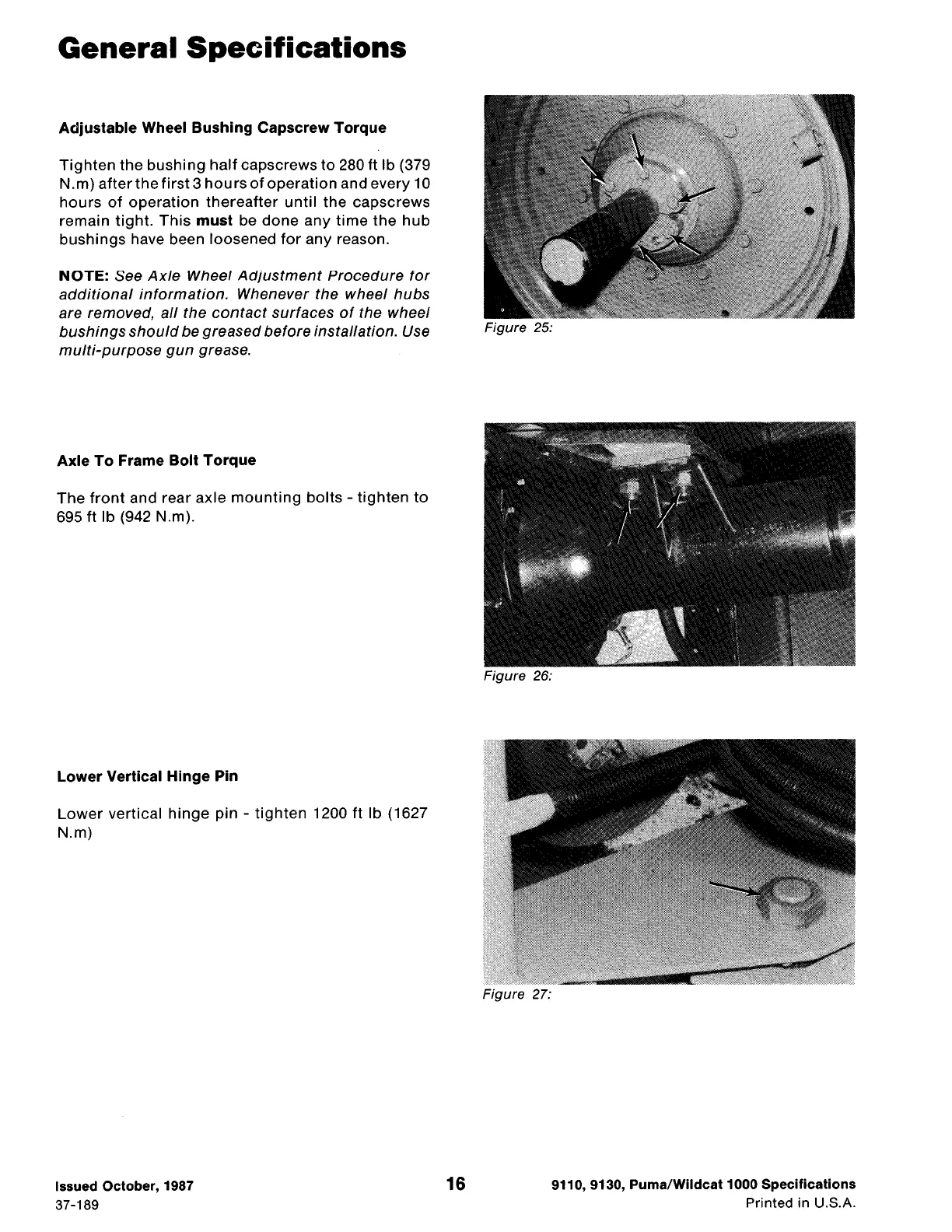

General Specifications
Adjustable Wheel Bushing Capscrew Torque
Tighten the bushing half capscrews to 280 ft lb (379
N.m) after the first 3 hours of operation and every 10
hours of operation thereafter until the capscrews
remain tight. This must be done any time the hub
bushings have been loosened for any reason.
NOTE: See Axle Wheel Adjustment Procedure for
additional information. Whenever the wheel hubs
are removed, all the contact surfaces of the wheel
bushings should be greased before installation. Use
multi-purpose gun grease.
Axle To Frame Bolt Torque
The front and rear axle mounting bolts - tighten to
695 ft lb (942 N.m).
Lower Vertical Hinge Pin
Lower vertical hinge pin - tighten 1200 ft lb (1627
N.m)
Issued October, 1987
37-189
16
Figure 25:
Figure 26:
Figure 27:
9110, 9130, Puma/Wildcat 1000 Specifications
Printed in U.S.A.
