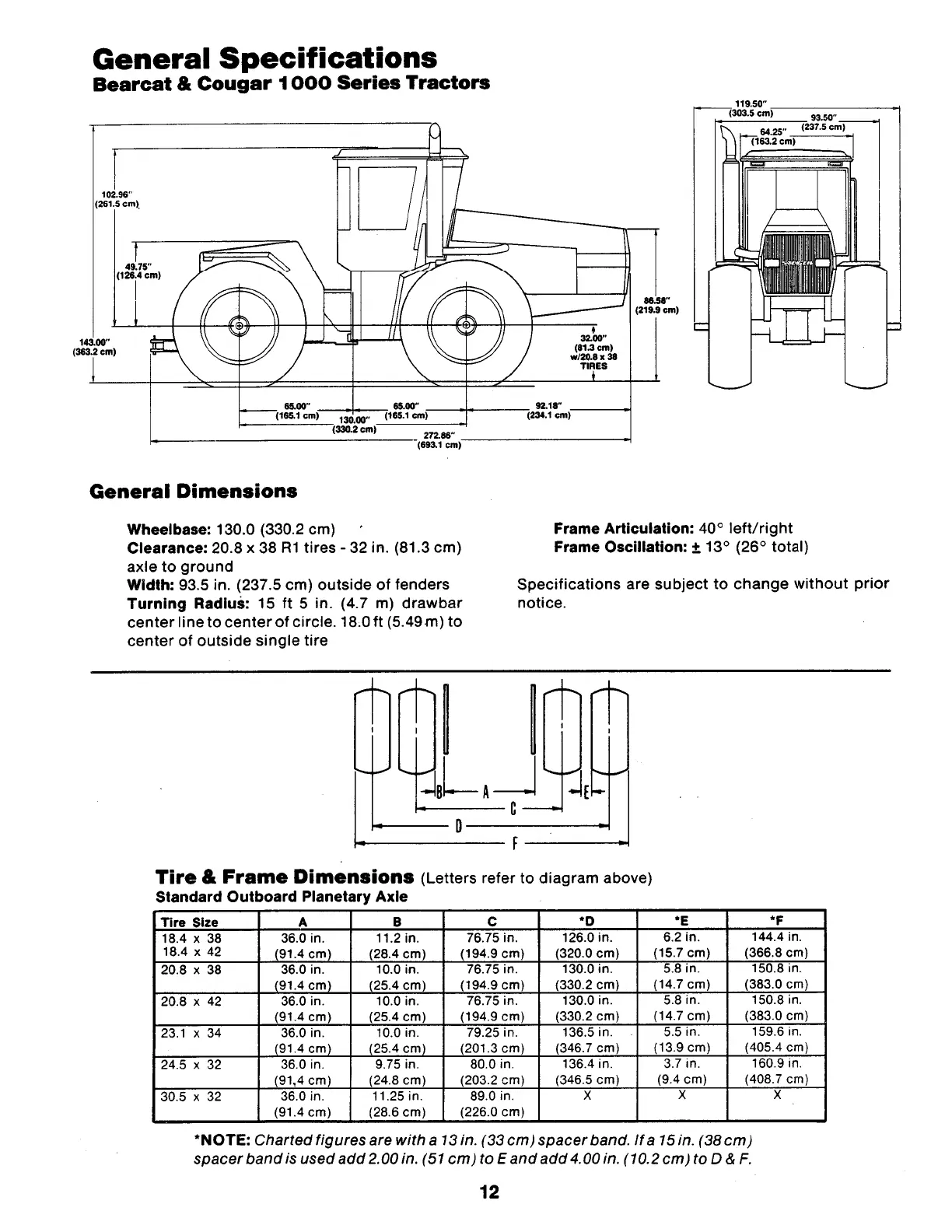

General Specifications
Bearcat & Cougar 1000 Series Tractors
102.96"
(261.5
cm).
143.00"
(363.2cm)
49.75'"
(126.4cm)
I
♦
32.00"
(81.3cm)
w/20.8x 38
TIRES
65.00" 65.00" 92.18"
(165.1 cm)·--
13
-+-
0
_
00
-.-. --,(165.1 cm)---i-----,(234.1 cm).-------i
i-------o(330.2cm)---
2
-72.-
95
-.. -
i---------------(693.1
cm) ________ ___,
86.58"
(219.9cm)
General Dimensions
Wheelbase:
130.0 (330.2 cm)
Frame Articulation:
40° left/right
Clearance:
20.8 x 38 R1 tires - 32 in. (81.3 cm)
axle to ground
Frame Oscillation:±
13° (26° total)
Width:
93.5 in. (237.5 cm) outside of fenders
Turning Radius:
15 ft 5 in. (4.7 m) drawbar
center line to center of circle. 18.0 ft (5.49m) to
center of outside single tire
Specifications are subject to change without prior
notice.
Tire & Frame Dimensions
(Letters refer to diagram above)
Standard Outboard Planetary Axle
Tire Size A
B
C
·o
18.4
X
38
36.0 in. 11.2 in. 76.75 in. 126.0 in.
18.4
X
42
(91.4 cm)
(28.4 cm)
(194.9 cm) (320.0 cm)
20.8
X
38
36.0 in.
10.0 in.
76.75 in. 130.0 in.
/91.4 cm)
/25.4 cm)
(194.9 cm) (330.2 cm)
20.8
X
42
36.0 in.
10.0 in.
76.75 in. 130.0 in.
(91.4cm)
(25.4 cm)
(194.9 cm) (330.2 cm)
23.1
X
34 36.0 in. 10.0 in. 79.25 in. 136.5 in.
(91.4cm)
(25.4 cm) (201.3 cm) (346.7 cm)
24.5
X
32 36.0 in. 9.75 in. 80.0 in. 136.4 in.
(91,4 cm) (24.8 cm) (203.2 cm) (346.5 cm)
30.5
X
32 36.0 in. 11.25 in. 89.0 in.
X
(91.4 cm)
(28.6 cm)
(226.0 cm)
*E *F
6.2 in.
144.4 in.
(15.7 cm) (366.8 cm)
5.8 in. 150.8in.
(14.7 cm) (383.0 cm)
5.8 in.
150.8 in.
(14.7 cm)
(383.0 cm)
5.5 in. 159.6in.
(13.9 cm) (405.4 cm)
3.7 in. 160.9 in.
(9.4 cm) (408.7 cm)
X X
*NOTE:
Charted figures are with a 13 in. (33 cm) spacer band.
If
a 15 in. (38cm)
spacer band is used add 2.00 in. (51 cm) to E and add 4.00 in. (10.2cm) to D
&
F.
