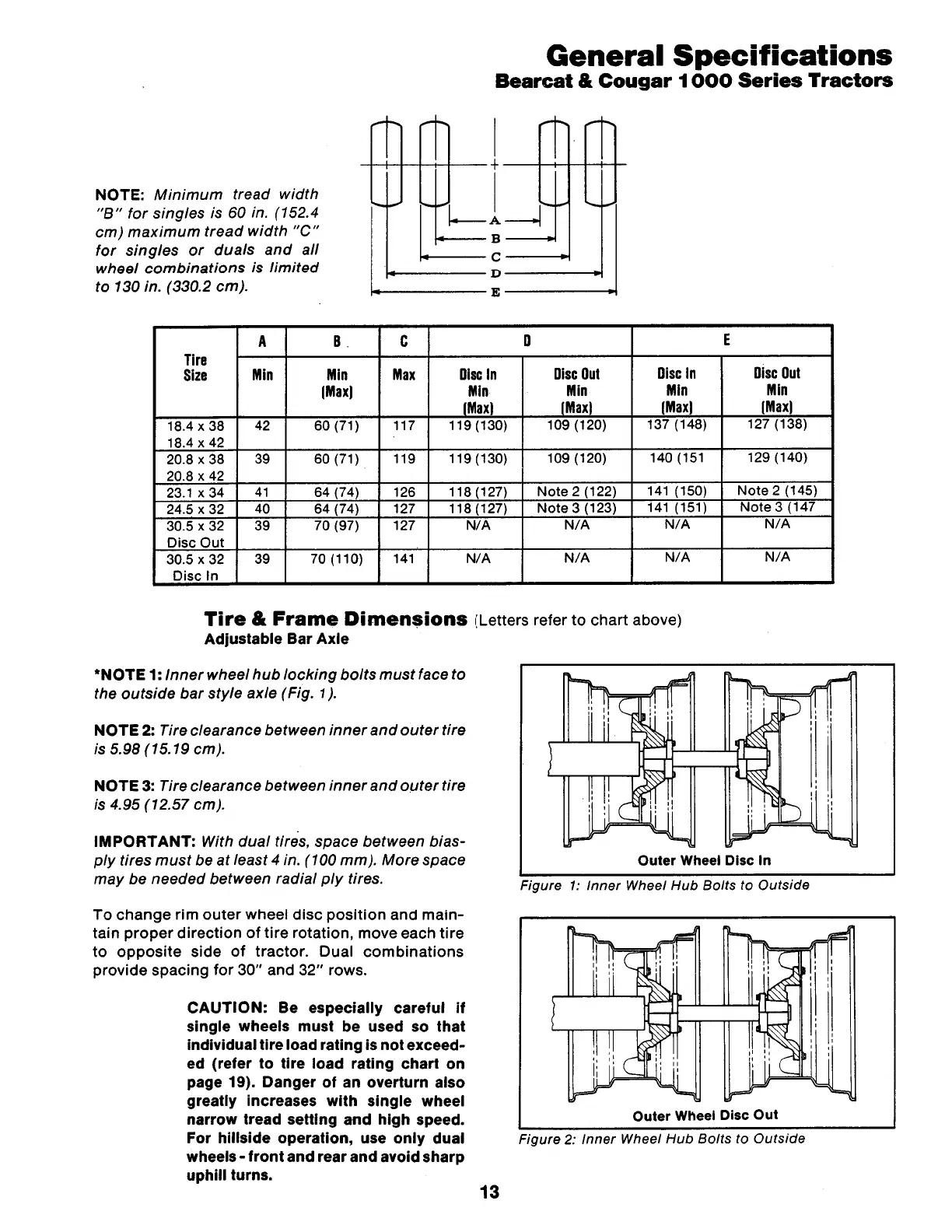

General Specifications
Bearcat & Cougar 1000 Series Tractors
I
-t--t--t--+--t-t---
+
---1---+--lf-+-+-
NOTE:
Minimum tread width
"B" for singles
is 60 in. (152.4
cm) maximum tread width
"C"
for singles or duals and all
wheel combinations
is
limited
to 130 in. (330.2 cm).
A
B.
Tire
Size
Min Min
(Max)
18.4
X
38
42 60 (71)
18.4
X
42
20.8
X
38 39
60 (71)
20.8
X
42
23.1
X
34
41 64 (74)
24.5
X
32
40 64 (74)
30.5
X
32 39
70 (97)
Disc Out
30.5
X
32 39
70 (110)
Disc In
[. _ _J
~
---B--.,.
----c---
-----D-----
------E-----..,.
C
D
Max
Disc In
Disc
Out
Min
Min
(Max) !Max)
117
119(130) 109 (120)
119 119(130)
109 (120)
126
118 (127) Note 2 (122)
127
118 (127) Note 3 (123)
127
N/A
N/A
141
N/A N/A
E
Disc
In
Disc
Out
Min Min
(Max) (Max)
137 (148) 127 (138)
140 (151 129 (140)
141 (150) Note 2 (145)
141 (151) Note3 (147
N/A
N/A
N/A N/A
Tire & Frame Dimensions
(Letters refer to chart above)
Adjustable Bar Axle
*NOTE 1:
Inner wheel hub locking bolts must face to
the outside bar style axle ( Fig.
1 ).
NOTE 2:
Tire clearance between inner and outer tire
is
5.98 (15.19 cm).
NOTE 3:
Tire clearance between inner and outer tire
is
4.95 (12.57 cm).
IMPORTANT:
With dual tires, space between bias-
ply tires must be at least 4 in. (100 mm). More space
may be needed between radial ply tires.
To change rim outer wheel disc position and main-
tain proper direction of tire rotation, move each tire
to opposite side of tractor. Dual combinations
provide spacing for 30" and 32" rows.
CAUTION: Be especially careful if
single wheels must be used so that
individual tire load rating is not exceed-
ed (refer to tire load rating chart on
page
19).
Danger of an overturn also
greatly increases with single wheel
narrow tread setting and high speed.
For hillside operation, use only dual
wheels - front and rear and avoid sharp
uphill turns.
Outer Wheel Disc In
Figure 1: Inner Wheel Hub Bolts to Outside
Outer Wlieel Disc Out
Figure 2: Inner Wheel Hub Bolts to Outside
13
