4 - 44
DIAGNOSTIC - SELECTION
CASE TRAINING CENTER
AUGUST 2000

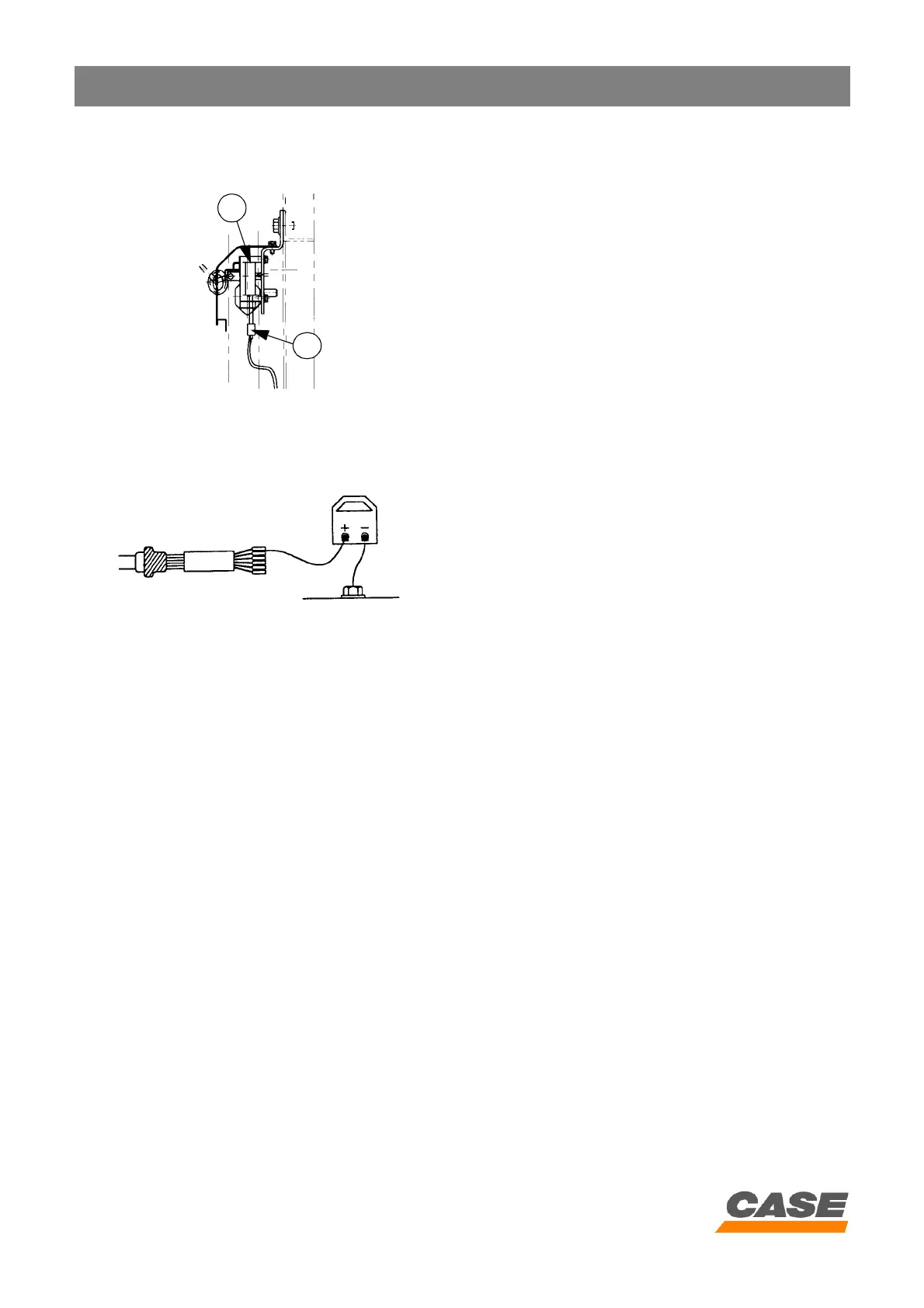

Engine emergency stop motor
CS00E535
1. Disconnect connector (A) from the engine
emergency stop motor (B).
CS99A846
2. Connect the appropriate service connector (6P) to
the connector at the main harness end only.
3. Make sure that wire LR (blue/red) on the service
connector is connected to wire LR on the main
harness and install the meter.
NOTE: The + terminal on the meter must be
connected to wire LR (blue/red) on the service
connector and the - terminal to the machine earth.
4. Turn the starter switch key to "ON", the meter reading
should be 24 V.
B
A
