ELECTRIC CIRCUIT
5 - 6
CASE TRAINING CENTER
AUGUST 2000
Model CX210
CI00E502

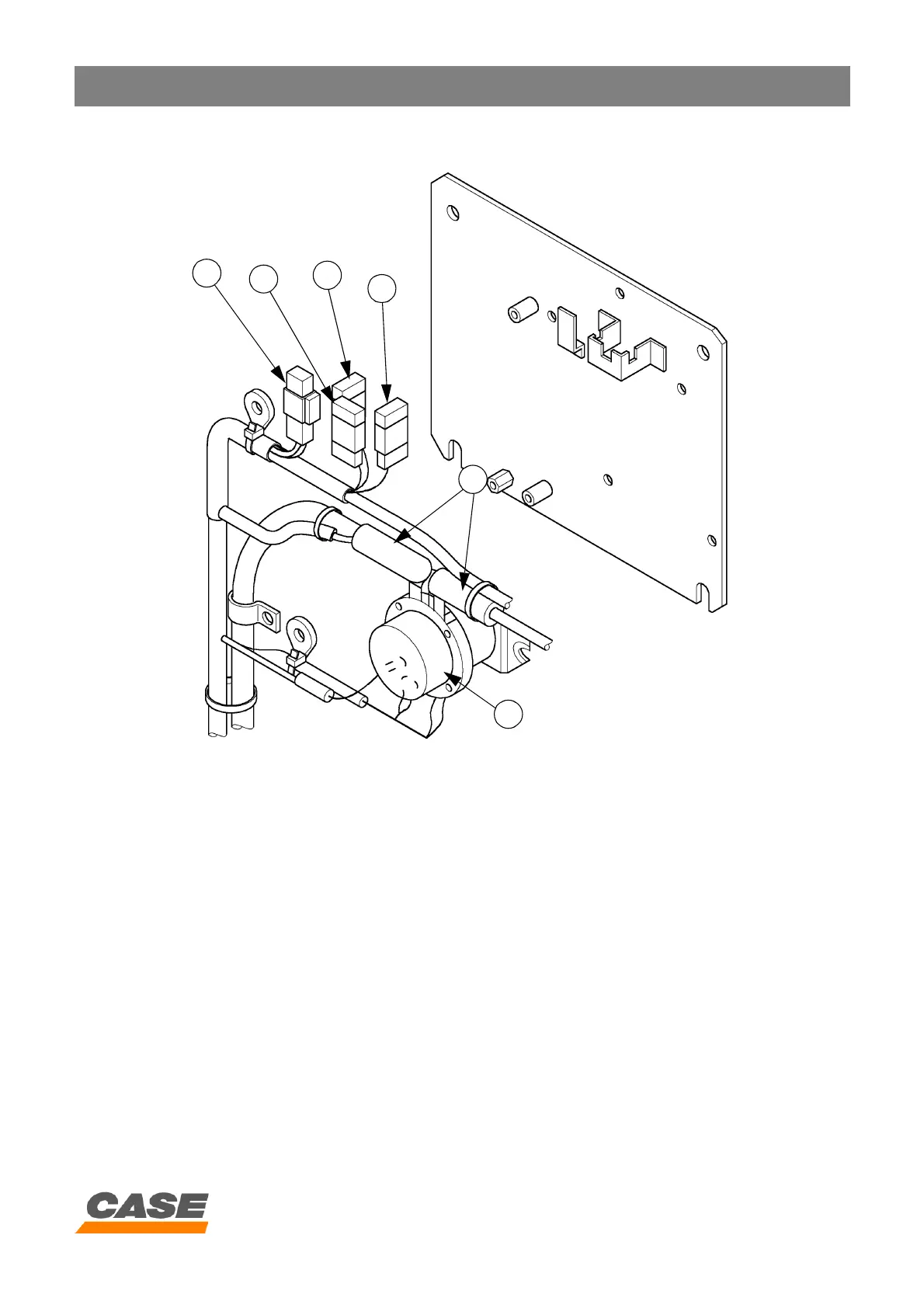

1. Battery relay
2. Fuse 65A: protection of circuits F3 to F10 and F13 to F20A
3. Fuse 20A: protection of circuits F11 and F12 (before contact)
4. Fuse 20A: protection of circuits F1
5. Fuse 20A: protection of circuits F2
6. Battery cables
6
1
2
3
5
4
