HYDRAULIC PRESSURE SETTINGS
CASE TRAINING CENTER
AUGUST 2000

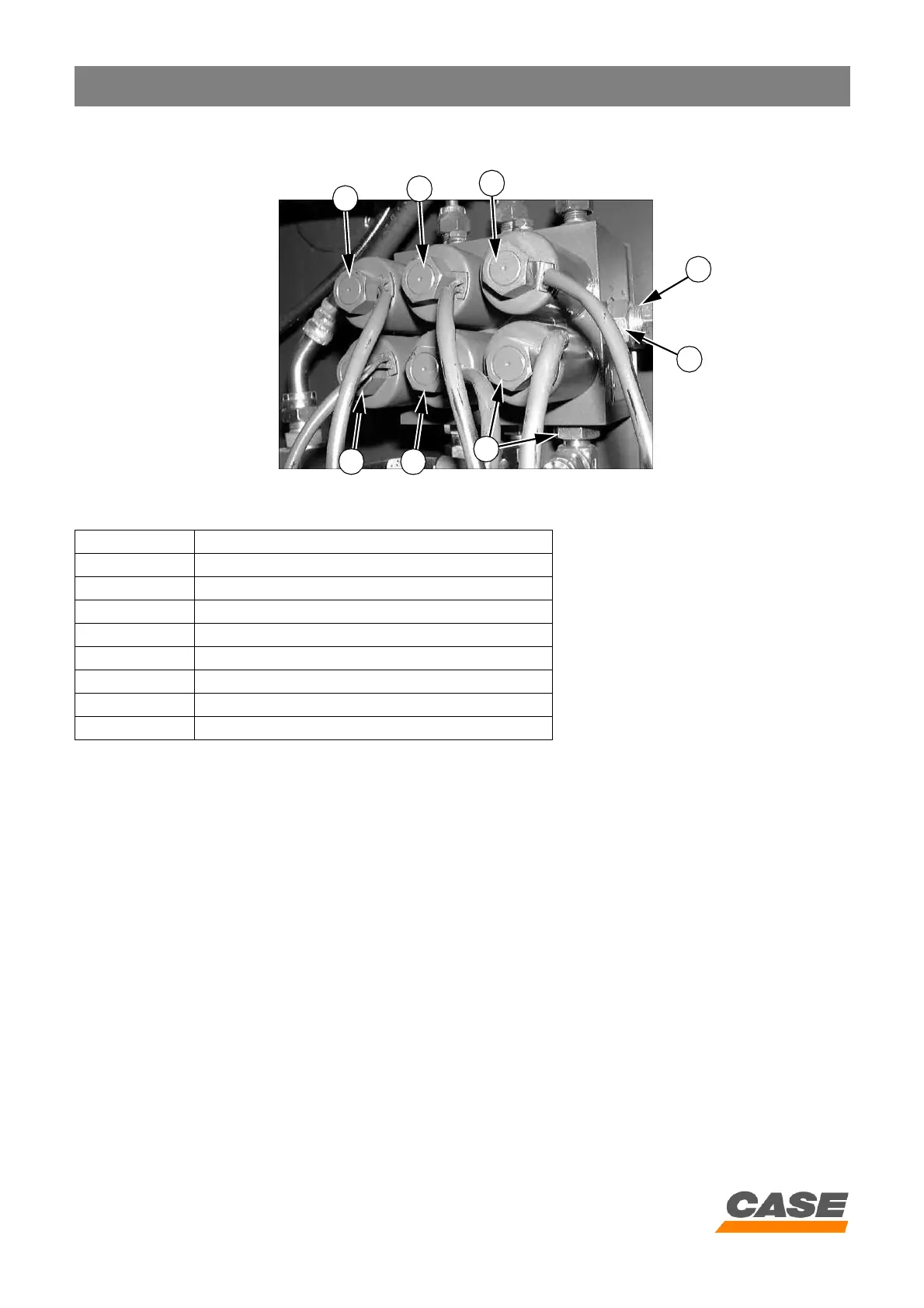

6 solenoid valve manifold
CD00E143
Port Description
B Supply to pilot manifold
T Return to reservoir
C1 Select 2nd travel speed
C2 Swing brake control
C3 Higher pressure - 2-stage relief
C4 Cancel pilot system shock absorbing
C5 Cancel swing piloting
P Pilot pressure cancellation control
C5
C4
C2
C3
C1
T
B
P
