HYDRAULIC PRESSURE SETTINGS
7 - 17
CASE TRAINING CENTER
AUGUST 2000

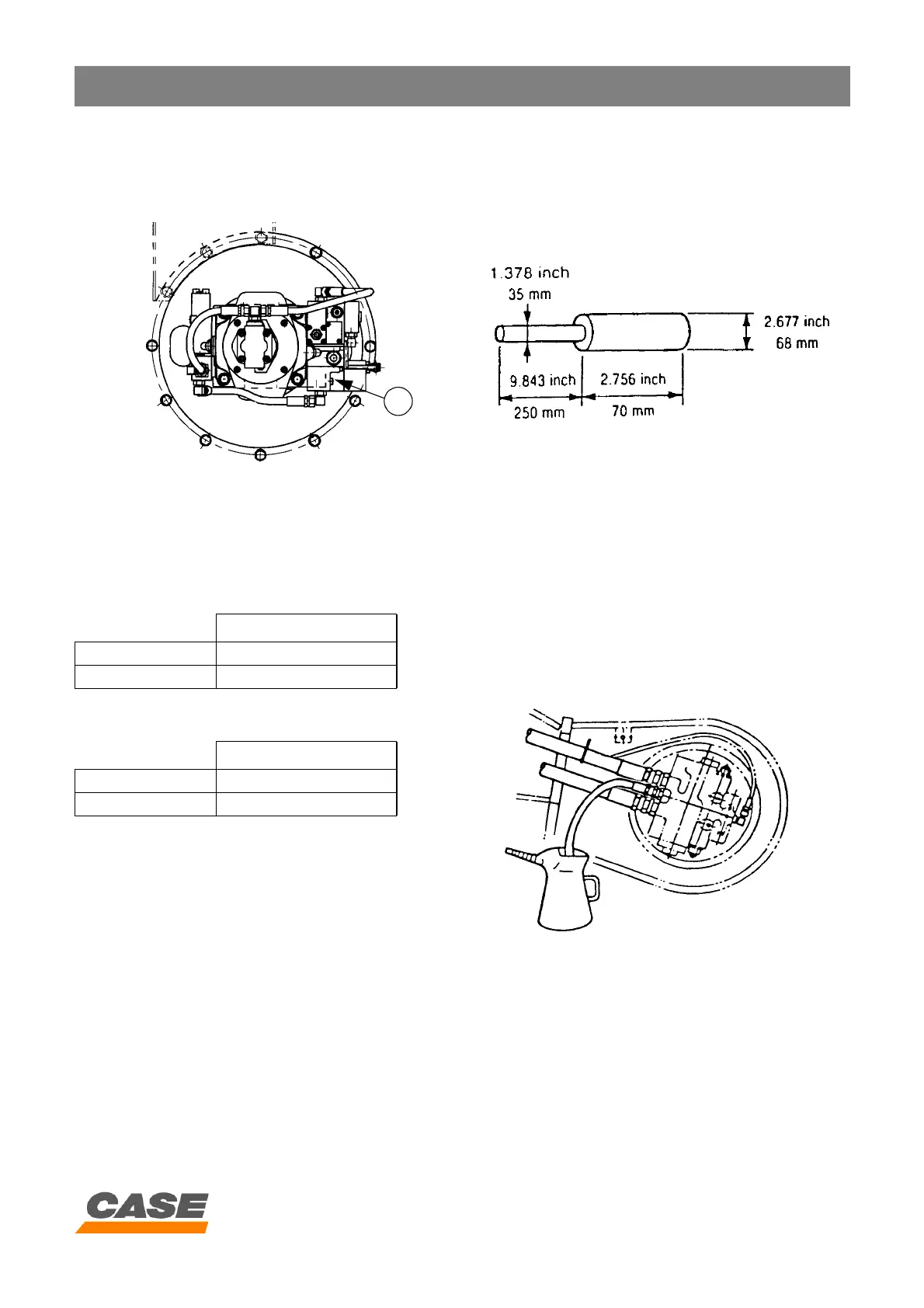

Checking the pressure delivered by
the proportional valve
CX130
CS00E542
1. Connect a pressure test point and a 0-100 bar
pressure gauge to port G3 (CX130) or a4 (CX210)
on the pump.
2. Display the diagnostic screen "CHK1".
3. With the engine at full speed, select mode "H".
4. With the engine at full speed, select mode "S".
Checking for leaks on the travel
motor
Tools required
CS99B579
1 locking pin of above dimensions
1 receptacle of10 litres capacity
1 hose
1 plug
Checking for leaks
(With the hydraulic oil between 45 and 55°C)
1. Press the breather to release pressure in the
hydraulic reservoir.
2. Remove the travel motor protective shield.
CS00E546
3. Disconnect the drain hose from the hydraulic
motor and plug it.
4. Use a hose to connect the drain port to the
receptacle.
CX130
Pressure 15.2 to 19.2 bar
Amperage 600 mA
CX130
Pressure 9.2 to 13.2 bar
Amperage 450 mA
G3
