Case CX210B - Page 28

Issued 09-2014
1002-19
Rotating Joint
Operating pressure
High pressure passage (ABCD) ............................................................................................... 34.3 MPa (4975 psi)
Drain port (E).............................................................................................................................. 0.5 MPa (72.52 psi)
Pilot port (F)................................................................................................................................... 3.9 MPa (566 psi)
Flow
High pressure passage (ABCD) ............................................................................................ 234 L/min (61.82 gpm)
Drain port (E)............................................................................................................................. 10 L/min (2.64 gpm)
Pilot port (F)............................................................................................................................... 21 L/min (5.55 gpm)
Port A; forward right ................................................................................................................................................G3/4
Port B; forward left ..................................................................................................................................................G3/4
Port C; backward right ............................................................................................................................................G3/4
Port D; backward left...............................................................................................................................................G3/4
Port E; drain port ....................................................................................................................................................G1/2
Port F; pilot port .....................................................................................................................................................G1/4
Solenoid Valve
Maximum flow.......................................................................... P -> B: 25 L/min (6.60 gpm) Other: 5 L/min (1.32 gpm)
Rated pressure ............................................................................................................................. 4.5 MPa (652.67 psi)
Port size
P, T, B port ..........................................................................................................................................................G3/8
C1, C2, C3, C4, C5 port .....................................................................................................................................G1/4
Solenoid specifications
Operating voltage ................................................................................................................................ DC 20 to 32 V
Power consumption .................................................................................................................................. 17 W max.

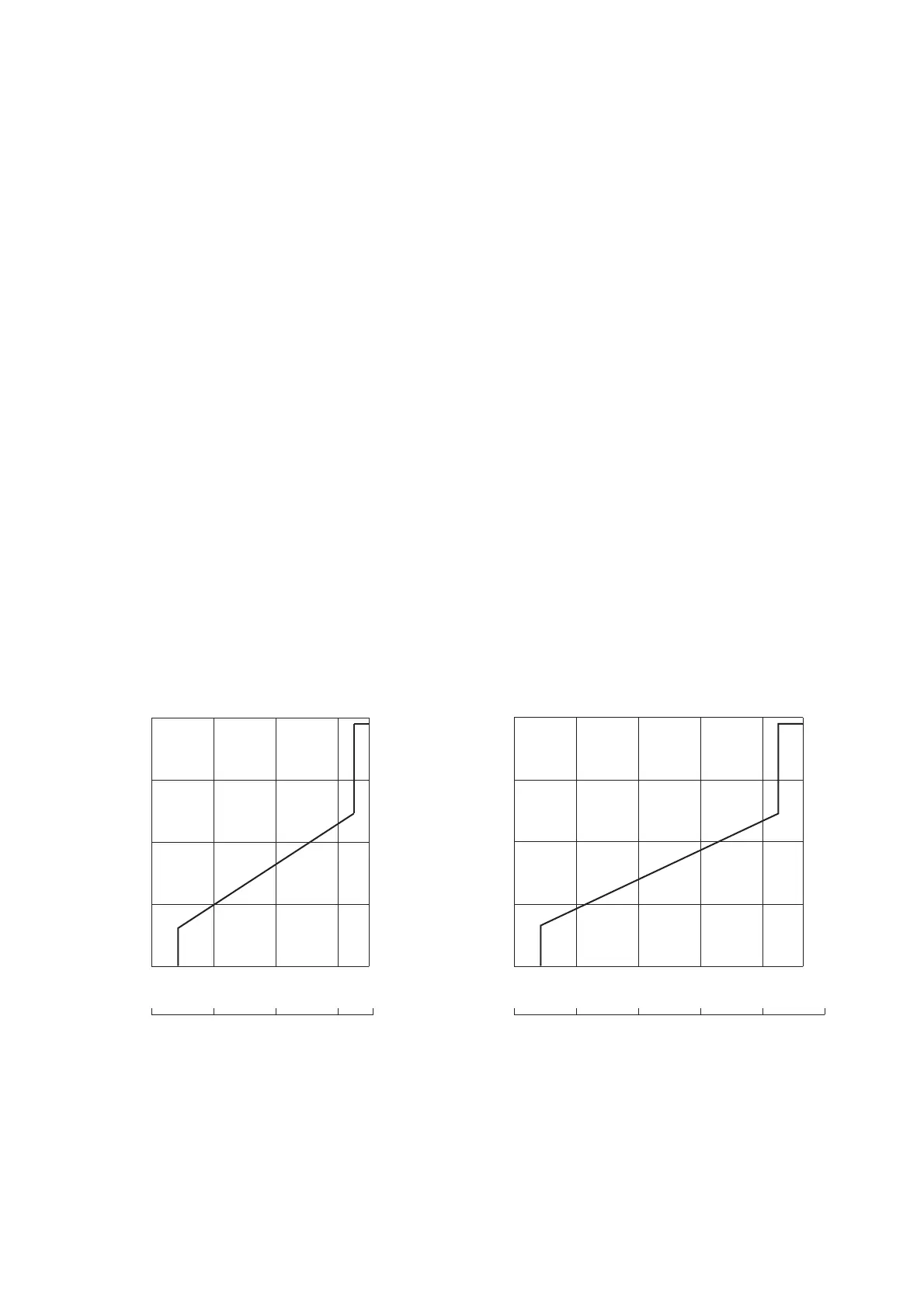

Hand control valve
Manufacturer................................................................................................................................................... Kawasaki
Operating pressure .......................................................................................................................... 3.92 MPa (569 psi)
Secondary pressure, primary short type .......................................................... 0.64 to 2.45 MPa (92.82 to 355.34 psi)
Operating angle
Ports 1, 3 .............................................................................................................................................................. 19°
Ports 2, 4 .............................................................................................................................................................. 25°
RST-03-01-001B
0
1.0
2.0
3.0
4.0
24 67
0 5 10 15 19
0
1.0
2.0
3.0
4.0
24689.4
20 250 5 10 15
Port 1, 3
Port 2, 4
Push rod stroke (mm)
Push rod stroke (mm)
Operating angle (deg.)
Operating angle (deg.)
Secondary pressure (MPa)
Secondary pressure (MPa)
