Case CX210B - Page 49

Issued 09-2014
1002-40

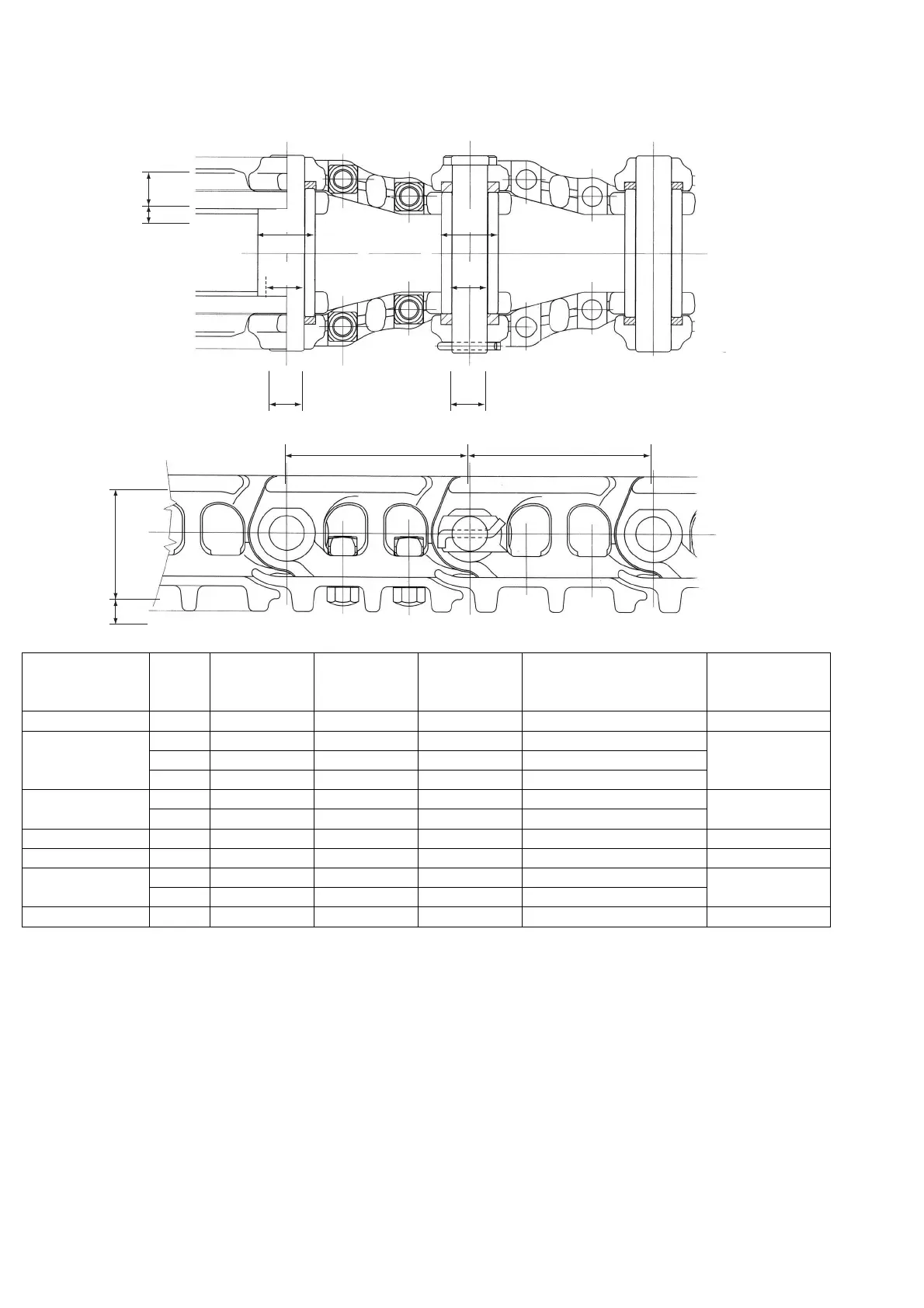

Track
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Shoe plate a 34.5 21.5 Acceptable/Unacceptable Replacement
Link
b 106 101 Acceptable/Unacceptable
Cladding by welding
or replacement
c 37.985 36 Acceptable/Unacceptable
d 17.95 16 Acceptable/Unacceptable
Master bushing
e Ø Ø58.72 Ø57.5 Acceptable/Unacceptable
Replacement
f Ø Ø37.3 Ø38.3 Acceptable/Unacceptable
Master pin g Ø Ø36.3 Ø35.5 Acceptable/Unacceptable Replacement
Link pitch h 190 195 Acceptable/Unacceptable Replacement
Tra c k b u s h i n g
e’ Ø Ø58.72 Ø57.5 Acceptable/Unacceptable
Replacement
f’ Ø Ø37.3 Ø38.3 Acceptable/Unacceptable
Track pin g’ Ø Ø36.65 Ø35.5 Acceptable/Unacceptable Replacement
ab
cd
hh
e
e'
ff'
gg'
RI14001-005
