COMPONENT LOCATIONS
2 - 16
CX EXCAVATORS

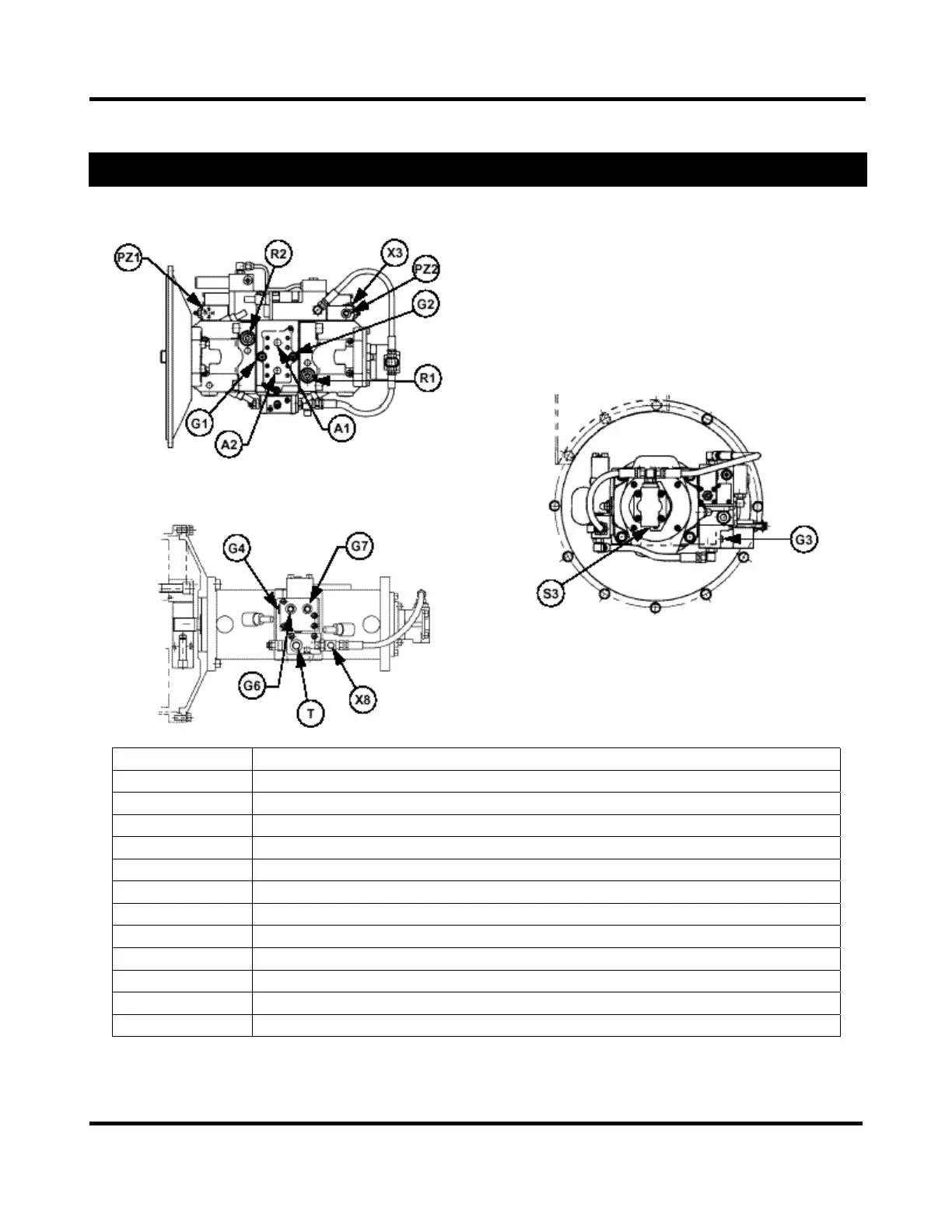

PUMP PORTS
CX130 / CX160
Port Description
A1 - A2 Pump output (P1-P2)
X8 Pilot pump output
S Main pump intake
S3 Pilot pump intake
T Return from pilot circuit relief valve
PZ1 - PZ2 Neutral de-stoke signal (P1-P2)
X3 Neutral de-stroke signal pressure transducer (arm pump)
G1 - G2 Pressure P1-P2 (plugged)
G3 Proportional valve pressure (plugged)
G4 - G5 Pump pressure P1-P2 (plugged)
G6 - G7 Pressure transducers P1-P2
R1 - R2 Filling and bleeding
