Case CX240B - Sprocket Dimensions and Wear Limits

Issued 09-2014
1002-36

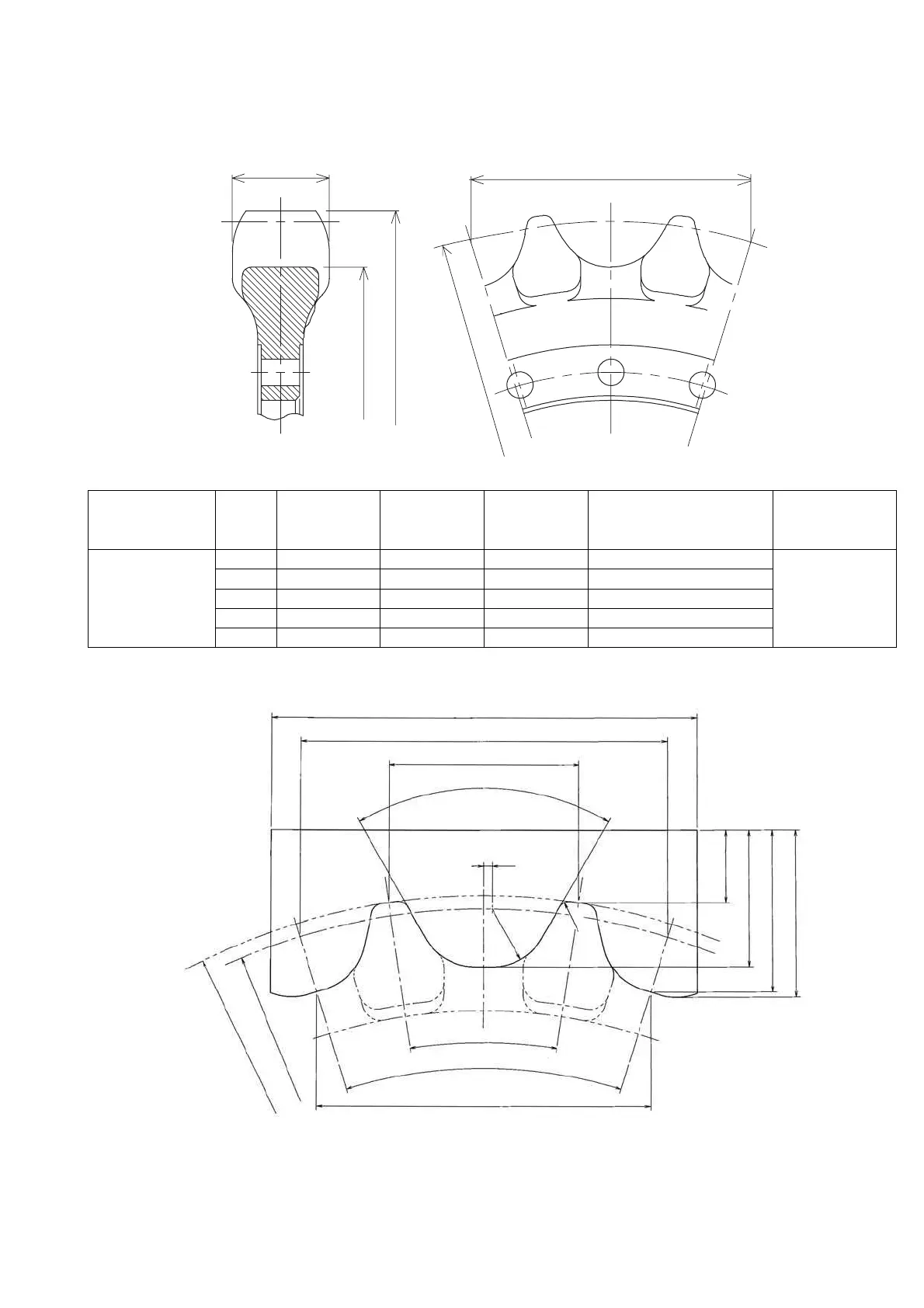

DIMENSIONS AND WEAR LIMIT OF THE TRACK ASSEMBLY
Sprocket
Gauge
unit in mm
Part name Code
Measured
dimensions
(mm)
Standard
value (mm)
Usage limit
(mm)
Judgment Solution
Sprocket
a 66 60 Acceptable/Unacceptable
Cladding by welding
or replacement
b Ø Ø585.5 Ø579.5 Acceptable/Unacceptable
c Ø Ø659 Ø653 Acceptable/Unacceptable
d Ø Ø644.6 - Acceptable/Unacceptable
p 190 - Acceptable/Unacceptable
RI14001-001
a
b c
d
p
220
(190)
(98.1)
(37.2)
70
(83)
(85.7)
60˚
4.5
17.1˚
34.3˚
(172.6)
R29.5
P.C.D. 644.6
R329.2
R6
