Case CX240B - Page 50

Issued 09-2014
1002-41

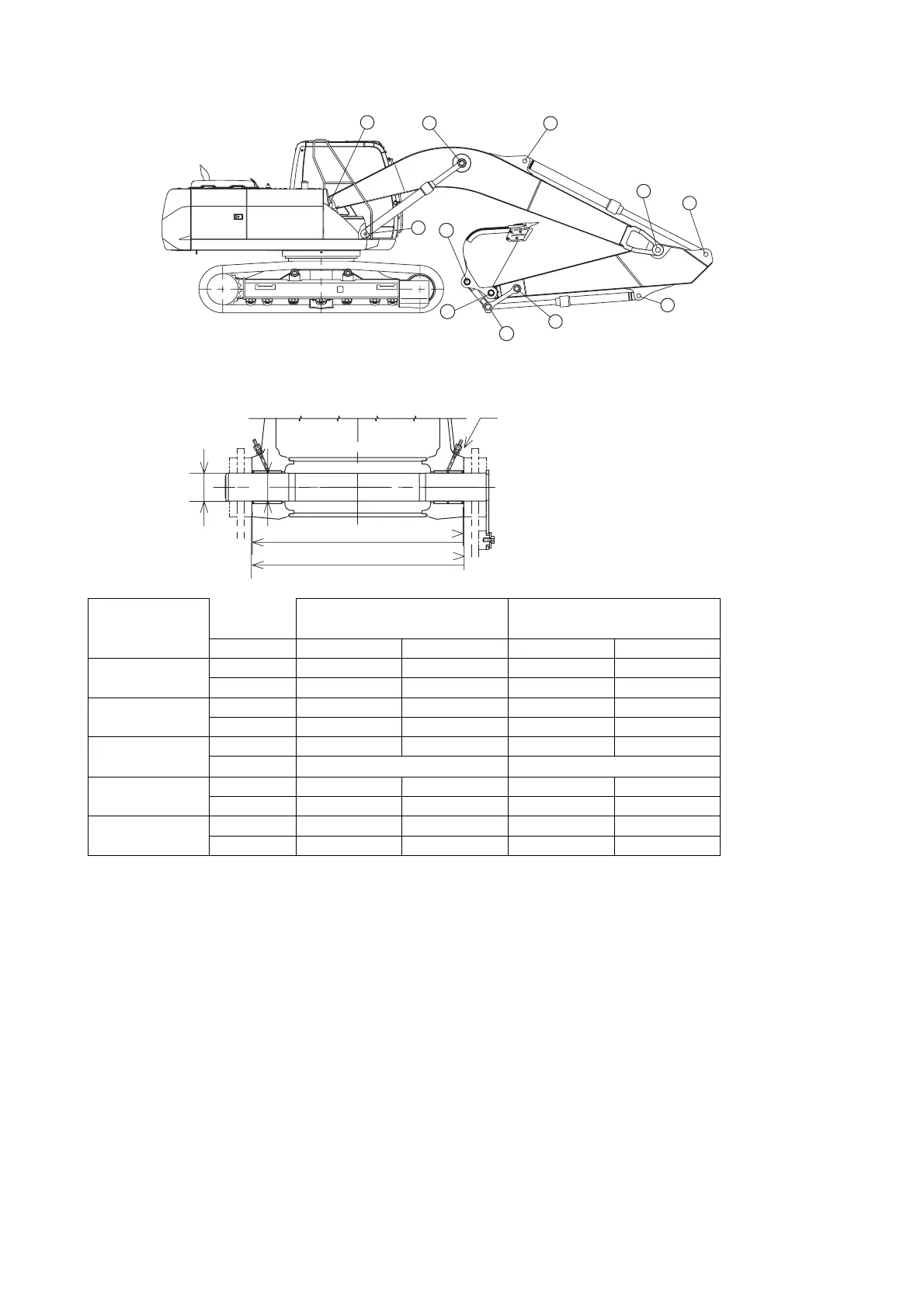

DIMENSIONS AND WEAR LIMITS OF ATTACHEMENT MOBILE JOINTS
1. Boom foot/Frame
Mark
Dimension
CX210B-CX230B
Dimension
CX240B
mm in mm in
a (frame)
Standard 684 26.93 703.5 27.70
Limit 692 27.24 711.5 28.01
b (boom)
Standard 681.5 26.83 706 27.80
Limit 679.5 26.75 704 27.72
c (a - b)
(clearance)
Standard 0.5 to 3 0.02 to 0.12 2.5 to 3 0.10 to 0.12
Limit Shim adjustment Shim adjustment
Ø d (shaft)
Standard 90 3.54 100 3.94
Limit 893.50993.90
Ø e (bushing)
Standard 90 3.54 100 3.94
Limit 91.5 3.60 101.5 4.00
10
11
3
6
4
9
2
8
1
5
7
RI14001-006Ea
a
b
c
d
e
RI14001-006Eb
