INTRODUCTION

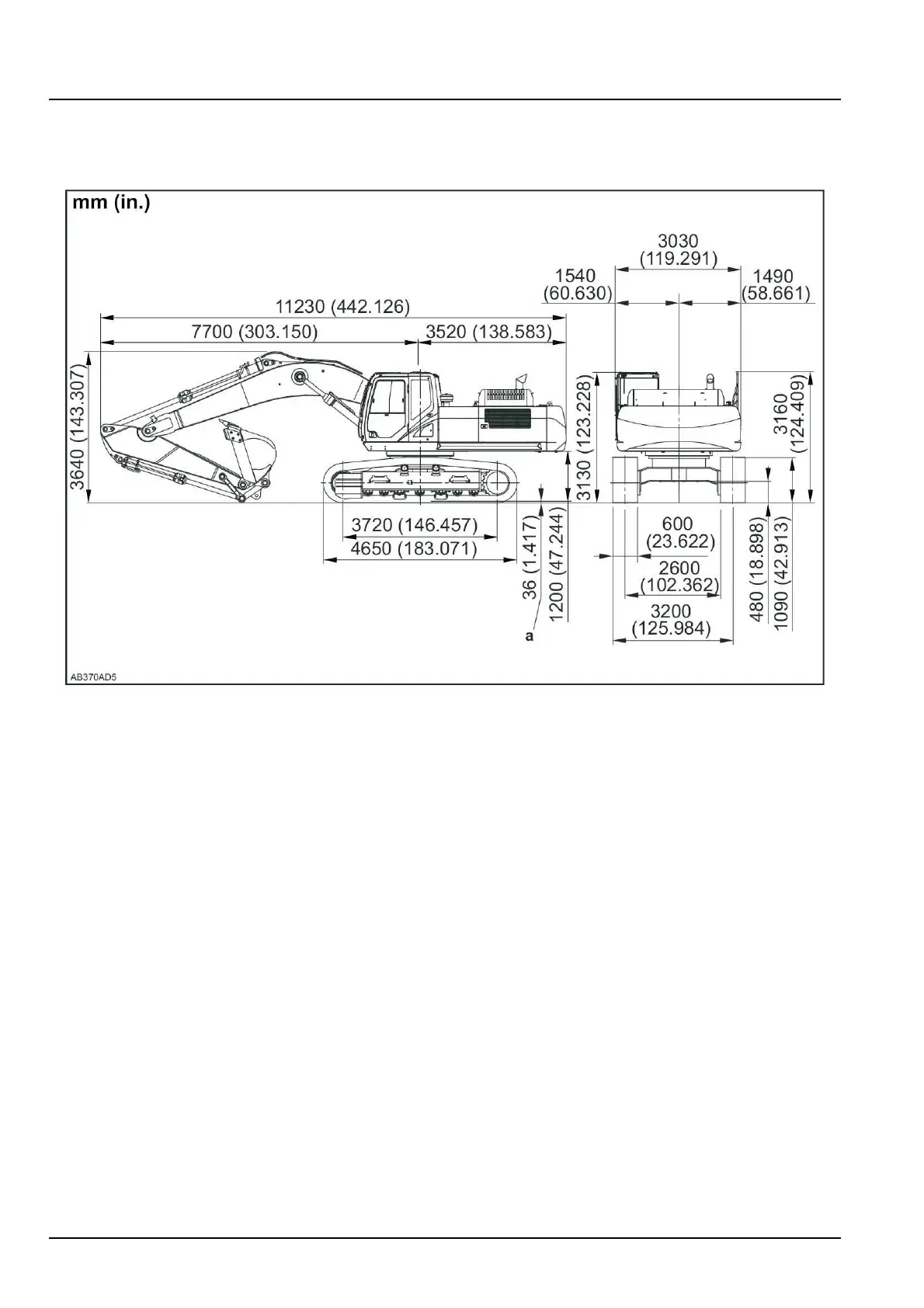

Shortarm[2.63m(8.6286ft)]
NOTE:Numbersaresubjecttochangewithoutnoticeduetodesignchangeorotherreason.
Thediagramsgivevaluesthatincludetheshoelugheight“a”[36mm(1.417in)].
AB370AD52
NOTE:Allthedimensionsingureareinmm(in).
4802442623/05/2016
