Case CX350C - Dimension

INTRODUCTION
Dimension

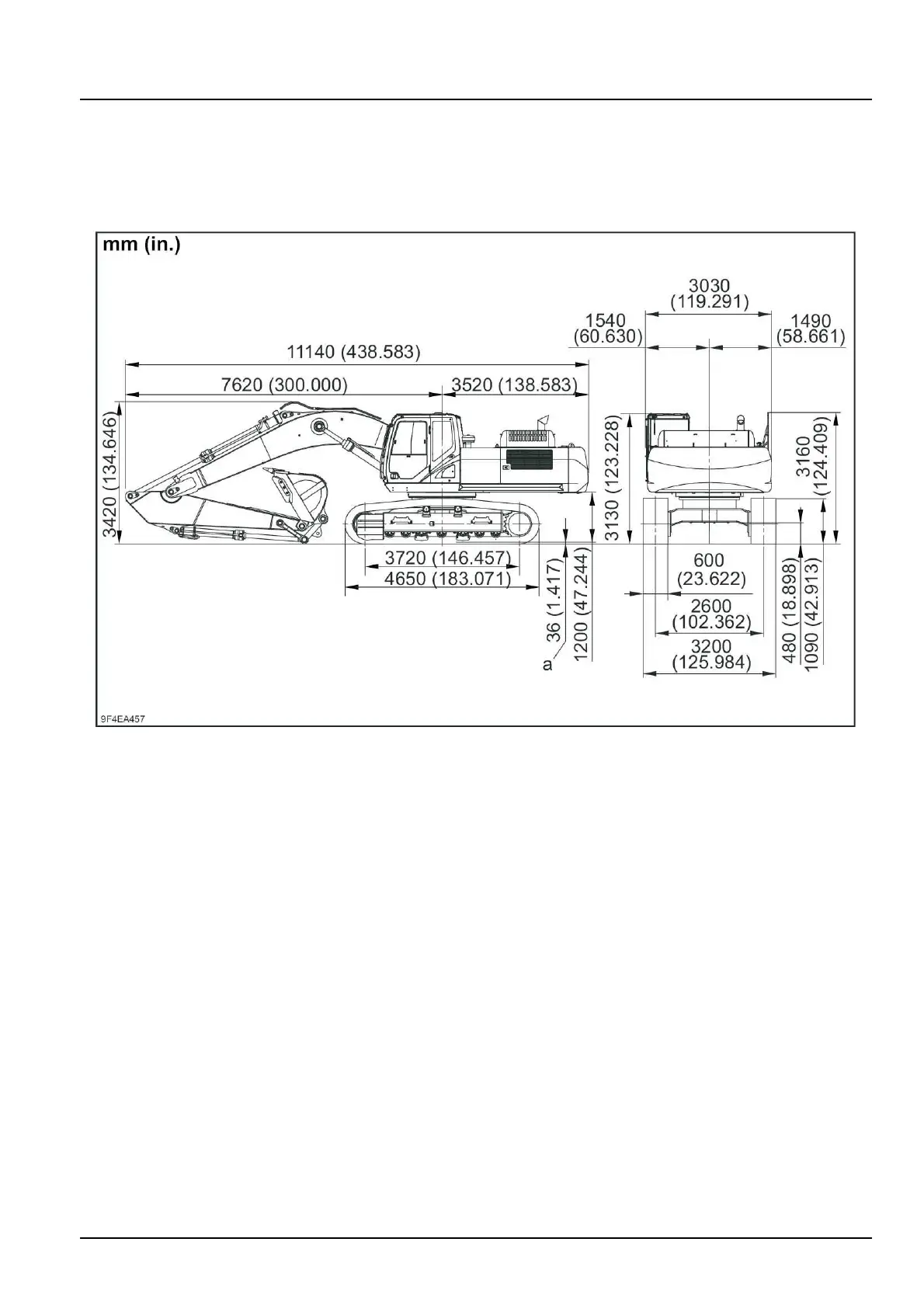

Standardarm[3.25m(10.6627ft)]
NOTE:Numbersaresubjecttochangewithoutnoticeduetodesignchangeorotherreason.
Thediagramsgivevaluesthatincludetheshoelugheight“a”[36mm(1.417in)].
9F4EA4571
NOTE:Allthedimensionsingureareinmm(in).
