INTRODUCTION

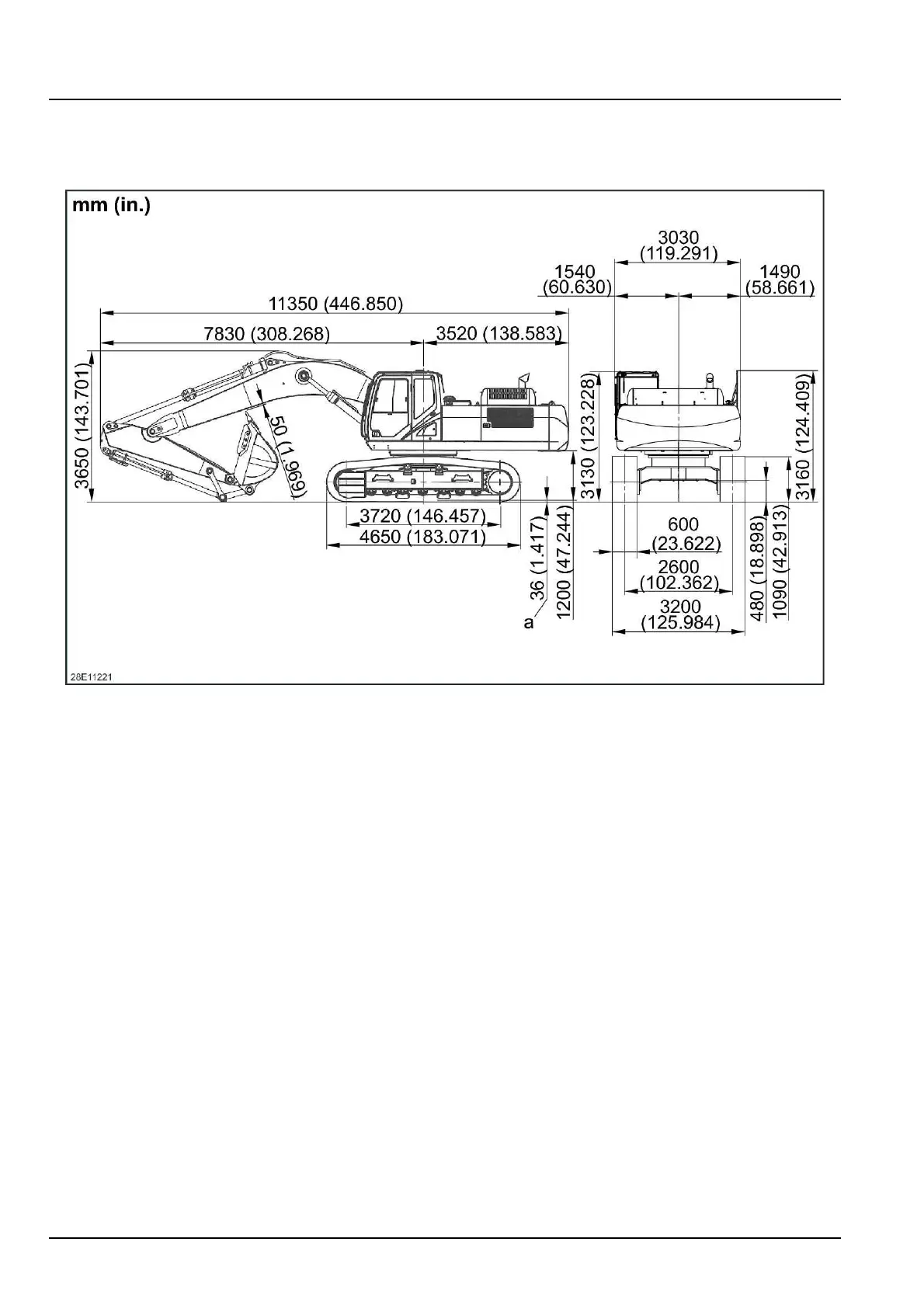

Ultra-shortArm[2.21m(7.2507ft)]
NOTE:Numbersaresubjecttochangewithoutnoticeduetodesignchangeorotherreason.
Thediagramsgivevaluesthatincludetheshoelugheight“a”[36mm(1.417in)].
28E112214
NOTE:Allthedimensionsingureareinmm(in).
4802442623/05/2016
