INTRODUCTION

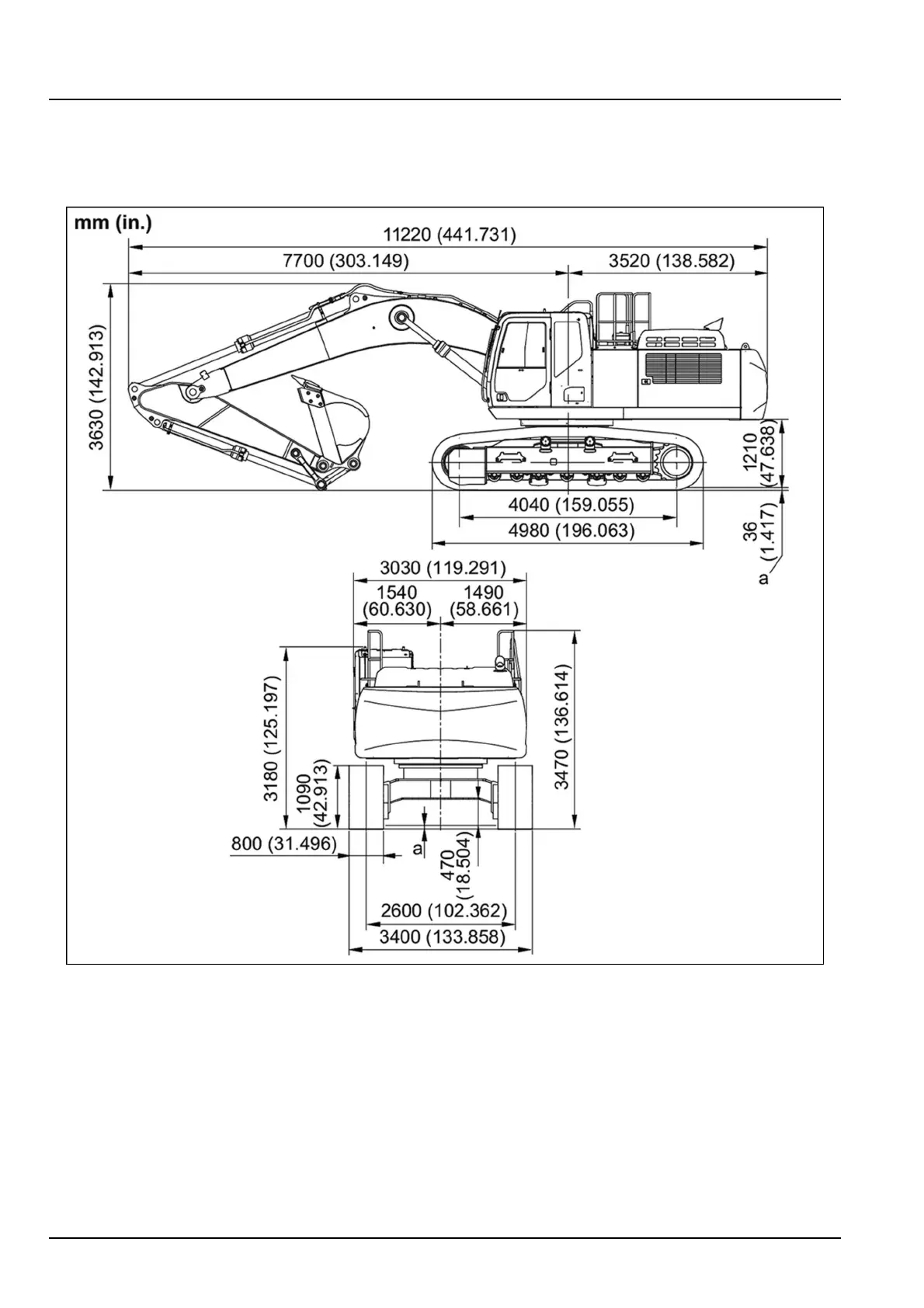

Shortarm[2.63m(8.63ft)]

NOTE:Thevaluesusedinthisdocumentaresubjecttochangewithoutnoticeduetoadesignchangeorotherrea-

sons.

Thevaluesindicatedinthediagramincludetheshoelugheight(a)[36mm(1.417in)].

SMPH15CEX0432GA2

4784302602/03/2015
