INTRODUCTION

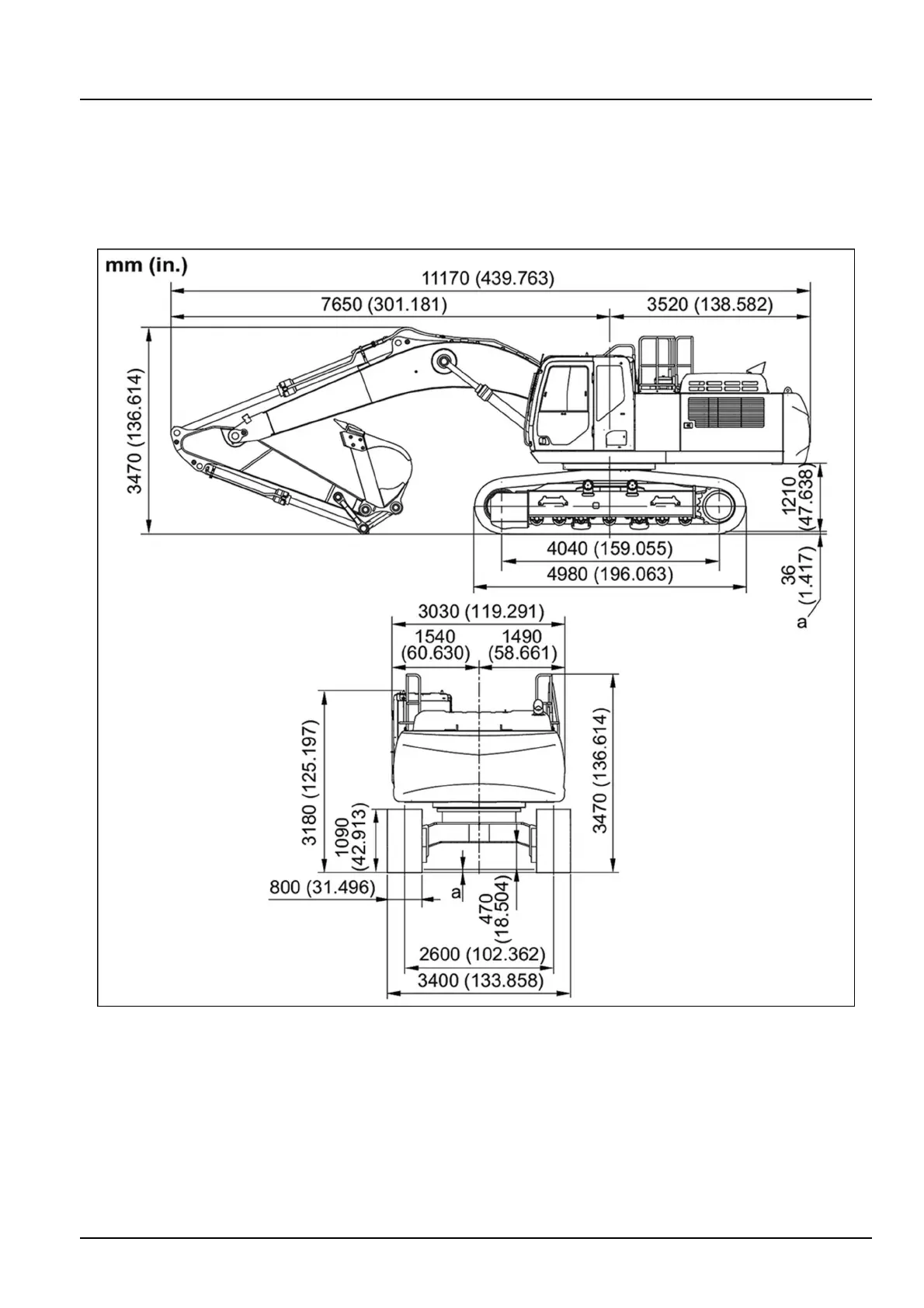

Dimension

Standardarm[3.25m(10.66ft)]

NOTE:Thevaluesusedinthisdocumentaresubjecttochangewithoutnoticeduetoadesignchangeorotherrea-

sons.

Thevaluesindicatedinthediagramincludetheshoelugheight(a)[36mm(1.417in)].

SMPH15CEX0431GA1

4784302602/03/2015

33
