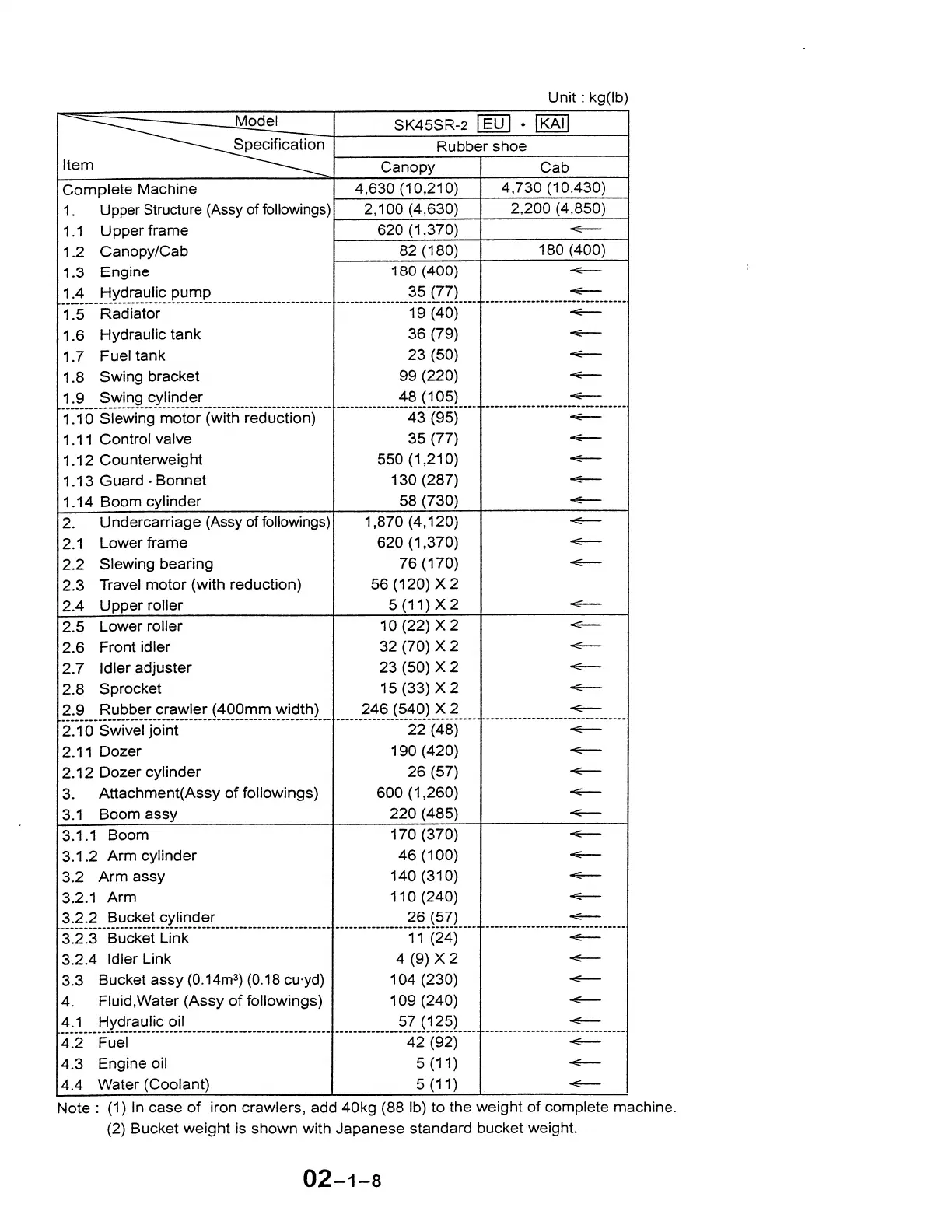

Unit : kg(lb)
Complete Machine 4,630 (10,210) 4,730 (10,430)
1. Upper Structure (Assy of followings) 2,100 (4,630) 2,200 (4,850)
1.1 Upper frame 620 (1,370)
-E--
1.2 Canopy/Cab 82 (180) 180 (400)
1.3 Engine 180 (400)
-E--
-~:~---Hydraulic _pump __________________________________________ 35 _(77) ____ -------------------~-----
1.5 Radiator 19 (40)
-E--
1.6 Hydraulic tank 36 (79)
-E--
1. 7 Fuel tank 23 (50) --
1.8 Swing bracket 99 (220) --
-~:~---Swing cylinder _________________________________________ 48 _ ( 105) ____ -------------------~-----
1.10 Slewing motor (with reduction) 43 (95)
-E--
1.11 Control valve 35 (77)
-E--
1.12 Counterweight 550 (1,210)
-E--
1.13 Guard • Bonnet 130 (287)
-E--
1.14 Boom cylinder 58 (730)
-E--
2. Undercarriage (Assy of followings) 1,870 (4,120)
-E--
2.1 Lower frame 620 (1,370)
-E--
2.2 Slewing bearing 76 (170)
-E--
2.3 Travel motor (with reduction) 56 (120) X 2
2.4 Upper roller 5 (11) X 2
-E--
2.5 Lower roller 10 (22) X 2
-E--
2.6 Front idler 32 (70) X 2
-E--
2. 7 Idler adjuster 23 (50) X 2
-E--
2.8 Sprocket 15 (33) X 2
-E--
3:~---
Rubber crawler_(400mm_width) _______ 246 (540) X_2 ____ -------------------~-----
2.10 Swivel joint 22 (48)
-E--
2.11 Dozer 190 (420) -
2.12 Dozer cylinder 26 (57)
-E--
3. Attachment(Assy of followings) 600 (1,260)
-E--
3.1 Boom assy 220 (485) --
3.1.1 Boom 170 (370)
-E--
3.1.2 Arm cylinder 46 ( 100)
-E--
3.2 Arm assy 140 (310)
-E--
3.2.1 Arm 110 (240)
-E--
3.2.2 __ Bucket cylinder _________________________________________ 26 _( 57) ____ -------------------~-----
3.2.3 Bucket Link 11 (24)
-E--
3.2.4 Idler Link 4 (9) X 2
-E--
3.3 Bucket assy (0.14m
3
)
(0.18 cu·yd) 104 (230)
-E--
4. Fluid,Water (Assy of followings) 109 (240) ---
~:-~---Hydrau lie_ oil _____________________________________________ 57 _ ( 125) ____ -------------------~-----
4 .2 Fuel 42 (92)
-E--
4.3 Engine oil 5 (11)
-E--
4.4 Water (Coolant) 5 (11) -
Note : (1) In case of iron crawlers, add 40kg (88 lb) to the weight of complete machine.
(2) Bucket weight is shown with Japanese standard bucket weight.
