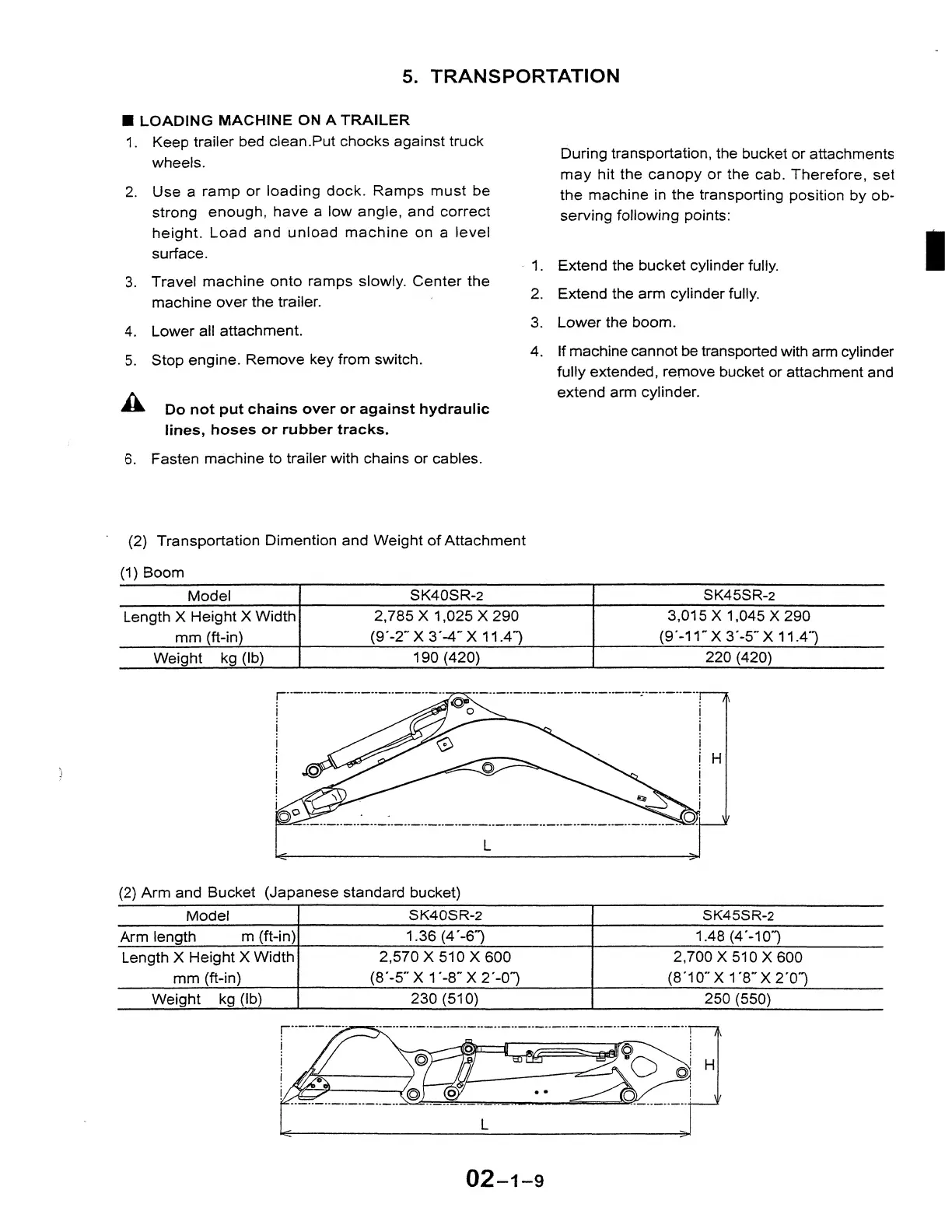

5. TRANSPORTATION
■
LOADING MACHINE ON A TRAILER
1. Keep trailer bed clean.Put chocks against truck
wheels.
2. Use a ramp or loading dock. Ramps must be
strong enough, have a low angle, and correct
height. Load and unload machine on a level
surface.
During transportation, the bucket or attachments
may hit the canopy or the cab. Therefore, set
the machine in the transporting position by ob-
serving following points:
· 1. Extend the bucket cylinder fully.
3. Travel machine onto ramps slowly. Center the
machine over the trailer.
4. Lower all attachment.
5. Stop engine. Remove key from switch.
A
Do not put chains over or against hydraulic
lines, hoses or rubber tracks.
6. Fasten machine to trailer with chains or cables.
(2) Transportation Dimention and Weight of Attachment
(1) Boom
Model
SK40SR-2
Length X Height X Width
2,785 X 1,025 X 290
mm (ft-in)
(9'-2" X 3·-4- X 11.41
Weight
kg (lb)
190 (420)
2. Extend the arm cylinder fully.
3. Lower the boom.
4. If machine cannot be transported with arm cylinder
fully extended, remove bucket or attachment and
extend arm cylinder.
SK45SR-2
3,015 X 1,045 X 290
(9'-11"X3'-5"X 11.41
220 (420)
---·-··-··-··-··-··-··-··-·
H
L
(2) Arm and Bucket (Japanese standard bucket)
Model
SK40SR-2
SK45SR-2
Arm length
m (ft-in) 1.36 (4'-61 1.48 (4'-101
Length X Height X Width
2,570 X 510 X 600 2,700 X 510 X 600
mm (ft-in)
(8'-5" X 1 '-8" X 2'-01
(a·10-x 1·a-x2·01
Weight
kg (lb)
230 (510)
250 (550)
H
02-1-9
I
