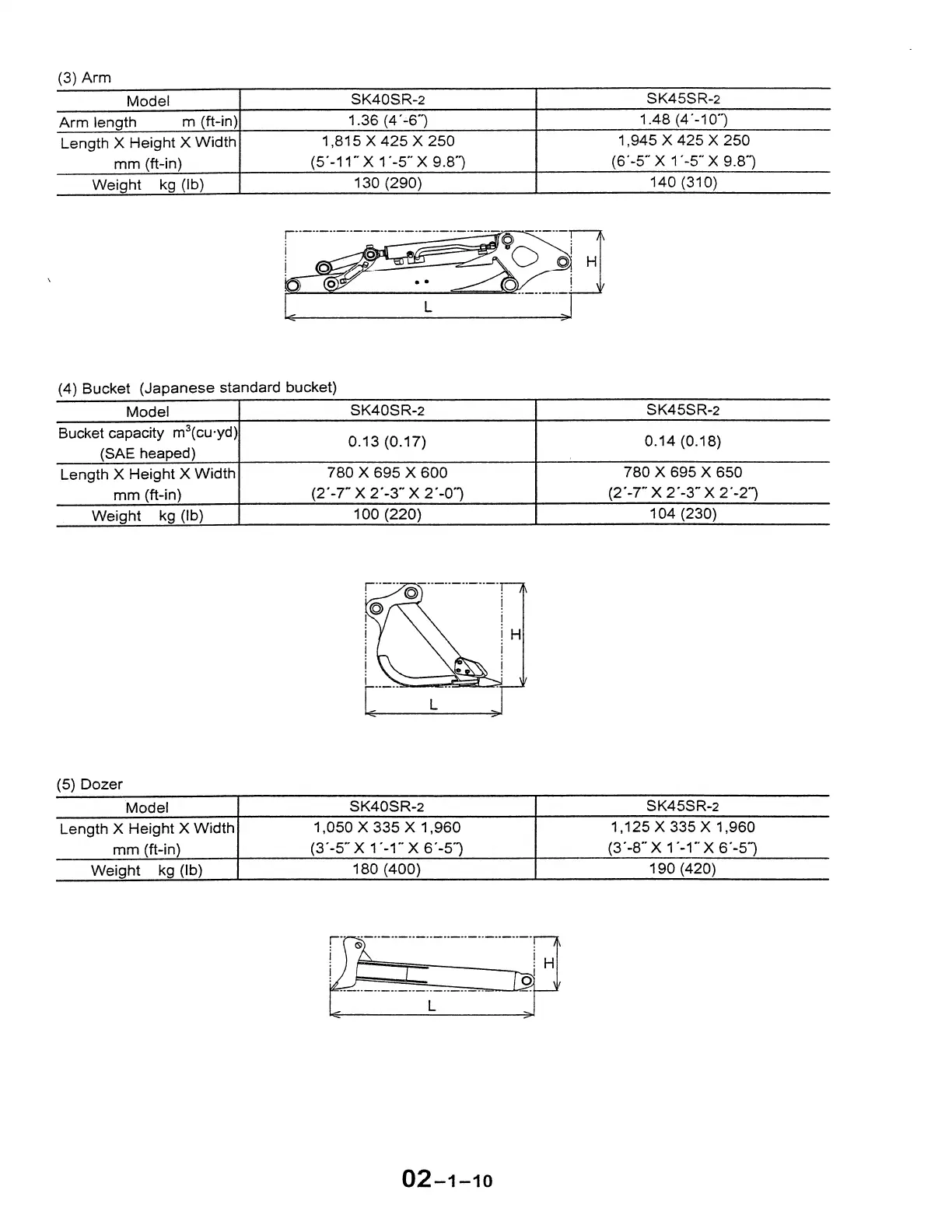

(3) Arm
Model
SK40SR-2
SK45SR-2
Arm length
m (ft-in)
1.36 (4'-'-61
1.48 (4" -1 0")
Length X Height X Width
1 ,815 X 425 X 250 1,945 X 425 X 250
mm (ft-in)
(5'-11"X 1'-5"X 9.81
(6'-5" X 1 ·-5·· X 9.81
Weight
kg (lb)
130 (290) 140 (310)
(4) Bucket (Japanese standard bucket)
Model
SK40SR-2 SK45SR-2
Bucket capacity m
3
(cu·yd)
0.13 (0.17) 0.14 (0.18)
(SAE heaped)
Length X Height X Width
780 X 695 X 600 780 X 695 X 650
mm (ft-in)
(2·-r
X 2'-3" X 2·-0·1
,2·-r x
2·_3 ..
x
2·-z1
Weight
kg (lb)
100 (220) 104 (230)
H
(5) Dozer
Model
SK40SR-2
SK45SR-2
Length X Height X Width
1,050 X 335 X 1,960
1,125 X 335 X 1,960
mm (ft-in)
(3"-5" X 1 ·-1 .. X 6"-51
(3. -8" X 1 . -1" X 6. -51
Weight
kg (lb)
180 (400)
190 (420)
