Case JX80 - Engine Removal - Electrical Components; Fusebox and Oil Pressure Switch Removal; Coolant Sender and Solenoid Sender Connections

SECTION 10 -- ENGINE -- CHAPTER 1 13
84176554 -- 03--2008

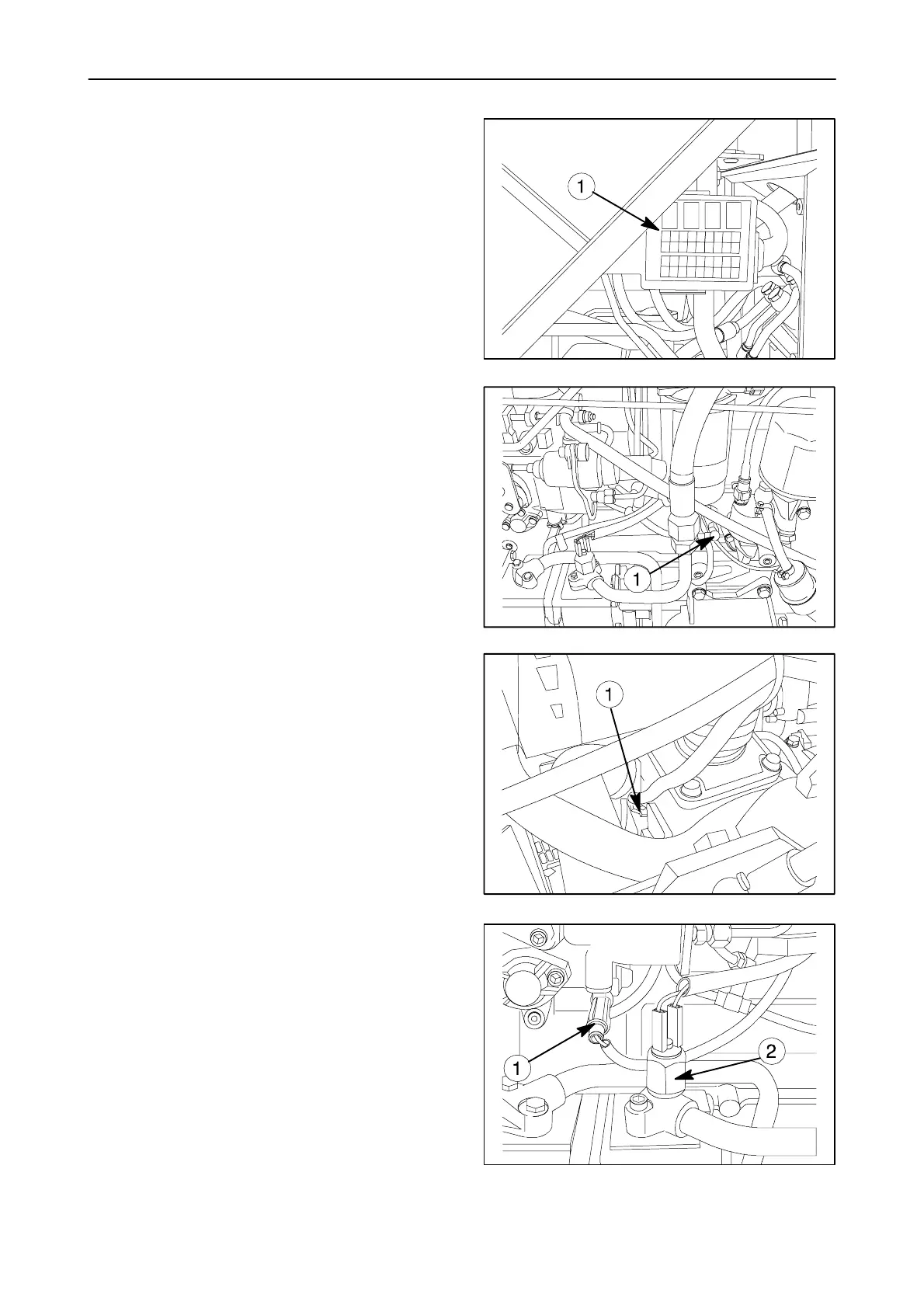

26. Remove the fusebox (1) from the bonnet
support.
24
27. Remove the electrical oil pressure switch (1).
25
28. Remove the electrical connections of coolant
temperature sender (1).
26
29. Remove the electrical connection of pump
cut--out solenoid sender (1) and hydrostatic
steering pump oil pressure switch (2).
27
