Case JX80 - Engine Removal - Control and Charging Systems; Throttle Control and Starter Connections; Alternator Connections

14 SECTION 10 -- ENGINE -- CHAPTER 1
84176554 -- 03--2008

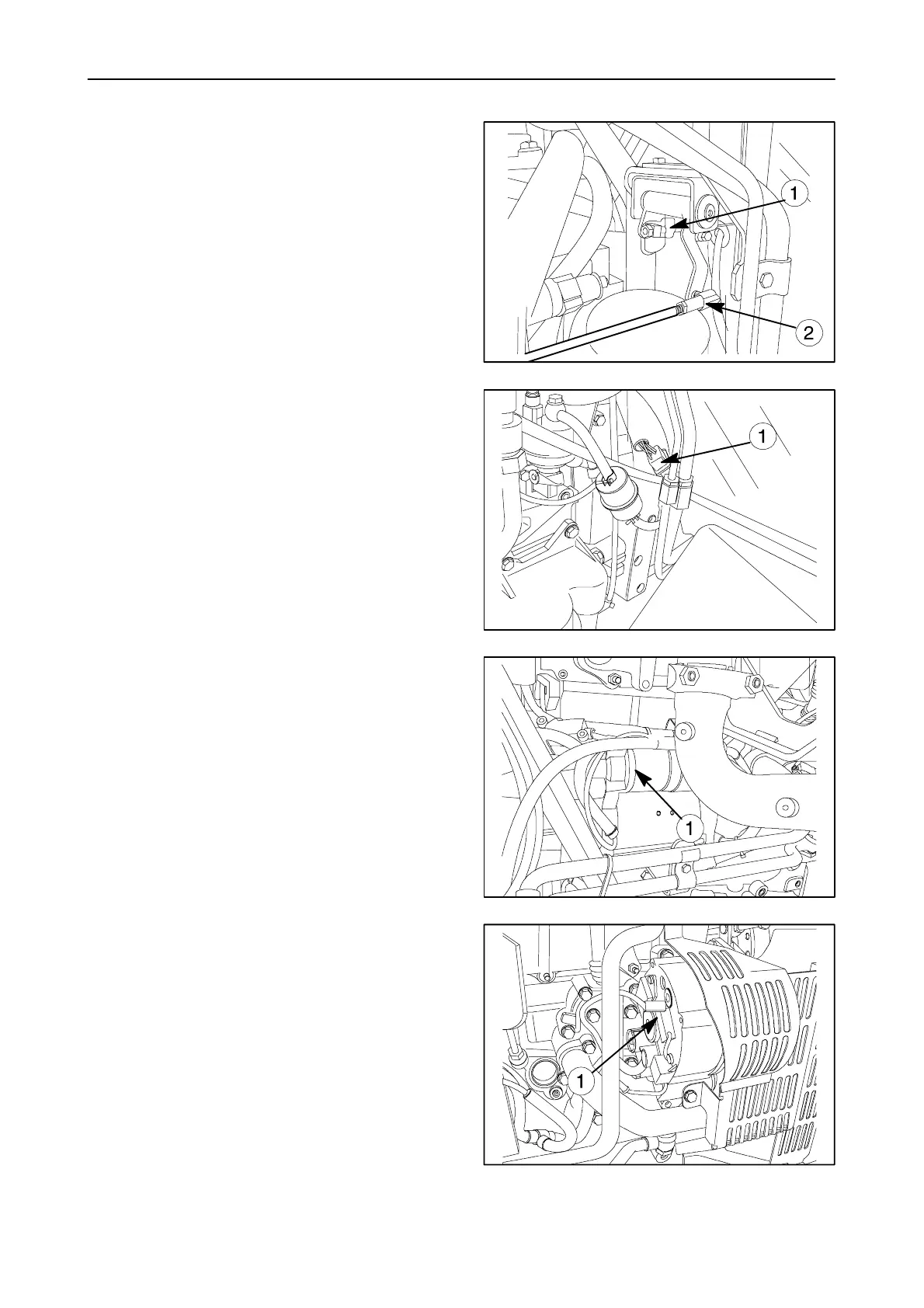

30. Remove the retaining retaining clips (1) and
detach the flexible cables governing the hand
throttle and pedal throttle.
31. Remove the retaining clip (2) and detach the
throttle control tie--rod connected to the injection
pump.
28
32. Disconnect the electrical connection (1) between
the cab and the engine.
29
33. Disconnect the electrical connections from
starter motor (1).
30
34. Disconnect the electrical connections from
alternator (1).
31
